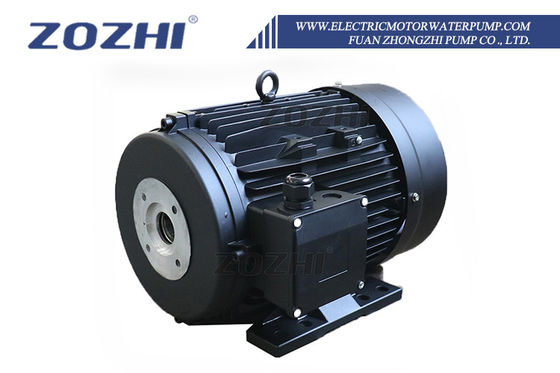

ZOZHI 5.5kW 3 Phase AC Asynchronous Motor IP54 Protection Flange Mount for High Pressure Water Pump
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 5.5kW 3 phase AC asynchronous motor,flange mount hollow shaft motor,IP54 protection high pressure water pump motor |
||
Product Description
ZOZHI 5.5kW 3 Phase AC Asynchronous Motor
Energy-saving three-phase waterproof high efficiency AC induction motor with IP54 protection and flange mount for high pressure water pumps.
Product Specifications
- HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
- Available in 2-pole, 4-pole, and 6-pole configurations
- Supply Voltage: 220V/380V
- Power: 30Hp/22kW
- RPM: 1400
- Female Shaft: 24mm Outer Diameter
- Mounting Dimensions: M/M 87/61mm
- B34 Face Flange
- IEC Frame: 160
- Material: Aluminum Housing
Application
The direct coupling between the motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. Our wide range of flanges and shafts are suitable for direct coupling with most pumps on the market.
Key Advantages
- High-Efficiency Motor: High-standard materials with 100% output performance
- Proven Reliability: Excellent customer feedback and satisfaction
- Customization Options: OEM & ODM services available
- Direct Manufacturer: 24-hour online technical support
- Extended Warranty: 3 years comprehensive coverage
- Fast Delivery: 7-day shipment for stock materials
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE | |
|---|---|---|---|---|---|---|---|
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE | FRAME DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| M | N | S | A | AC | B | H | HC | L | K | |
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Certification
3-year warranty from shipped on board date. During the guarantee period, we provide free replacement for problems caused by production quality or materials, excluding damage from incorrect operation. Cost-effective spare parts available after warranty expiration.
Frequently Asked Questions
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are the manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide OEM services for custom branding.
How can I get the sample?
We typically recommend express shipping for samples.
What's the warranty period?
3 years from the shipped on board date.
What are your terms of payment?
30% advance payment, balance due before shipment.
