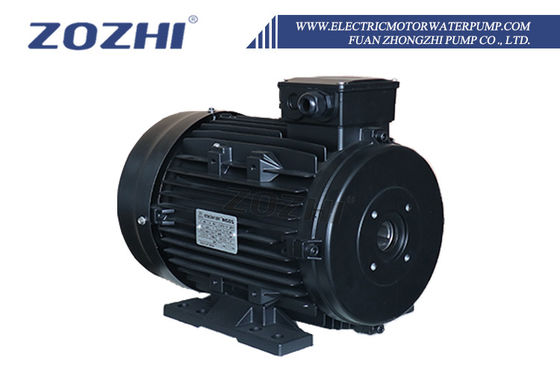

5.5kW 3 Phase 380V/440V Flange Asynchronous Motor for Commercial High Pressure Water Supply Pump
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 5.5kW 3 phase flange motor,380V asynchronous motor for water pump,hollow shaft motor with high pressure |
||
Product Description
5.5kW 3 Phase 380V/440V Flange Asynchronous Motor
Designed for commercial high pressure water supply pumps and agricultural irrigation systems.
Product Overview
HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor engineered for direct coupling with high-pressure pumps. Provides reliable and cost-efficient solutions for pressure cleaners and washing plants.
Technical Specifications
Supply Voltage: 220V/380V
Power Rating: 30HP/22kW
Speed: 1400 RPM
Shaft: Female 24mm Outer Diameter
Mounting: M/M: 87/61mm
Flange: B34 Face Flange
IEC Frame: 160
Material: Aluminum
Application
The direct coupling between motor and high-pressure pump is ideal for pressure cleaners and washing plants. This configuration significantly reduces overall machine size while providing reliable, cost-efficient operation. Our comprehensive range of flanges and shafts ensures compatibility with most pumps available on the market.
Key Advantages
- High-Efficiency Motor - Premium materials ensuring 100% output performance
- Proven Reliability - Consistently positive customer feedback
- Custom Solutions - Comprehensive OEM & ODM services available
- Direct Manufacturer - 24-hour online technical support
- Extended Warranty - 3-year coverage with minimal service requirements
- Rapid Delivery - 7-day shipment for stock materials
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER K.W. | HP | RPM | COS φ | EFF.% | VOLT V | AMPERE A |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FRAME N | S | A | AC | B | H | HC | L | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Support
3-year warranty from shipped on board date. During the warranty period, we provide free replacement of defective parts caused by production or material quality issues. Damage resulting from incorrect customer operation is excluded. After warranty expiration, we continue to provide cost-effective spare parts for maintenance.
Quality Certification
Frequently Asked Questions
Q: What's the MOQ?
A: A trial sample order is acceptable.
Q: Are you a factory or trading company?
A: We are a manufacturer with over 15 years of motor production experience.
Q: Can you accept using our logo?
A: Yes, we provide comprehensive OEM services.
Q: How can I get the sample?
A: We typically recommend express delivery for samples.
Q: What's the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance due before shipment.
