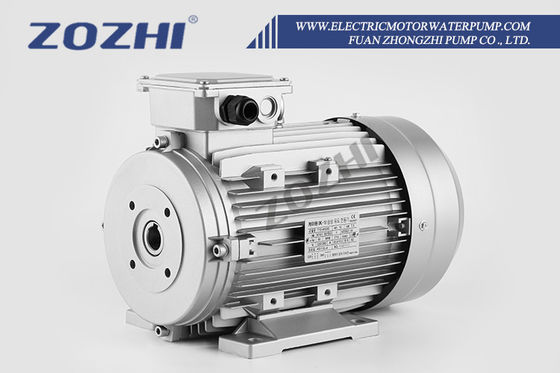

5.5kW IE2 High Efficiency 3 Phase Flange Mount Asynchronous Motor 380V/440V for Pressure Washer
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 5.5kW 3 phase flange mount motor,IE2 high efficiency asynchronous motor,380V pressure washer hollow shaft motor |
||
Product Description
Product Overview
5.5kW IE2 High Efficiency 3 Phase Flange Mount Asynchronous Motor 380V/440V for Pressure Washer
Technical Specifications
Power Rating:
5.5kW (30HP/22kW)
Supply Voltage:
220V/380V
Speed:
1400 RPM
Shaft Type:
Hollow Shaft, 24mm Outer Diameter
Mounting:
B34 Face Flange
IEC Frame:
160
Material:
Aluminum
Application
The direct coupling between the motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. Our wide range of flanges and shafts ensures compatibility with most pumps on the market.
Key Advantages
- High-Efficiency IE2 Motor with premium materials for 100% output
- Proven reliability with excellent customer feedback
- Custom OEM & ODM services available
- Direct manufacturer with 24-hour online support
- 3-year comprehensive warranty
- 7-day shipment for stock materials
Related Products
Hollow Shaft Three Phase Motor
Hollow Shaft Single Phase Motor
Solid Shaft Three Phase Motor
Solid Shaft Single Phase Motor
Solid Shaft AC Induction Motor
Electric Centrifugal Switch
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER K.W. | POWER HP | RPM | COS φ P.F. | EFF.% | VOLT V | AMPERE A |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | FRAME A | FRAME AC | FRAME B | FRAME H | FRAME HC | FRAME L | FRAME K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty
3-year guarantee from shipped on board date. During the guarantee period, we provide free replacement parts for problems caused by production or material quality issues, excluding damage from incorrect customer operation. After expiration, we continue to provide cost-effective spare parts for maintenance.
Certification
Frequently Asked Questions
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are a manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide OEM services.
How can I get the sample?
We typically suggest express delivery for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
