High Precision Hollow Shaft Motor7.5kw for High Pressure Machine
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 7.5kw hollow shaft motor,high precision hollow shaft motor,hollow shaft motor for high pressure machine |
||
Product Description

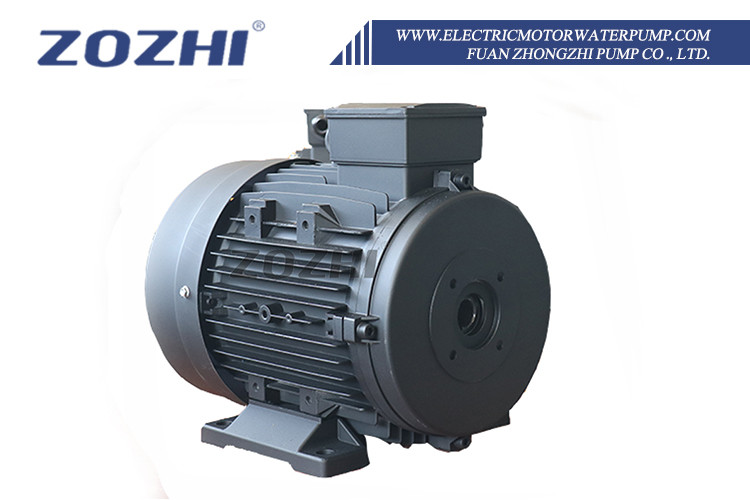

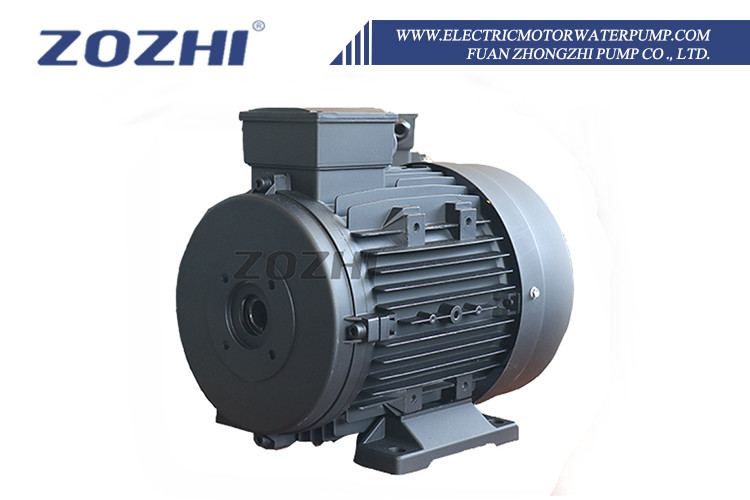

High Precision Hollow Shaft Motor 7.5kW for High Pressure Machine
High Efficiency 7.5kW 10Hp Three-Phase Hollow Shaft Motor featuring IP55 waterproof rating, aluminum housing, and flange mount design. Compatible with 50/60Hz power supply and designed for direct pump coupling.
Product Specifications
HS Series Asynchronous Electric Motor
Available in 2-pole, 4-pole, and 6-pole configurations
Supply Voltage: 220V/380V
Power: 30Hp/22kW
RPM: 1400
Female Shaft: 24mm Outer Diameter
M/M: 87/61mm
B34 Face Flange
IEC Frame: 160
Material: Aluminum Housing
Application
The direct coupling between the motor and high-pressure pump makes this ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size while providing a reliable and cost-efficient solution. Our wide range of flanges and shafts are suitable for direct coupling with most pumps on the market today.
Key Advantages
High-Efficiency Motor - Premium materials ensuring 100% output performance
Proven Reliability - Consistently receives positive customer feedback
OEM & ODM Services - Full customization available
Direct Manufacturer - 24-hour online support
3-Year Warranty - Minimal after-service requirements
7-Day Shipment - Stock materials ready for quick delivery
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data - Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE | |
|---|---|---|---|---|---|---|---|
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE | FRAME DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| M | N | S | A | AC | B | H | HC | L | K | |
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
3-Year Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Quality Certification
Frequently Asked Questions
Q: What's the MOQ?
A: A trial sample order is ok.
Q: Are you a factory or trading company?
A: Manufacturer. Focus on motors for more than 15 years.
Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
Q: How can I get the sample?
A: Usually, we suggest express for samples.
Q: What's the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
