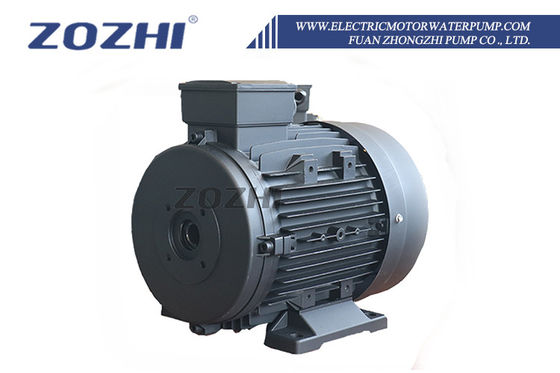

Hollow Shaft Motor suitable for in automotive assembly lines and industrial robotics requiring high reliability
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | Hollow Shaft Motor for automotive assembly,Hollow Shaft Motor for industrial robotics,Hollow Shaft Motor with high reliability |
||
Product Description
ZOZHI Energy-Saving Three-Phase Waterproof High Efficiency 7.5kW AC Induction Motor
This ZOZHI three-phase IE2 flange motor, 11kW 4P 1460RPM, is designed for high-pressure pumps. It features a 7.5kW 10Hp hollow shaft, IP55 waterproof rating, aluminum housing, and flange mount for 50/60Hz applications. Ideal for your sample evaluation.
Product Specifications
HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
Available in 2-pole, 4-pole, and 6-pole configurations
Supply Voltage: 220V/380V
Power: 30Hp/22kW
RPM: 1400
Female Shaft: 24mm Outer Diameter
M/M: 87/61mm
B34 Face Flange
IEC Frame: 160
Material: Aluminum Housing
Application
The direct coupling between the motor and high-pressure pump makes this ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size while providing a reliable and cost-efficient solution. We offer a wide range of flanges and shafts suitable for direct coupling with most pumps on the market.
Key Advantages
High-Efficiency Motor
High-standard materials with 100% power output
Proven Performance
Consistently receives positive customer feedback
OEM & ODM Services
Full customization options available
Direct Manufacturer
24-hour online technical support
3-Year Warranty
Minimal after-service requirements
Fast Delivery
7-day shipment with stock materials
Related Products
Manufacturing Facility
Customer Feedback
Technical Data - Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE | |
|---|---|---|---|---|---|---|---|
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE | FRAME DIMENSIONS |
|---|---|---|
| 90L | 75/87 | 90/61 |
| 100L | 75/87 | 90/61 |
| 112M | 75/87 | 90/61 |
| 132S | 87 | 61 |
| 132M | 87 | 61 |
| 160M | 87 | 61 |
3-Year Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Quality Certification
Request for Quotation
What's the MOQ?
A trial sample order is ok.
Are you a factory or trading company?
Manufacturer. Focus on motors for more than 15 years.
Can you accept using our logo?
Yes, we can do OEM for you.
How can I get the sample?
Usually, we suggest express for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
