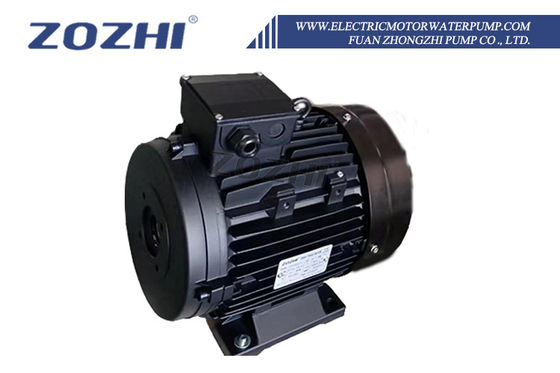

High torque Hollow Shaft Motor optimized for in printing presses and CNC machines requiring consistent speed regulation
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | High torque Hollow Shaft Motor,Hollow Shaft Motor for printing presses,CNC machine Hollow Shaft Motor |
||
Product Description
High Torque Hollow Shaft Motor
Optimized for printing presses and CNC machines requiring consistent speed regulation
Product Overview
ZOZHI Energy-Saving Three-Phase Waterproof High Efficiency 7.5kW AC Induction Motor. ZOZHI Three-Phase IE2 Efficiency Flange Motor 11KW 4P 1460RPM For High Pressure Pump. High Efficiency 7.5kW 10Hp Three-Phase Hollow Shaft Motor IP55 Waterproof Aluminum Housing Flange Mount 50/60Hz + Pump.
Product Specifications
- HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
- Available in 2-pole, 4-pole, and 6-pole configurations
- Supply: 220V/380V
- Power: 30Hp/22kW
- RPM: 1400
- Female Shaft: 24mm (Outer Diameter)
- M/M: 87/61mm
- B34 Face Flange
- IEC Frame: 160
- Material: Aluminum
Applications
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Key Advantages
- High-Efficiency Motor with 100% output using high-standard materials
- Popular motor with excellent customer feedback
- OEM & ODM customized services available
- Direct manufacturer with 24-hour online support
- 3-year comprehensive warranty
- 7-day shipment with stock materials
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE |
|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE | FRAME |
|---|---|---|
| 90L | 75/87 | 90/61 |
| 100L | 75/87 | 90/61 |
| 112M | 75/87 | 90/61 |
| 132S | 87 | 61 |
| 132M | 87 | 61 |
| 160M | 87 | 61 |
Warranty & Support
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Quality Certification
Frequently Asked Questions
What's the MOQ?
A trial sample order is ok.
Are you a factory or trading company?
Manufacturer. Focus on motors for more than 15 years.
Can you accept using our logo?
Yes, we can do OEM for you.
How can I get the sample?
Usually, we suggest express for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
