Energy Hollow Shaft Motor designed for continuous operation in industrial automation systems robotics and material handling
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | Hollow shaft motor for industrial automation,Energy hollow shaft motor robotics,Continuous operation hollow shaft motor |
||
Product Description

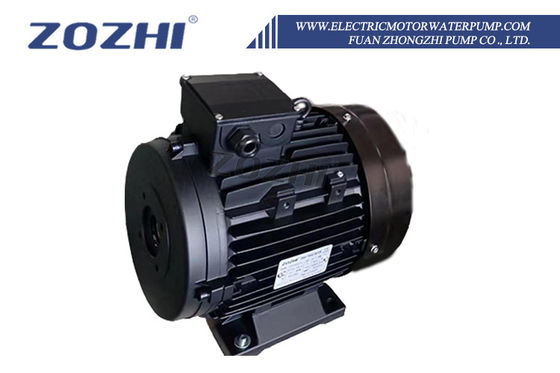

Energy Hollow Shaft Motor
Designed for continuous operation in industrial automation systems, robotics, and material handling applications.
Product Overview
ZOZHI Energy-Saving Three-Phase Waterproof High Efficiency 7.5kW AC Induction Motor. This Three-Phase IE2 Efficiency Flange Motor delivers 11KW 4P 1460RPM performance ideal for high-pressure pump applications.
Key Specifications
- HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
- Available in 2-pole, 4-pole, and 6-pole configurations
- Supply Voltage: 220V/380V
- Power: 30Hp/22kW
- RPM: 1400
- Female Shaft: 24mm Outer Diameter
- Mounting: M/M 87/61mm
- B34 Face Flange
- IEC Frame: 160
- Material: Aluminum Housing
Applications
The direct coupling between the motor and high-pressure pump makes this ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size while providing a reliable and cost-efficient solution. We offer a wide range of flanges and shafts suitable for direct coupling with most pumps on the market.
Product Advantages
- High-Efficiency Motor: High-standard materials with 100% output performance
- Popular Design: Consistently receives positive customer feedback
- OEM & ODM Services: Comprehensive customization options available
- Direct Manufacturer: 24-hour online technical support
- 3-Year Warranty: Minimal after-service requirements
- 7-Day Shipment: Stock materials ensure fast delivery
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Manufacturing Quality
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE | |
|---|---|---|---|---|---|---|---|
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
Installation Dimensions
| FRAME | FLANGE | FRAME | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| M | N | S | A | AC | B | H | HC | L | K | |
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Support
3-year guarantee from shipped on board date. During the guarantee period, we provide free replacement for easy-damaged spare parts for problems caused by production quality or raw materials, excluding damage from incorrect customer operation. After expiration, we continue to provide cost-effective spare parts for maintenance.
Quality Certification
Request for Quotation
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are a manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide comprehensive OEM services.
How can I get the sample?
We typically recommend express shipping for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
