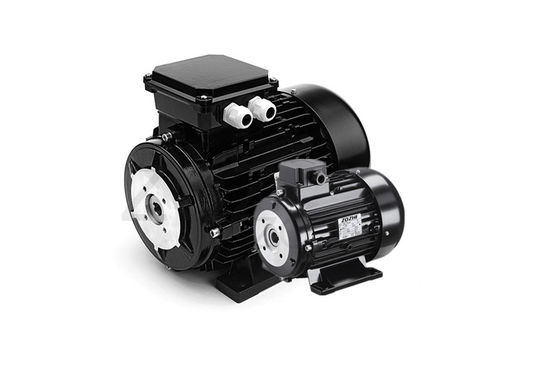

Energy Saving Hollow Shaft Motor Built for Continuous Operation and Minimal Maintenance in Industrial Environments
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | Energy Saving Hollow Shaft Motor,Hollow Shaft Motor for Industrial Environments,Continuous Operation Hollow Shaft Motor |
||
Product Description
Energy Saving Hollow Shaft Motor
Designed for continuous operation with minimal maintenance in demanding industrial environments.
Product Overview
ZOZHI 112M-4 Three-Phase Asynchronous Motor for Pump applications featuring 4kW power, 1500 RPM speed, 380V/440V voltage, and IE3 efficiency rating with flange mount and IP54/IP55 waterproof protection.
Available Models
- ZOZHI High Efficiency 3 Phase Hollow Shaft Waterproof Asynchronous Electric Motor 2KW
- ZOZHI 7.5kW Three-Phase Waterproof Industrial Motor for High Pressure Pump
- HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor in 2-pole, 4-pole, and 6-pole configurations
Key Specifications
- Supply Voltage: 220V/380V
- Power: 30HP/22kW
- Speed: 1400 RPM
- Female Shaft: 24mm Outer Diameter
- Flange Dimensions: M/M 87/61mm
- Mounting: B34 Face Flange
- IEC Frame: 160
- Material: Aluminum Construction
Application
The direct coupling between motor and high-pressure pump makes this ideal for pressure cleaners and washing plants. This configuration significantly reduces overall machine size while providing reliable and cost-efficient operation. Our comprehensive range of flanges and shafts ensures compatibility with most pumps available on the market.
Key Advantages
- High-Efficiency Design: Premium materials ensuring 100% power output
- Proven Reliability: Consistently positive customer feedback
- Custom Solutions: OEM & ODM services available
- Direct Manufacturer: 24-hour online technical support
- Extended Warranty: 3-year comprehensive coverage
- Fast Delivery: 7-day shipment for stock materials
Related Products
Hollow Shaft Motor - Three Phase
Hollow Shaft Motor - Single Phase
Solid Shaft Motor - 3 Phase
Solid Shaft Motor - Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data - Three-Phase Hollow Shaft Motor 400V 50Hz
| Frame | Power (kW) | Power (HP) | RPM | COS φ | Efficiency % | Voltage (V) | Ampere (A) |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| Frame | Flange M | Flange N | Flange S | Frame A | Frame AC | Frame B | Frame H | Frame HC | Frame L | Frame K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty Information
Comprehensive 3-year guarantee period starting from shipped on board date. During the guarantee period, we provide free replacement of easy-damaged spare parts for issues caused by production quality or raw materials. Exclusions apply to damage caused by incorrect customer operation. After warranty expiration, we continue to provide cost-effective spare parts for maintenance.
Quality Certifications
Frequently Asked Questions
What's the minimum order quantity?
Trial sample orders are acceptable.
Are you a factory or trading company?
We are the direct manufacturer with over 15 years of motor manufacturing expertise.
Can you accept using our logo?
Yes, we provide comprehensive OEM services.
How can I get a sample?
We typically recommend express shipping for sample orders.
What's the warranty period?
3 years from the shipped on board date.
What are your payment terms?
30% advance payment with balance due before shipment.
