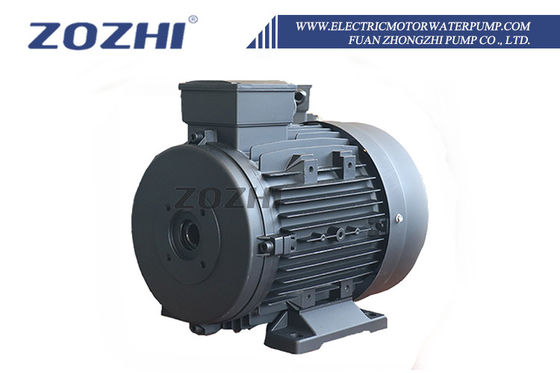

ZOZHI 100M-4 Three-Phase Asynchronous Motor for Pump 3kW 1500 RPM 380V/440V IE3 Efficiency Flange Mount Waterproof
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | three-phase asynchronous motor 3kW 380V,flange mount waterproof hollow shaft motor,IE3 efficiency pump motor 1500 RPM |
||
Product Description
ZOZHI 100M-4 Three-Phase Asynchronous Motor for Pump 3kW 1500 RPM 380V/440V IE3 Efficiency Flange Mount Waterproof
Product Overview
ZOZHI High Efficiency 3 Phase Hollow Shaft Waterproof Asynchronous Electric Motor 2KW. HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor available in 2-pole, 4-pole, and 6-pole configurations.
Key Specifications
- Supply: 220V/380V
- Power: 30HP/22kW
- RPM: 1400
- Female Shaft: 24mm (Outer Diameter)
- M/M: 87/61mm
- B34 Face Flange
- IEC Frame: 160
- Material: Aluminum
Application
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Advantages
- High-Efficiency Motor: High-standard material with 100% output
- Popular Motor: Get good feedback from customer
- OEM & ODM: Customized service
- Direct Manufacturer: 24 hours online service
- 3 Years Warranty: Almost without any after service
- 7 Days Shipment: Stock Material
Related Products
Hollow Shaft Motor - Three Phase
Hollow Shaft Motor - Single Phase
Solid Shaft Motor - 3 Phase
Solid Shaft Motor - Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Factory Overview
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER K.W. | POWER HP | RPM | COS φ | EFF.% | VOLT V | AMPERE A |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | FRAME A | FRAME AC | FRAME B | FRAME H | FRAME HC | FRAME L | FRAME K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
3 Years Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certification
Frequently Asked Questions
Q: What's the MOQ?
A: A trial sample order is ok.
Q: Are you a factory or trading company?
A: Manufacturer. Focus on motors for more than 15 years.
Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
Q: How can I get the sample?
A: Usually, we suggest express for samples.
Q: What's the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
