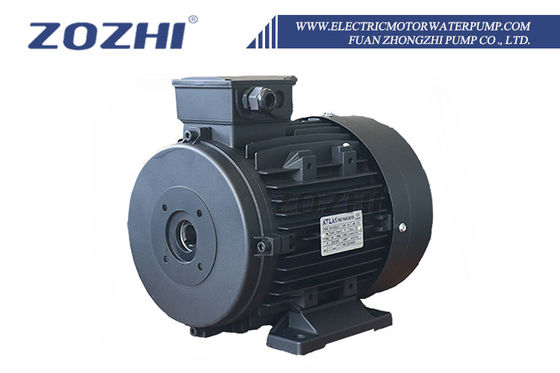

ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure

  • ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure
  • ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HS160L3-4
Minimum Order Quantity 1pc
Price USD550-USD700
Packaging Details Packed in veneer case
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Application Pressure Washer Machine
Power Range 22KW/30HP V.& Hz 220/380V 50Hz
Flange Size 87/61mm Hollow Shaft D. 24mm
Housing Die Cast Aluminum Insulation Class F Or H
Protection IP55 Or IP65 Bearing Two Bearings
Highlight

three-phase hollow shaft motor

,

waterproof hollow shaft motor

,

flange mount hollow shaft motor
Leave a Message
Product Description
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure
Product Overview

ZOZHI Three-Phase IE2 Efficiency Flange Motor 11KW 4P 1460RPM For High Pressure Pump. High Efficiency 7.5kW 10Hp Three-Phase Hollow Shaft Motor IP55 Waterproof Aluminum Housing Flange Mount 50/60Hz + Pump.

Product Specifications
  • HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
  • Available in 2-pole, 4-pole, and 6-pole configurations
  • Supply: 220V/380V
  • Power: 30Hp/22kW
  • RPM: 1400
  • Female Shaft: 24mm (Outer Diameter)
  • M/M: 87/61mm
  • B34 Face Flange
  • IEC Frame: 160
  • Material: Aluminum
Application

The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.

ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 0
Advantages
High-Efficiency Motor
High-standard material with 100% output
Popular Motor
Get good feedback from customer
OEM & ODM
Customized service
Direct Manufacturer
24 hours online service
3 Years Warranty
Almost without any after service
7 Days Shipment
Stock Material
Related Products
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 1
Hollow Shaft Motor Three Phase
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 2
Hollow Shaft Motor Single Phase
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 3
Solid Shaft Motor 3 Phase
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 4
Solid Shaft Motor Mono Phase
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 5
Solid Shaft AC Induction Single-Phase Motor
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 6
Electric Centrifugal Switch for Single Phase Motor
Factory Picture
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 7
Customer Feedback
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 8
Technical Data

Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)

FRAME POWER RPM COS φ EFF.% VOLT AMPERE
K.W. HP P.F. V A
HS90L1-22.2328200.86784004.9
HS90L2-23428200.86784006.6
HS90L3-23.7528200.80834008.6
HS100L1-23428400.83814007
HS100L2-245.528500.86824008.5
HS100M1-245.528300.84824009.4
HS112M2-25.57.528400.858340011.7
HS132S1-25.57.528900.868440011.6
HS132S2-27.51029000.868440015.4
HS132M1-2111529200.888640021.8
HS132M2-2152029200.888640029.3
HS160M1-2152029200.878840028
HS160M2-218.52529200.878940034
HS160M3-2223029200.8789.240041
HS90L1-41.5214000.82784003.4
HS90L2-42.2314000.79774005.4
HS90L3-42.63.514000.80784007.4
HS100L1-42.2314000.80814005.1
HS100L2-43414100.80814006.9
HS100L3-445.514200.80824009.4
HS100M1-44.4614200.828340010
HS112M1-445.514200.80834009
HS112M2-45.57.514300.828440012.1
HS112M3-46.28.514250.828440013.5
HS112L-479.514300.808540013.8
HS132S1-45.57.514300.828440011.7
HS132S2-47.51014300.848440015.4
HS132M1-49.212.514300.908540017.8
HS132M2-4111514300.908740021.3
HS132M3-412.51714300.888440026
HS160M1-4152014500.868940029
HS160M2-418.52514500.869040034
HS90L-61.11.59100.72724003.2
HS100L-61.529100.80744003.9
HS112M1-62.239400.80804005
HS112M2-6349400.80794006.9
HS132S1-6349400.78804006.9
HS132S2-645.59500.79824009
HS132M1-65.57.59500.798340012.4
HS132M2-67.5109500.798340016.5
HS160M1-67.5109600.778740016.5
HS160M2-611159600.798840023
Installation Dimensions
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 9
FRAME FLANGE FRAME
M N S A AC B H HC L K
90L75/8790/617/9140175125902202709.5
100L75/8790/617/916019614010024031511
112M75/8790/617/919022014013227533011
132S8761921625414013232037012
132M8761921625417813232040912
160M8761925431021016041049814.5
Warranty

Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Certificate
ZOZHI Three-Phase Waterproof High Efficiency Hollow Shaft Motor (IE2) 380V/440V 50/60Hz Flange Mount for Pressure 10
Request for Quotation
Q: What's the MOQ?
A: A trial sample order is ok.
Q: Are you a factory or trading company?
A: Manufacturer. Focus on motors for more than 15 years.
Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
Q: How can I get the sample?
A: Usually, we suggest express for samples.
Q: What's the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
