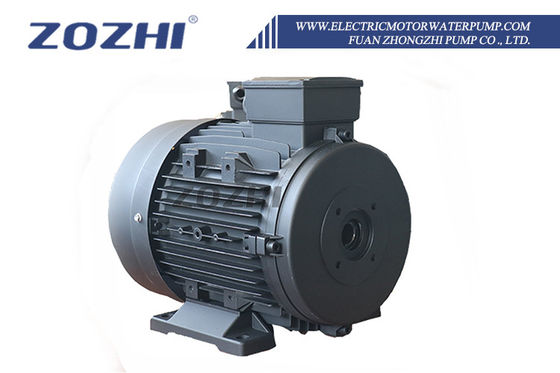

ZOZHI 112M-4 IE2 10-50HP 4kW Aluminum Waterproof Induction AC Electric Motor 380V/440V Three-phase Flange Motor
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | aluminum waterproof induction AC motor,three-phase flange electric motor,hollow shaft motor with warranty |
||
Product Description
ZOZHI 112M-4 IE2 10-50HP 4kW Aluminum Waterproof Induction AC Electric Motor 380V/440V Three-phase Flange Motor
Product Overview
ZOZHI Three-Phase Electric Motor 18.5KW 1460RPM IP55 Waterproof High Efficiency. Three-Phase Waterproof High Efficiency 2.2kW Industrial AC Motor for High Pressure Pump. HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor available in 2-pole, 4-pole, and 6-pole configurations. Designed for direct coupling with high-pressure pumps, this motor significantly reduces machine footprint while providing reliable and cost-efficient operation.
Key Specifications:
Supply: 220V/380V
Power: 30HP/22kW
RPM: 1400
Female Shaft: 24mm (Outer Diameter)
M/M: 87/61mm
Flange: B34 Face Flange
IEC Frame: 160
Material: Aluminum
Supply: 220V/380V
Power: 30HP/22kW
RPM: 1400
Female Shaft: 24mm (Outer Diameter)
M/M: 87/61mm
Flange: B34 Face Flange
IEC Frame: 160
Material: Aluminum
Applications
The direct coupling between the motor and high-pressure pump makes this product ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We offer a wide range of flanges and shafts suitable for direct coupling with most pumps on the market today.
Key Advantages
- High-Efficiency Motor: High-standard material with 100% output
- Popular Motor: Proven reliability with excellent customer feedback
- OEM & ODM: Comprehensive customized service available
- Direct Manufacturer: 24 hours online technical support
- 3 Years Warranty: Minimal after-service requirements
- 7 Days Shipment: Stock materials for fast delivery
Related Products
Hollow Shaft Motor - Three Phase
Hollow Shaft Motor - Single Phase
Solid Shaft Motor - 3 Phase
Solid Shaft Motor - Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Factory Overview
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER K.W. | POWER HP | RPM | COS φ | EFF.% | VOLT V | AMPERE A |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | FRAME A | FRAME AC | FRAME B | FRAME H | FRAME HC | FRAME L | FRAME K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certifications
Frequently Asked Questions
What's the MOQ?
A trial sample order is ok.
Are you a factory or trading company?
Manufacturer. Focus on motors for more than 15 years.
Can you accept using our logo?
Yes, we can do OEM for you.
How can I get the sample?
Usually, we suggest express for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
