ZOZHI Aluminum Shell High Efficiency Single-phase Capacitor Running Asynchronous Induction Motor IE2 Waterproof
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | aluminum shell single-phase induction motor,waterproof hollow shaft motor,IE2 capacitor running motor |
||
Product Description

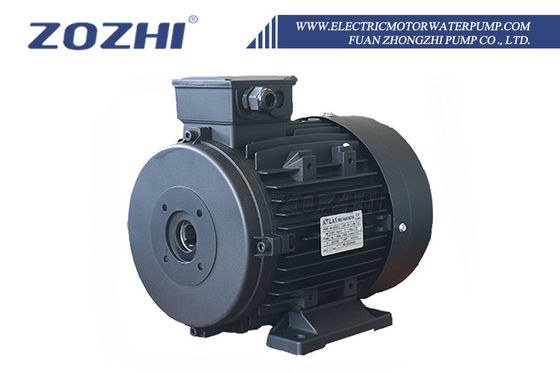

ZOZHI Aluminum Shell High Efficiency Single-phase Capacitor Running Asynchronous Induction Motor IE2 Waterproof
Product Overview
ZOZHI Three-Phase Electric Motor 18.5KW 1460RPM IP55 Waterproof High Efficiency. HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor available in 2-pole, 4-pole, and 6-pole configurations. Designed for direct coupling with high-pressure pumps, this motor significantly reduces machine footprint while providing reliable and cost-efficient operation.
Supply
220V/380V
Power
30HP/22kW
RPM
1400
Female Shaft
24mm (Outer Diameter)
M/M
87/61mm
Flange
B34 Face Flange
IEC Frame
160
Material
Aluminum
Applications
The direct coupling between the motor and high-pressure pump makes this product ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We offer a wide range of flanges and shafts suitable for direct coupling with most pumps on the market today.
Key Advantages
High-Efficiency Motor
High-standard material with 100% output
Popular Motor
Proven reliability with excellent customer feedback
OEM & ODM
Comprehensive customized service available
Direct Manufacturer
24 hours online technical support
3 Years Warranty
Minimal after-service requirements
7 Days Shipment
Stock materials for fast delivery
Related Products
Factory Overview
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER K.W. | POWER HP | RPM | COS φ | EFF.% | VOLT V | AMPERE A |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | FRAME A | FRAME AC | FRAME B | FRAME H | FRAME HC | FRAME L | FRAME K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certifications
Frequently Asked Questions
- What's the MOQ? A trial sample order is ok.
- Are you a factory or trading company? Manufacturer. Focus on motors for more than 15 years.
- Can you accept using our logo? Yes, we can do OEM for you.
- How can I get the sample? Usually, we suggest express for samples.
- What's the warranty period? 3 years from shipped on board date.
- What are your terms of payment? 30% advance payment, balance before shipment.
