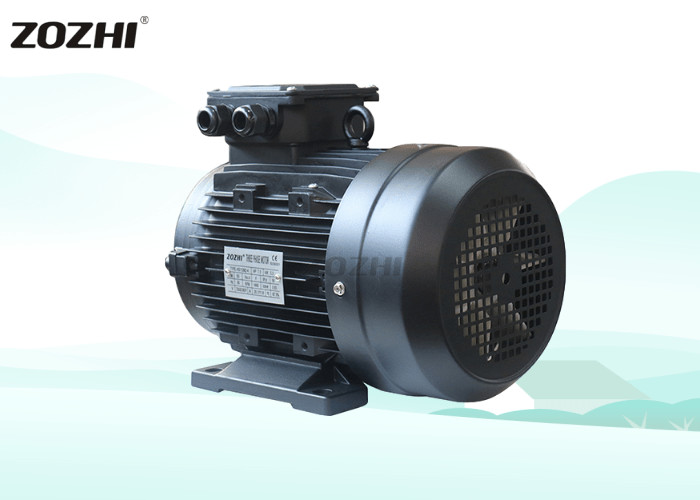

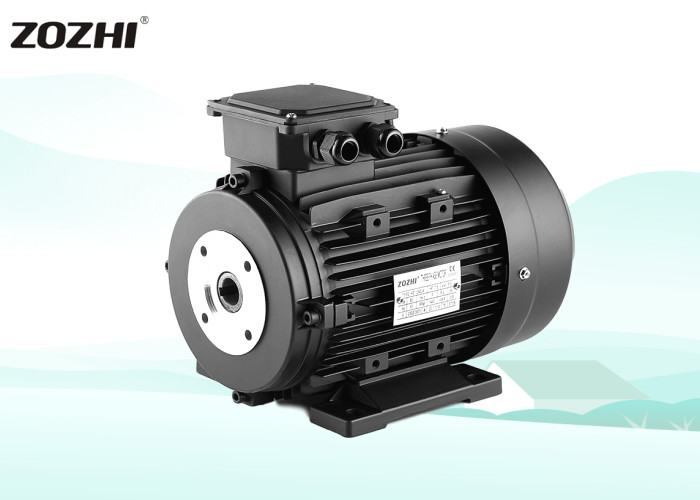

3kW Three-Phase Waterproof General-Purpose Hollow Shaft Motor F-Class Insulation
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 3kW hollow shaft motor,waterproof hollow shaft motor,three-phase F-class insulation motor |
||
Product Description
3kW Three-Phase Waterproof General-Purpose Hollow Shaft Motor F-Class Insulation
HS Series Asynchronous Electric 5.5kw Hollow Shaft Motor
Available in 2-pole, 4-pole, and 6-pole configurations for versatile industrial applications.
Key Specifications:
Supply Voltage: 220V/380V
Power: 30HP/22kW
RPM: 1400
Female Shaft: 24mm (Outer Diameter)
M/M: 87/61mm
B34 Face Flange
IEC Frame: 160
Material: Aluminum
Supply Voltage: 220V/380V
Power: 30HP/22kW
RPM: 1400
Female Shaft: 24mm (Outer Diameter)
M/M: 87/61mm
B34 Face Flange
IEC Frame: 160
Material: Aluminum
Application
The direct coupling between the motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We offer a wide range of flanges and shafts suitable for direct coupling with most pumps on the market today.
Advantages
High-Efficiency Motor
High-standard material with 100% output
Popular Motor
Get good feedback from customers
OEM & ODM
Customized service available
Direct Manufacturer
24 hours online service
3 Years Warranty
Almost without any after service
7 Days Shipment
Stock material available
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Factory Picture
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE | |
|---|---|---|---|---|---|---|---|
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
| HS90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| HS90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| HS90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| HS100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| HS100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| HS100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| HS100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| HS112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| HS112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| HS112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| HS112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| HS132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| HS132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| HS132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| HS132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| HS132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| HS160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| HS160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| HS90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| HS100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| HS112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| HS112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
| HS132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| HS132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| HS132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| HS132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| HS160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| HS160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Installation Dimensions
| FRAME | FLANGE | FRAME | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| M | N | S | A | AC | B | H | HC | L | K | |
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
3 Years Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certificate
Request for Quotation
1. Q: What's the MOQ?
A: A trial sample order is ok.
2. Q: Are you a factory or trading company?
A: Manufacturer. Focus on motors for more than 15 years.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the sample?
A: Usually, we suggest express for samples.
5. Q: What's the warranty period?
A: 3 years from shipped on board date.
6. Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
