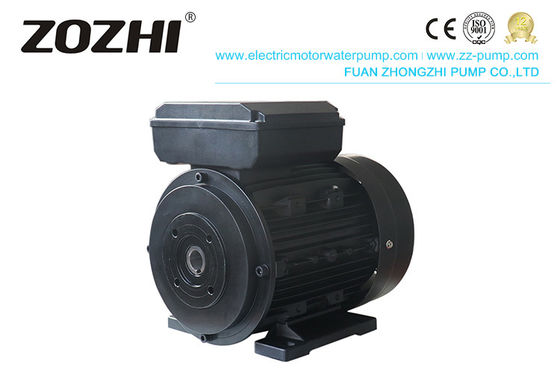

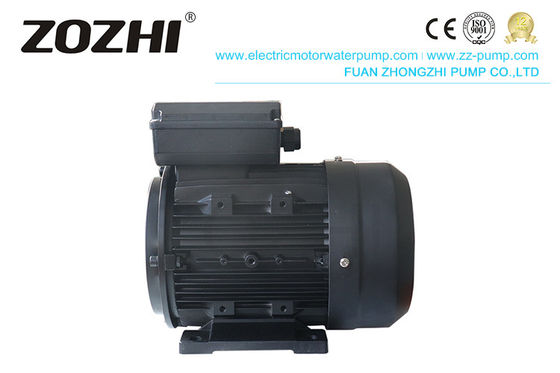

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6

  • High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6
  • High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6
  • High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HS160L3-4
Minimum Order Quantity 1pc
Price USD550-USD700
Packaging Details Packed in veneer case
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Application Pressure Washer Machine
Power Range 22KW/30HP V.& Hz 220/380V 50Hz
Flange Size 87/61mm Hollow Shaft D. 24mm
Housing Die Cast Aluminum Insulation Class F Or H
Protection IP55 Or IP65 Bearing Two Bearings
Highlight

IE2 three-phase asynchronous AC motor

,

380V waterproof hollow shaft motor

,

4KW CE certified AC motor
Leave a Message
Product Description
HS Series Asynchronous Electric 5.5kw Hollow Shaft Motor
Product Overview

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6

Key Specifications

Supply: 220V/380V

Power: 30Hp/22Kw

RPM: 1400

Female Shaft: 24mm (Outer Diameter)

M/M: 87/61mm

B34 Face Flange

IEC Frame: 160

Material: Aluminum

Application

The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 0
Advantages
High-Efficiency Motor

High-standard material with 100% output

Popular Motor

Get good feedback from customer

OEM & ODM

Customized service

Direct Manufacturer

24 hours online service

3 Years Warranty

Almost without any after service

7 Days Shipment

Stock Material

Related Products
High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 1

Hollow Shaft Motor Three Phase

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 2

Hollow Shaft Motor Single Phase

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 3

Solid Shaft Motor 3 Phase

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 4

Solid Shaft Motor Mono Phase

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 5

Solid Shaft AC Induction Single-Phase Motor

High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 6

Electric Centrifugal Switch For Single Phase Motor

Factory Picture
High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 7
Customer Feedback
High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 8
Technical Data

Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)

FRAME POWER K.W. POWER HP RPM COS φ EFF.% VOLT V AMPERE A
HS90L1-22.2328200.86784004.9
HS90L2-23428200.86784006.6
HS90L3-23.7528200.80834008.6
HS100L1-23428400.83814007
HS100L2-245.528500.86824008.5
HS100M1-245.528300.84824009.4
HS112M2-25.57.528400.858340011.7
HS132S1-25.57.528900.868440011.6
HS132S2-27.51029000.868440015.4
HS132M1-2111529200.888640021.8
HS132M2-2152029200.888640029.3
HS160M1-2152029200.878840028
HS160M2-218.52529200.878940034
HS160M3-2223029200.8789.240041
HS90L1-41.5214000.82784003.4
HS90L2-42.2314000.79774005.4
HS90L3-42.63.514000.80784007.4
HS100L1-42.2314000.80814005.1
HS100L2-43414100.80814006.9
HS100L3-445.514200.80824009.4
HS100M1-44.4614200.828340010
HS112M1-445.514200.80834009
HS112M2-45.57.514300.828440012.1
HS112M3-46.28.514250.828440013.5
HS112L-479.514300.808540013.8
HS132S1-45.57.514300.828440011.7
HS132S2-47.51014300.848440015.4
HS132M1-49.212.514300.908540017.8
HS132M2-4111514300.908740021.3
HS132M3-412.51714300.888440026
HS160M1-4152014500.868940029
HS160M2-418.52514500.869040034
HS90L-61.11.59100.72724003.2
HS100L-61.529100.80744003.9
HS112M1-62.239400.80804005
HS112M2-6349400.80794006.9
HS132S1-6349400.78804006.9
HS132S2-645.59500.79824009
HS132M1-65.57.59500.798340012.4
HS132M2-67.5109500.798340016.5
HS160M1-67.5109600.778740016.5
HS160M2-611159600.798840023
Installation Dimension
High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 9
FRAME FLANGE M FLANGE N FLANGE S FRAME A FRAME AC FRAME B FRAME H FRAME HC FRAME L FRAME K
90L75/8790/617/9140175125902202709.5
100L75/8790/617/916019614010024031511
112M75/8790/617/919022014013227533011
132S8761921625414013232037012
132M8761921625417813232040912
160M8761925431021016041049814.5
3 Years Warranty

Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Certificate
High Efficiency IE2 380V Three-Phase Asynchronous AC Motor 4KW 5.4Hp CE Certified Waterproof 50/60Hz 32M1-6 10
Frequently Asked Questions
Q: What's the MOQ?

A: A trial sample order is ok.

Q: Are you a factory or trading company?

A: Manufacturer. Focus on motors for more than 15 years.

Q: Can you accept using our logo?

A: Yes, we can do OEM for you.

Q: How can I get the sample?

A: Usually, we suggest express for samples.

Q: What's the warranty period?

A: 3 years from shipped on board date.

Q: What are your terms of payment?

A: 30% advance payment, balance before shipment.

Tags:

hollow shaft hydraulic motor

hollow shaft electric motor

three phase asynchronous motor
