11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase

  • 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase
  • 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase
  • 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase
  • 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase
  • 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase
  • 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase
Place of Origin CHINA
Brand Name ZOZHI
Certification CE,CCC,ISO9001
Model Number MS160M-6
Minimum Order Quantity 2pieces
Price USD284piece
Packaging Details CTNS/Veneer case
Delivery Time 14work days
Payment Terms T/T,L/C
Supply Ability 10000pieces per30days
Product Details
Asynchronous Speed 1500RPM Insulation Class F
Enclosure IP55 Ambient Temperature 40°C
Frame Size 80-355 Protection Class IP55
Color Customizable Power 15hp/11kw
Duty S1(continuous) Torque High
Altitude ≤1000m Rated Frequency 50Hz/60Hz
Mounting Type Foot Mounted
Highlight

11kw BLDC electric motor hollow shaft

,

15HP stepper induction motor washer pump

,

3 phase induction motor 415V 50Hz
Leave a Message
Product Description

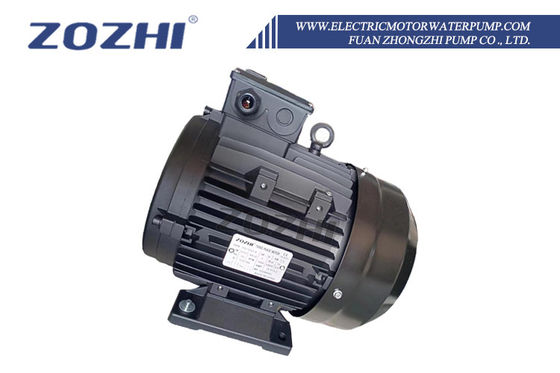

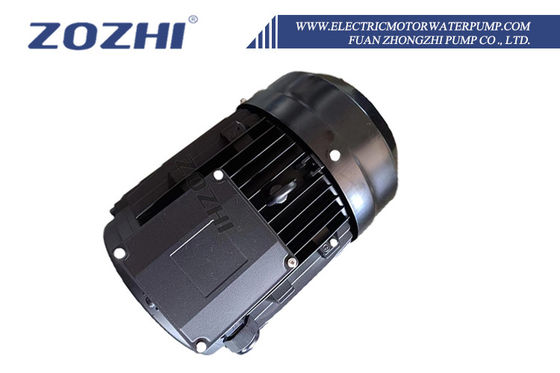

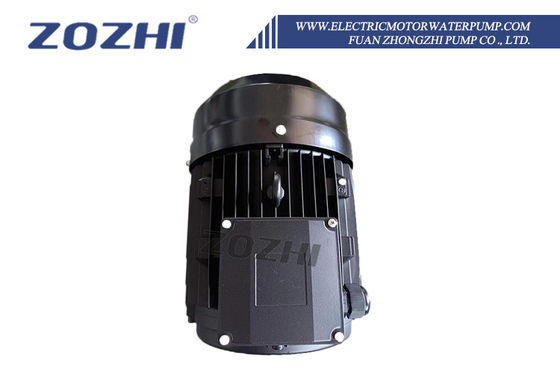

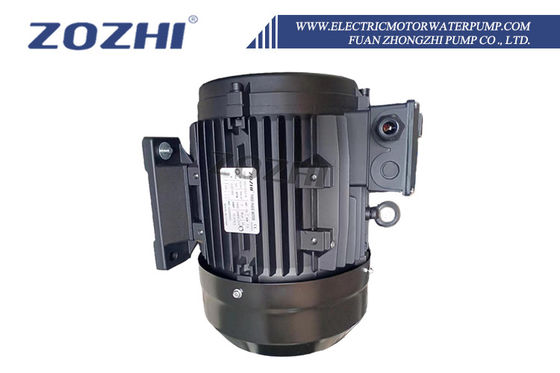

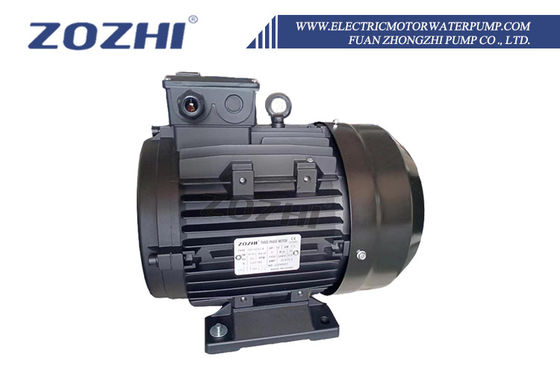

11kw/15HP BLDC Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz/60Hz Frequency Control Three-Phase
11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 0 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 1 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 2 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 3 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 4 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 5 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 6 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 7 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 8
Specifications
Parameter Value
Brand Name ZOZHI
Model HS132M2-4
Power 15HP/11KW
Type Asynchronous Motor
Phase Three phase
Frequency 50Hz/60Hz
Efficiency IE 1
Protection Class IP55
Certification CCC/CE/ISO9001
Housing Aluminium
Insulation Class Class F
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm or 75/90mm
Overall Dimensions
11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 9 11kw/15HP Bldc Electric Motor Hollow Shaft Stepper Induction Motor Washer Pump AC 415V 50Hz 60Hz Frequency Control Three-Phase 10
Frame Size Specifications
Frame Size Flange Frame M N S A AC B H HC L K
90L 75/87 90/61 7 140 238 125 90 220 270 9.5
100L 75/87 90/61 9 160 255 140 100 240 315 11
112M 75/87 90/61 9 216 326 140 132 320 370 12
Single Phase 50Hz/2-pole
Model Power Speed (RPM) Efficiency Current (A) Voltage (V) Weight (kg)
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 230 12.7
HSL90L2-2 3HP/2.2KW 2840 0.99 72 400 13.4
HSL100L2 3HP/2.2KW 2850 0.96 74 400 15.3
Single Phase 50Hz/4-pole
Model Power Speed (RPM) Efficiency Current (A) Voltage (V) Weight (kg)
HSL90L1-4 2HP/1.5KW 1400 0.98 70 230 9.5
HSL100L1-4 2.5HP/1.85KW 1390 0.97 68 230 12.2
HSL100L3-4 3.5HP/2.6KW 1350 0.99 74 230 13.1
HSL112M1-4 4HP/3KW 1400 0.98 74 230 17.5
Three Phase 50Hz/2-pole
Model Power Speed (RPM) Efficiency Current (A) Voltage (V) Weight (kg)
HS90L1-2 3HP/2.2KW 2820 0.86 78 400 4.9
HS90L2-2 4HP/3KW 2820 0.86 83 400 6.6
HS100L1-2 5.5HP/4KW 2830 0.84 82 400 8.5
HS112M2-2 7.5HP/5.5KW 2890 0.86 84 400 11.7
HS132S1-2 7.5HP/5.5KW 2920 0.88 86 400 15.4
HS132M1-2 15HP/11KW 2920 0.87 88 400 21.3
HS160M2-2 25HP/18.5KW 2920 0.87 89.2 400 29
Three Phase 50Hz/4-pole
Model Power Speed (RPM) Efficiency Current (A) Voltage (V) Weight (kg)
HS90L1-4 2HP/1.5KW 1400 0.80 72 400 3.4
HS100L-6 2HP/1.5KW 910 0.72 72 400 5
HS112M1-6 3HP/2.2KW 940 0.80 74 400 3.9
HS112M2-6 4HP/3KW 940 0.80 79 400 6.9
HS132S1-6 4HP/3KW 940 0.78 80 400 9
HS132M1-6 7.5HP/5.5KW 950 0.79 83 400 12.1
HS160M2-6 15HP/11KW 960 0.79 88 400 16.5
HS160M3-6 20HP/15KW 960 0.77 87 400 23
