7.5KW 10HP Three-Phase Hollow Shaft Motor with 60Hz Frequency for High Pressure Cleaning

  • 7.5KW 10HP Three-Phase Hollow Shaft Motor with 60Hz Frequency for High Pressure Cleaning
Place of Origin CHINA
Brand Name ZOZHI
Certification CE,CCC,ISO9001
Model Number HS100L2-4
Minimum Order Quantity 2pieces
Price USD177piece
Packaging Details CTNS/Veneer case
Delivery Time 14work days
Payment Terms T/T,L/C
Supply Ability 10000pieces per30days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Asynchronous Speed 1450RPM Insulation Class F
Enclosure IP55 Ambient Temperature 40°C
Frame Size 100 Protection Class IP55
Color Customizable Power 7.5hp/5.5kw
Duty S1(continuous) Torque High
Altitude ≤1000m Rated Frequency 50Hz/60Hz
Mounting Type Foot Mounted
Highlight

7.5KW Hollow Shaft Motor

,

10HP Three-Phase Induction Motor

,

60Hz Frequency AC Induction Motor
Leave a Message
Product Description
7.5KW 10HP Three-Phase Hollow Shaft Motor 60Hz Frequency 1450RPM
This industrial-grade 10HP AC induction motor (7.5KW) delivers reliable, high-torque performance for demanding applications. Engineered with a precise 1400RPM speed and standardized three-phase 380V/50Hz power supply, its key feature is the integrated 24mm hollow shaft design, making it an ideal direct-drive solution for water pumps, gearboxes, conveyors, and various machinery requiring efficient power transmission.
Key Features
  • High-performance 7.5KW (10HP) three-phase induction motor
  • 24mm hollow shaft design for direct-drive applications
  • Optimized for high-pressure cleaning and industrial use
  • Robust construction with aluminum housing
  • High efficiency IE1 classification
  • IP55 protection class for durability
Technical Specifications
Brand Name ZOZHI
Type Asynchronous Motor
Phase Three phase
Frequency 50Hz/60Hz
Efficiency IE 1
Protection class IP55
Certification CCC/CE/ISO9001
Housing Aluminium
Insulation Class Class F
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm or 75/90mm

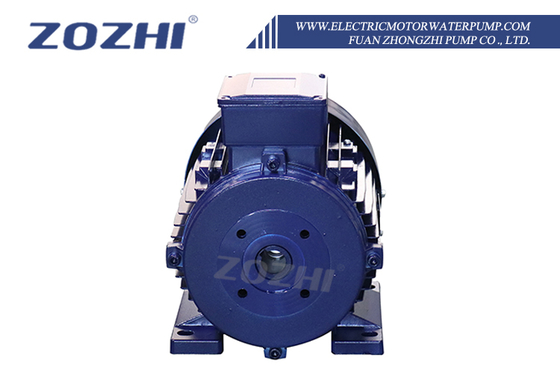

Motor Images
7.5KW 10HP Three-Phase Hollow Shaft Motor with 60Hz Frequency for High Pressure Cleaning 0 7.5KW 10HP Three-Phase Hollow Shaft Motor with 60Hz Frequency for High Pressure Cleaning 1
Overall Dimensions
Frame Size Flange Frame M N S A AC B H HC L K
90L 75/87 90/61 7 140 238 125 90 220 270 9.5
100L 75/87 90/61 9 160 255 140 100 240 315 11
112M 75/87 90/61 9 216 326 140 132 320 330 11
132S 75/87 90/61 9 216 326 140 132 320 370 12
Detailed Technical Specifications
Model Power Speed (RPM) Efficiency Current (A) Weight (kg) Voltage (V) Starting Current (A)
Single Phase 50Hz/2-pole
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 50 230 12.7
HSL90L2-2 3HP/2.2KW 2840 0.99 72 60 400 13.4
HSL100L2 3HP/2.2KW 2850 0.96 74 85 400 15.3
HSL132S1-2 5.5HP/4KW 2920 0.88 86 - 400 21.8
HSL132M2-2 20HP/15KW 2920 0.87 89.2 - 400 41
Three Phase 50Hz/2-pole
HS90L1-2 3HP/2.2KW 2820 0.86 78 - 400 4.9
HS90L2-2 4HP/3KW 2820 0.80 83 - 400 8.6
HS100L1-2 4HP/3KW 2840 0.83 81 - 400 6.6
HS100L2-2 5.5HP/4KW 2850 0.86 84 - 400 11.6
HS132S1-2 7.5HP/5.5KW 2900 0.86 84 - 400 15.4
HS132M2-2 20HP/15KW 2920 0.88 86 - 400 28
Three Phase 50Hz/4-pole
HS90L1-4 2HP/1.5KW 1400 0.82 78 - 400 3.2
HS90L2-4 3HP/2.2KW 1400 0.80 81 - 400 6.9
HS100L1-4 3HP/2.2KW 1420 0.80 81 - 400 5.1
HS112M1-4 4HP/3KW 1420 0.80 82 - 400 12.4
HS132S1-4 7.5HP/5.5KW 1430 0.90 85 - 400 17.8
HS132M2-4 15HP/11KW 1430 0.90 87 - 400 26
HS160M1-4 20HP/15KW 1450 0.86 89 - 400 29
