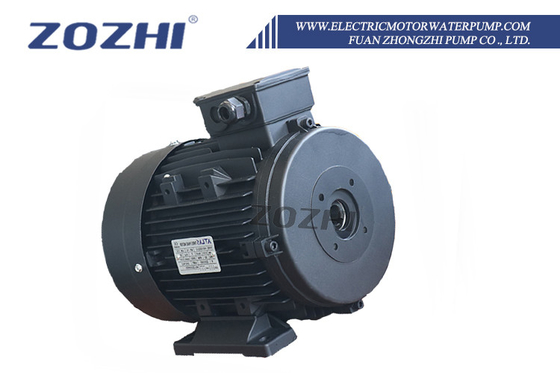

Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump

Place of Origin	CHINA
Brand Name	ZOZHI
Certification	CE,CCC,ISO9001
Model Number	HS112M2-4
Minimum Order Quantity	2pieces
Price	USD155-170piece
Packaging Details	CTNS/Veneer case
Delivery Time	14work days
Payment Terms	T/T, L/C
Supply Ability	10000pieces per30days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

ASYNCHRONOUS HOLLOW SHAFT MOTOR

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution

Product name	Hollow shaft electric motor HS112M2-4
Motor housing	Aluminum
Power	5.5KW/7.5HP
Installation	B3 Hollow shaft 24mm
Flange size	B3 87/61mm or 75/90mm
Bearing	C&U
Shaft	C#45
Insulation	Class F
Protection	IP55
Voltage/Frequency	Three phase 380V OR other request
Speed	1400rpm
Application	Interpump

Application

Specification

FRAME	POWER KW HP		RPM	COSφ P.F.	EFF.%	CAPACITOR (UF)	VOL	AMPEREA
Single-Phase 4 Poles 3000Rpm 50Hz
711-4	0.25	0.35	1360	0.91	57	10	230	2.1
712-4	0.37	0.5	1380	0.94	65	16	230	2.6
90L1-4	1.5	2	1400	0.98	70	45	230	9.5
100L1-4	1.85	2.5	1390	0.97	68	55	230	12.2
100L2-4	2.2	3	1350	0.99	74	70	230	13.1
100L3-4	2.6	3.5	1350	0.96	74	80	230	17.5
112M1-4	3	4	1400	0.98	74	80	230	18.1
112M2-4	3.7	5	1410	0.96	76	100	230	22
Three-Phase 4 Poles 1500Rpm 50Hz
711-4	0.25	0.35	1370	0.73	64		400	0.8
712-4	0.37	0.5	1350	0.74	68		400	1.1
713-4	0.55	0.75	1350	0.75	66		400	1.6
90L1-4	1.5	2	1400	0.82	78		400	3.4
90L2-4	2.2	3	1400	0.79	77		400	5.4
90L3-4	2.6	3.5	1400	0.8	78		400	7.4
100L1-4	2.2	3	1400	0.8	81		400	5.1
100L2-4	3	4	1410	0.8	81		400	6.9
100L3-4	4	5.5	1420	0.8	82		400	9.4
100M1-4	4.4	6	1420	0.82	83		400	10
112M1-4	4	5.5	1420	0.8	83		400	9
112M2-4	5.5	7.5	1430	0.82	84		400	12.1
112M3-4	6.2	8.5	1425	0.82	84		400	13.5
112L-4	7	9.5	1430	0.8	85		400	13.8
132S1-4	5.5	7.5	1430	0.82	84		400	11.7
132S2-4	7.5	10	1430	0.84	84		400	15.4
132M1-4	9.2	12.5	1430	0.9	85		400	17.8
132M2-4	11	15	1430	0.9	87		400	21.3
132M3-4	12.5	17	1430	0.88	84		400	26
160M1-4	15	20	1450	0.86	89		400	29
160M2-4	18.5	25	1450	0.86	90		400	34
