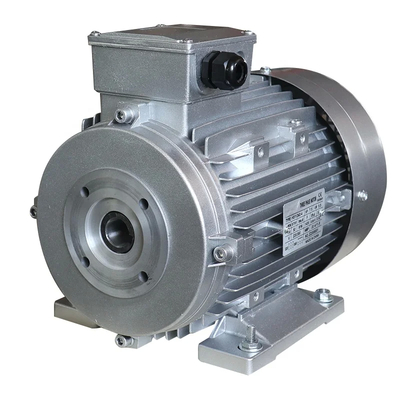

ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications

  • ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications
Place of Origin CHINA
Brand Name ZOZHI
Certification CE
Model Number HS112M2-4
Minimum Order Quantity 1
Price USD165
Packaging Details CTNS/VENEER CASE
Delivery Time 7 DAYS
Payment Terms 100% before shipment
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacture ZOZHI Motor Noise Level ≤65dB
Efficiency IE1 IE2 IE3 G.W. Weight 35Kg
Insulation Class F Frame Size 112#
Product Name Hollow Shaft Motor Hollow Shaft Diameter Φ24mm
Highlight

3 Phase Hollow Shaft Motor

,

IE3 Hollow Shaft Motor

,

IE2 Hollow Shaft Motor
Leave a Message
Product Description

Product Description:

Hollow shaft motors for high-pressure pumps and are still amongst the leaders of this market, exporting all over the world.
Hollow shaft motors are recognized for their excellent reliability due to the precision of their mechanical processing and their high level of electrical performance. Over recent years the company has developed A special solution called double flange aimed at the professional power washing market.
It is an A motor that combines the advantages of the hollow shaft motor (reduced dimensions and low costs) with the characteristics of the standard type motor with A flange and coupling (for easy assembly and service).



Features:

  • Product Name: Hollow Shaft Motor
  • Rated Power: 5.5KW/7.5HP
  • Flange Size: 87/61mm or 75/90mm
  • Housing Material: Aluminum Alloy
  • Insulation Class: F
  • Weight: 33.1kg
  • Application: Ideal for three-phase asynchronous motor, high-pressure pump and pressure washing machine.





Application



The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps today.

ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 0












Advantage





Popular motor to support you in winning the market





High-Efficiency Motor High-standard material with 100% output



Population Motor Get good feedback from customer.



OEM & ODM Customized service



Direct manufacturer 24-hour online service



3 Years Warranty Almost without any after service



7 days shipment Stock Material





Relate Products





ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 1 ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 2 ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 3

Hollow Shaft Motor

Three Phase Motor

Hollow Shaft Motor

Single Phase Motor

Solid Shaft Motor

3 Phase Motor
ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 4 ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 5 ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 6

Solid Shaft Motor

Mono phase Motor

Solid Shaft Motor

AC induction single-phase motor

Electric Centrifugal Switch

For Single-phase Motor





Factory Picture



ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 7





Customer Feedback

ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 8





Technical Data





Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)





FRAME POWER RPM COSφ EFF.% VOLT AMPERE
K.W. HP P.F. V A
HS90L1-2 2.2 3 2820 0.86 78 400 4.9
HS90L2-2 3 4 2820 0.86 78 400 6.6
HS90L3-2 3.7 5 2820 0.80 83 400 8.6
HS100L1-2 3 4 2840 0.83 81 400 7
HS100L2-2 4 5.5 2850 0.86 82 400 8.5
HS100M1-2 4 5.5 2830 0.84 82 400 9.4
HS112M2-2 5.5 7.5 2840 0.85 83 400 11.7
HS132S1-2 5.5 7.5 2890 0.86 84 400 11.6
HS132S2-2 7.5 10 2900 0.86 84 400 15.4
HS132M1-2 11 15 2920 0.88 86 400 21.8
HS132M2-2 15 20 2920 0.88 86 400 29.3
HS160M1-2 15 20 2920 0.87 88 400 28
HS160M2-2 18.5 25 2920 0.87 89 400 34
HS160M3-2 22 30 2920 0.87 89.2 400 41
HS90L1-4 1.5 2 1400 0.82 78 400 3.4
HS90L2-4 2.2 3 1400 0.79 77 400 5.4
HS90L3-4 2.6 3.5 1400 0.80 78 400 7.4
HS100L1-4 2.2 3 1400 0.80 81 400 5.1
HS100L2-4 3 4 1410 0.80 81 400 6.9
HS100L3-4 4 5.5 1420 0.80 82 400 9.4
HS100M1-4 4.4 6 1420 0.82 83 400 10
HS112M1-4 4 5.5 1420 0.80 83 400 9
HS112M2-4 5.5 7.5 1430 0.82 84 400 12.1
HS112M3-4 6.2 8.5 1425 0.82 84 400 13.5
HS112L-4 7 9.5 1430 0.80 85 400 13.8
HS132S1-4 5.5 7.5 1430 0.82 84 400 11.7
HS132S2-4 7.5 10 1430 0.84 84 400 15.4
HS132M1-4 9.2 12.5 1430 0.90 85 400 17.8
HS132M2-4 11 15 1430 0.90 87 400 21.3
HS132M3-4 12.5 17 1430 0.88 84 400 26
HS160M1-4 15 20 1450 0.86 89 400 29
HS160M2-4 18.5 25 1450 0.86 90 400 34
HS90L-6 1.1 1.5 910 0.72 72 400 3.2
HS100L-6 1.5 2 910 0.80 74 400 3.9
HS112M1-6 2.2 3 940 0.80 80 400 5
HS112M2-6 3 4 940 0.80 79 400 6.9
HS132S1-6 3 4 940 0.78 80 400 6.9
HS132S2-6 4 5.5 950 0.79 82 400 9
HS132M1-6 5.5 7.5 950 0.79 83 400 12.4
HS132M2-6 7.5 10 950 0.79 83 400 16.5
HS160M1-6 7.5 10 960 0.77 87 400 16.5
HS160M2-6 11 15 960 0.79 88 400 23









Installation Dimension

ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 9



FRAME FLANGE FRAME
M N S A AC B H HC L K
90L 75/87 90/61 7/9 140 175 125 90 220 270 9.5
100L 75/87 90/61 7/9 160 196 140 100 240 315 11
112M 75/87 90/61 7/9 190 220 140 132 275 330 11
132S 87 61 9 216 254 140 132 320 370 12
132M 87 61 9 216 254 178 132 320 409 12
160M 87 61 9 254 310 210 160 410 498 14.5


3 Years Warranty



Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


Certificate

ZOZHI IE1 IE2 IE3 3 Phase Hollow Shaft Motor for Industrial Applications 10





RFQ




1. Q: What’s the MOQ? 2. Q: Are you a factory or trading company?

A: A trial sample order is ok. A: Manufacturer. Focus on motors for more than 15 years.


3. Q: Can you accept using our logo? 4. Q: How can I get the sample?

A: Yes, we can do OEM for you. A: Usually, we suggest express for samples.



5. Q: What’s the warranty period? 6. Q: What are your terms of payment?

A: 3 years from shipped on board date. A: 30% advance payment, balance before shipment.
