2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer

  • 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer
  • 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer
  • 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer
  • 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer
  • 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HS90L-4
Minimum Order Quantity 1pc
Price USD90-USD150
Packaging Details Packed in veneer case or cartons
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Pressure Washer Machine
Power Range 1.5KW/2HP V.& Hz 220/380V 50Hz
Flange Size 87/61mm Hollow Shaft D. 24mm
Housing Die Cast Aluminum Insulation Class F Or H
Protection IP55 Or IP65 Bearing Two Bearings
High Light

Asynchronous AC Induction Electric Motor

,

Hollow Shaft Induction Electric Motor

,

2hp Hollow Shaft Induction Motor
Leave a Message
Product Description

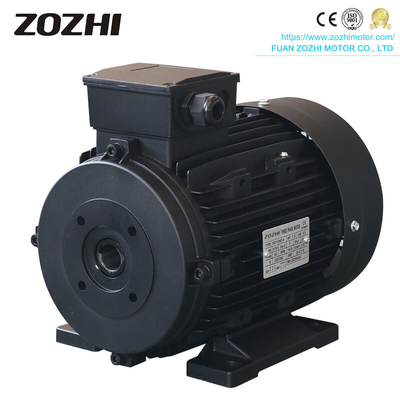

2hp 380volt Hollow Shaft Three-Phase Asynchronous AC Induction Electric Motor For Pressure Washer Machine





Supply- 220V/380V

Power -2Hp/1.5Kw

RPM- 1400

Female Shaft - 24mm ( Outer Diameter)

M/M: 87/61mm



B34 Face Flange

IEC Frame - 90

Material - Aluminum





                                                       Application



The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.

2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 0












                                                       Advantage





                                                         Popular motor to support you to win the market





                                              High-Efficiency Motor                                    High-standard material with 100% output



                                              Population Motor                                           Get good feedback from customer



                                              OEM & ODM                                                 Customized service



                                              Direct manufacturer                                      24 hours online service



                                              3 Years Warranty                                          Almost without any after service



                                              7 days shipment                                           Stock Material





                                               Relate Products





2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 1 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 2 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 3

                 Hollow Shaft Motor

                 Three Phase Motor

                  Hollow Shaft Motor

                  Single Phase Motor

                  Solid Shaft Motor

                  3 Phase Motor
2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 4 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 5 2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 6

                   Solid Shaft Motor

                   Mono phase Motor

                     Solid Shaft Motor

           AC induction single-phase motor

              Electric Centrifugal Switch

                For Single Phase Motor





                                               Factory Picture



2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 7





                                               Customer Feedback

2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 8





                                               Technical Data





                                               Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)





FRAME POWER RPM COSφ EFF.% VOLT AMPERE
K.W. HP P.F. V A
HS90L1-2 2.2 3 2820 0.86 78 400 4.9
HS90L2-2 3 4 2820 0.86 78 400 6.6
HS90L3-2 3.7 5 2820 0.80 83 400 8.6
HS100L1-2 3 4 2840 0.83 81 400 7
HS100L2-2 4 5.5 2850 0.86 82 400 8.5
HS100M1-2 4 5.5 2830 0.84 82 400 9.4
HS112M2-2 5.5 7.5 2840 0.85 83 400 11.7
HS132S1-2 5.5 7.5 2890 0.86 84 400 11.6
HS132S2-2 7.5 10 2900 0.86 84 400 15.4
HS132M1-2 11 15 2920 0.88 86 400 21.8
HS132M2-2 15 20 2920 0.88 86 400 29.3
HS160M1-2 15 20 2920 0.87 88 400 28
HS160M2-2 18.5 25 2920 0.87 89 400 34
HS160M3-2 22 30 2920 0.87 89.2 400 41
HS90L1-4 1.5 2 1400 0.82 78 400 3.4
HS90L2-4 2.2 3 1400 0.79 77 400 5.4
HS90L3-4 2.6 3.5 1400 0.80 78 400 7.4
HS100L1-4 2.2 3 1400 0.80 81 400 5.1
HS100L2-4 3 4 1410 0.80 81 400 6.9
HS100L3-4 4 5.5 1420 0.80 82 400 9.4
HS100M1-4 4.4 6 1420 0.82 83 400 10
HS112M1-4 4 5.5 1420 0.80 83 400 9
HS112M2-4 5.5 7.5 1430 0.82 84 400 12.1
HS112M3-4 6.2 8.5 1425 0.82 84 400 13.5
HS112L-4 7 9.5 1430 0.80 85 400 13.8
HS132S1-4 5.5 7.5 1430 0.82 84 400 11.7
HS132S2-4 7.5 10 1430 0.84 84 400 15.4
HS132M1-4 9.2 12.5 1430 0.90 85 400 17.8
HS132M2-4 11 15 1430 0.90 87 400 21.3
HS132M3-4 12.5 17 1430 0.88 84 400 26
HS160M1-4 15 20 1450 0.86 89 400 29
HS160M2-4 18.5 25 1450 0.86 90 400 34
HS90L-6 1.1 1.5 910 0.72 72 400 3.2
HS100L-6 1.5 2 910 0.80 74 400 3.9
HS112M1-6 2.2 3 940 0.80 80 400 5
HS112M2-6 3 4 940 0.80 79 400 6.9
HS132S1-6 3 4 940 0.78 80 400 6.9
HS132S2-6 4 5.5 950 0.79 82 400 9
HS132M1-6 5.5 7.5 950 0.79 83 400 12.4
HS132M2-6 7.5 10 950 0.79 83 400 16.5
HS160M1-6 7.5 10 960 0.77 87 400 16.5
HS160M2-6 11 15 960 0.79 88 400 23









                                             Installation Dimension

2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 9



FRAME FLANGE FRAME
M N S A AC B H HC L K
90L 75/87 90/61 7/9 140 175 125 90 220 270 9.5
100L 75/87 90/61 7/9 160 196 140 100 240 315 11
112M 75/87 90/61 7/9 190 220 140 132 275 330 11
132S 87 61 9 216 254 140 132 320 370 12
132M 87 61 9 216 254 178 132 320 409 12
160M 87 61 9 254 310 210 160 410 498 14.5


                                                  3 Years Warranty



Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


                                                    Certificate

2hp Asynchronous Hollow Shaft AC Induction Electric Motor 380volt For Pressure Washer 10





                                                     RFQ




1. Q: What’s the MOQ?                                                                                     2. Q: Are you a factory or trading company?

A: A trial sample order is ok.                                                                                   A: Manufacturer. Focus on motors for more than 15 years.


3. Q: Can you accept using our logo?                                                            4. Q: How can I get the sample?

A: Yes, we can do OEM for you.                                                                              A: Usually, we suggest express for samples.



5. Q: What’s the warranty period?                                                                   6. Q: What are your terms of payment?

A: 3 years from shipped on board date.                                                                   A: 30% advance payment, balance before shipment.
