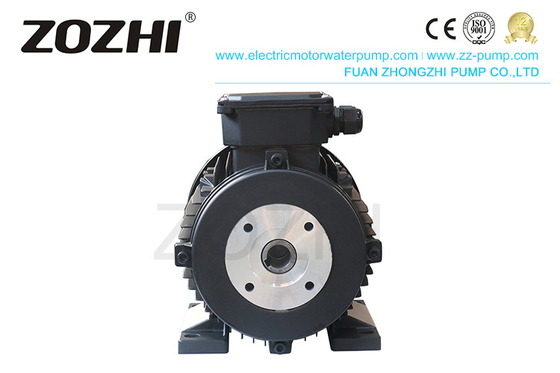

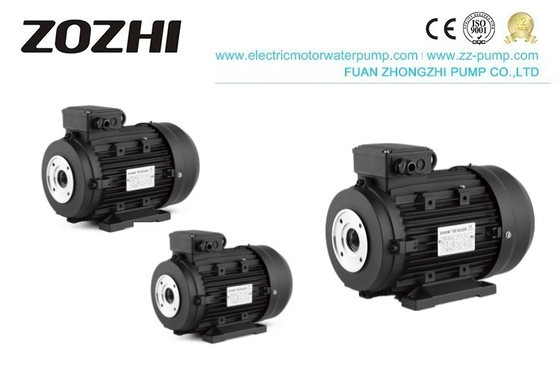

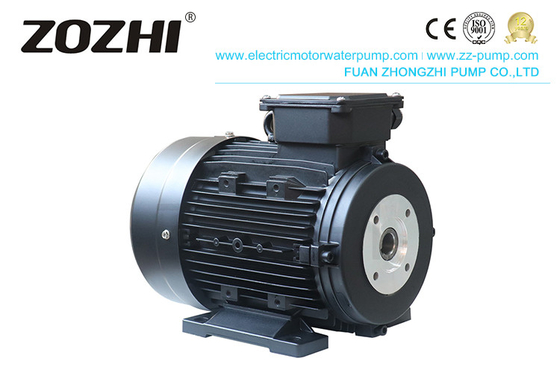

4kw - 22kw Hollow Shaft Electric Motor IP55 / IP65 For High Pressure Washer
Place of Origin | FUAN CHINA |
---|---|
Brand Name | ZOZHI |
Certification | CE,ISO |
Model Number | 112M2-4 |
Minimum Order Quantity | 1pc |
Price | $44.6~$58.6 |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | L/C, T/T |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Hollow Shaft Motor | Power | 5.5kw/7.5Hp |
---|---|---|---|
Shaft | 24mm | Speed | 1400rpm |
Housing | Die Cast Aluminum | Insulation Class | F,H |
Protection | IP55/IP65 | Rated Voltage | 380V |
Application | Cleaning Machine / High Pressure Washer | ||
High Light | Hollow Shaft Electric Motor 24mm,Pressure Washer Hollow Shaft Electric Motor,Cleaner Machine Hollow Shaft Motor |
4kw 5.5kw 7.5kw 11kw 15kw 18.5kw 22kw Hollow Shaft Electric Motor For High-Pressure Washer
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Application
A hollow shaft electric motor is a new type of motor with an internal joint designed for high-pressure pumps. It reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard motor. It adopts a new technology design, 100% copper wiring, C&U bearing, and shaft extension through high-frequency quenching treatment, significantly improving mechanical strength, low-temperature rise, fast heat dissipation, high efficiency, and energy-saving. In addition, it is connected to the pump for high-pressure water column cleaning.
Advantage:
Zozhi motor is not only committed to providing a suitable assembling size for your washing machine but more importantly, represents the attitude toward the responsibility in the improvement of hollow shaft electric motor performance.
Produce Line Picture:
Data:
50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FRAME | FLANGE | FRAME NO | APPLICABLE PUMP MODEL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AR PUMP | HAWK PUMP | INTERPUMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
71 | 90mm | 71 | X.M. - R.K. - RG | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
90 | 61/90mm | 90L | XM - RK - RG | Series44/49/50/51/58/60/63 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 61/90mm | 100L | XM - RK - RW - XW - RG RC - RR - RS | NHD -NHDP -NMT | Series44/49/50/51/58/ 60/ 63 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
112 | 61/90mm | 112M | XM - RK - RW - XW - RG RC - RR - RS | NHD - NHDP -NMT -NPM | Series 47/59/66 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132S | RK - XW - RG RR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132M | RK - XW - XWL - SXW - SHP - RG | NMT -NPM -PXI - NLTI -XLTI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
160 | 61mm | 160M | X.W. - XWL - SWL - SHP |
Reviews from the client:
Shipping:
after 25~30days, we will deliver the goods, for loose goods are better packed by the pallet to avoid destroy
