15kw Hollow Shaft Electric Motor For High Pressure Washer
Place of Origin | FUAN CHINA |
---|---|
Brand Name | ZOZHI |
Certification | CE,ISO |
Model Number | 112M2-4 |
Minimum Order Quantity | 1pc |
Price | $44.6~$58.6 |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | L/C, T/T |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Hollow Shaft Motor | Power | 5.5kw/7.5Hp |
---|---|---|---|
Shaft | 24mm | Speed | 1400rpm |
Housing | Die Cast Aluminum | Insulation Class | B,F |
Protection | IP44 / IP54 | Rated Voltage | 380V |
Application | Cleaning Machine / Pressure Washer Machine | ||
High Light | Die Cast Aluminum Hollow Shaft Motor,15kw Hollow Shaft Washing Machine Motor,24mm Hollow Shaft Electric Motor |

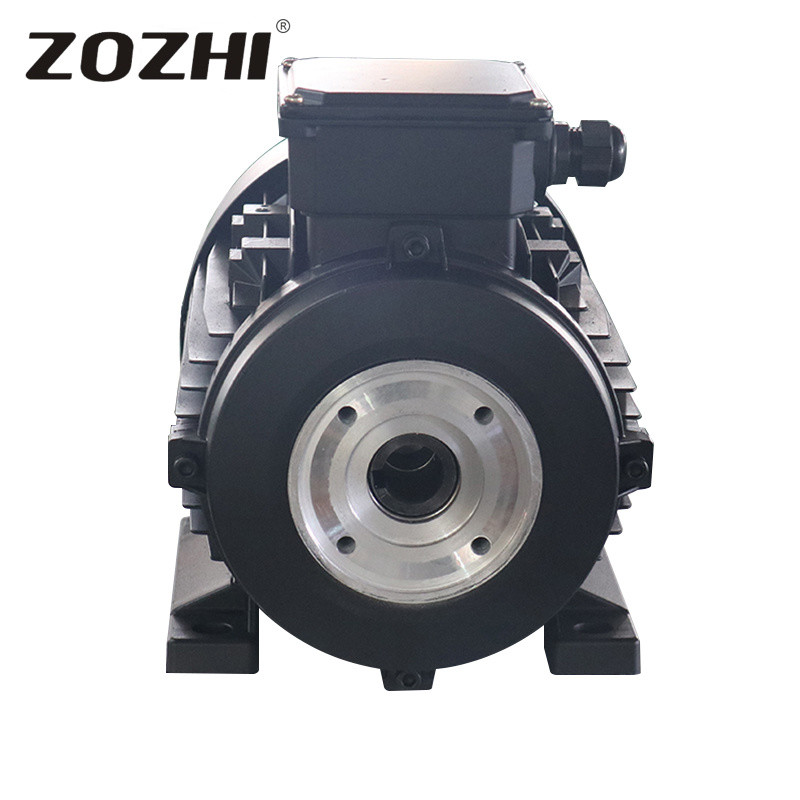

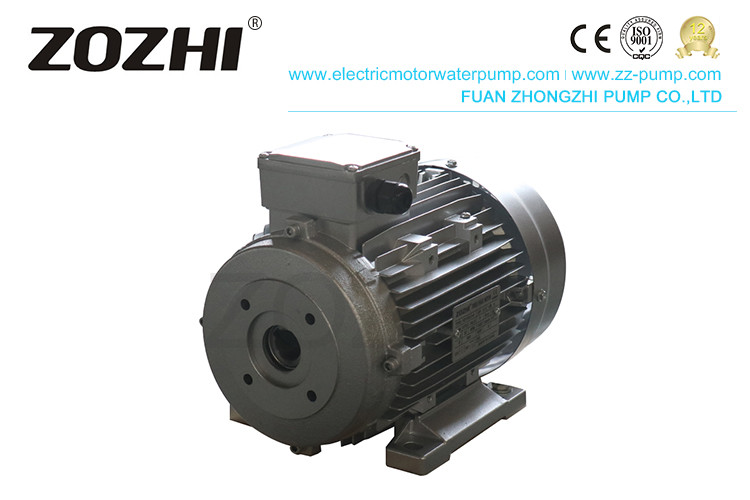

15kw Hollow Shaft Electric Motor for High-Pressure Washer
Hollow shaft motors with precision requirements have very high requirements for the accuracy of the hollow shaft or the inner hole diameter and thread, mainly because such hollow shaft motors are mostly customized to meet the use of third-party trapezoidal screws or The demand for ball screws. Such hollow shaft has higher requirements for the inner hole diameter and thread accuracy than ordinary through-type screw motors.
It can also be used as a generator by taking advantage of its high energy conversion efficiency; using its linear running characteristics, it can also be used as a generator; with a reducer, it can also be used as a torque motor.
Hollow shaft motors have a wide range of applications. They can be used as water pumps, ventilation equipment, boosting equipment, small hydroelectric generators, propellers, etc. The advantages are: reduced volume, weight, noise, integrated multi-purpose, lower cost, and manufacturing Simple and easy to use.
Technical Data | |
Power range | 1.1~15kw |
Rated Frequency | 50HZor 60HZ |
Rated voltage | 380V or order |
Protection class | IP54 or IP55 |
Insulation class | F |
Duty type | S1 |
Used | Washing machine ,Reducer,Air Compressor, Water Pump, Oil Pump, Packaging and Food Mahcinery etc. |
Hollow Shaft Motor
Product Name: Hollow Shaft Washing Machine Motor
Material: Copper Winding, Aluminum housing, Copper Wire
Speed: 1450rpm 2900rpm 980rpm
Used: Washing Machine Motor, Reducer, Air Compressor, Water Pump, Oil Pump, Packing and Food Machinery
Advantage:
1. Use high-quality materials to ensure sufficient output power, a small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings and a rigorous assembly process to achieve low-noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve mechanical strength, seamless connection with gear, and worry-free operation.
Hollow Shaft Electric Motor Application
MOTOR CONSTRUCTION SHAPE |
WEIGH | RATED POWER OUTPUT | SPPD | VOLTAGE | FOR PUMP SERIES | |
KG | HP | KW | RPM | |||
112M2-4 | 32.0 | 7.5 | 5.5 | 1450 | 400V |
NMT NPM NMT Car Wash |
1. 112M2-4 Hollow shaft motor With NMT pump
Environment: pressure ≤ 200bar
Water temperature ≤ 65 °C
Operating environment: professional high-pressure cleaner, motor vehicle cleaning system, or spray system
2. 112M2-4 Hollow shaft motor With NPM pump
Environment: pressure ≤ 250bar
Water temperature ≤ 65 °C
Operating environment: professional high-pressure washing machine
3. 112M2-4 Hollow shaft motor With NMT-CW pump
Environment: pressure ≤ 200bar
Water temperature ≤ 65 °C
Operating environment: self-service car wash or more extended service life professional pressure washer
50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FRAME | FLANGE | FRAME NO | APPLICABLE PUMP MODEL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AR PUMP | HAWK PUMP | INTERPUMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
71 | 90mm | 71 | X.M. - R.K. - RG | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
90 | 61/90mm | 90L | XM - RK - RG | Series44/49/50/51/58/60/63 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 61/90mm | 100L | XM - RK - RW - XW - RG RC - RR - RS | NHD -NHDP -NMT | Series44/49/50/51/58/ 60/ 63 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
112 | 61/90mm | 112M | XM - RK - RW - XW - RG RC - RR - RS | NHD - NHDP -NMT -NPM | Series 47/59/66 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132S | RK - XW - RG RR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132M | RK - XW - XWL - SXW - SHP - RG | NMT -NPM -PXI - NLTI -XLTI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
160 | 61mm | 160M | X.W. - XWL - SWL - SHP |
Reviews from the client:
Shipping:
after 25~30days, we will deliver the goods, for loose goods are better packed by the pallet to avoid destroy
