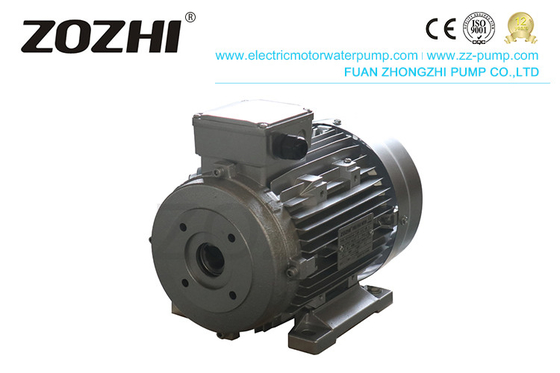

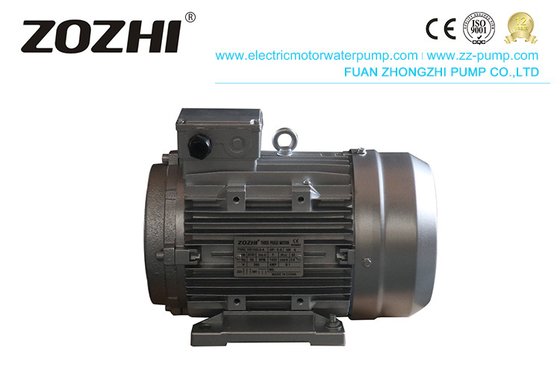

2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine

  • 2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine
  • 2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine
  • 2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number hollow shaft motor
Minimum Order Quantity 1pc
Price $44.6~$58.6
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Power 2.2kw/3hp
Shaft 24mm Speed 1400rpm
Housing Die Cast Aluminum Insulation Class B,F
Protection IP44 / IP54 Rated Voltage 380V
Application Cleaning Machine / Pressure Washer Machine
Highlight

3HP Hollow Shaft Electric Motor

,

Washing Machine Hollow Shaft Electric Motor

,

2.2KW Hollow Shaft Electric Motor
Leave a Message
Product Description

2.2KW 3HP Hollow Shaft electric Motor Car Motor Washing Machine

Technical Data
Power range
1.1~15kw
Rated Frequency
50Hz or 60HZ
Rated voltage
380V or order
Protection class
IP54 or IP55
Insulation class
F
Duty type
S1
Used
Washing machine,Reducer Air Compressor, Water Pump, Oil Pump, Packing and Food Mahcinery, etc.



2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine 0



1.  Hollow shaft motor With NMT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure cleaner, motor vehicle cleaning system, or spray system



2.  Hollow shaft motor With NPM pump

Environment: pressure ≤ 250bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure washing machine



3. 1 Hollow shaft motor With NMT-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: self-service car wash or more extended service life professional pressure washer



2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine 1





50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine 2


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



2.2KW 3HP Hollow Shaft Electric Motor Car Motor For Washing Machine 3
