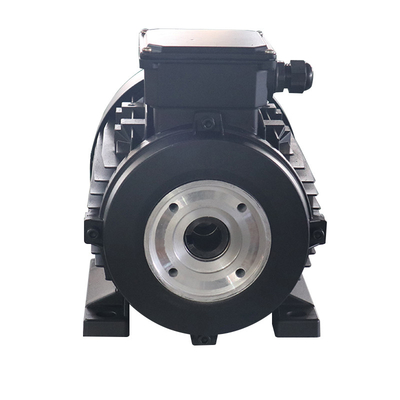

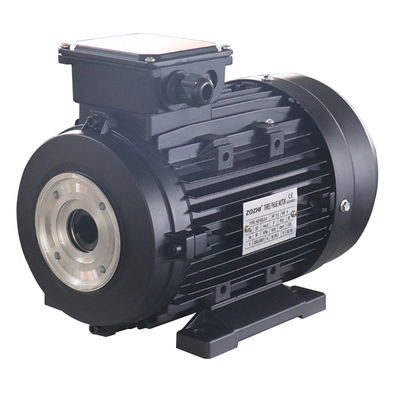

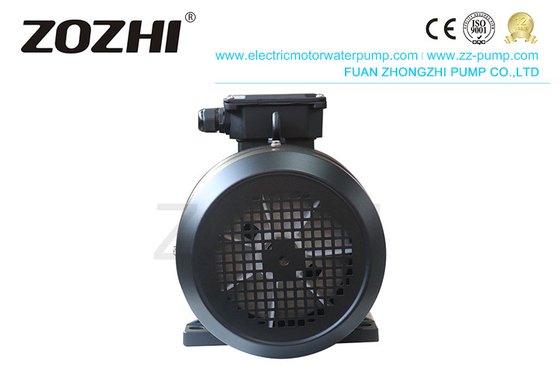

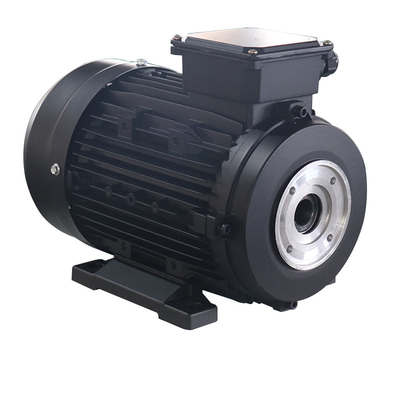

Single Phase 3 Hp Electrical Motor Hollow Shaft Portable For Car Washer

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS112M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application High Pressure Washer
Output 5.5KW/7.5HP Pole 4
Rotation Direction Clockwise Motor Winding. 100% Copper Winding
Efficiency IE 2 Motor Housing Aluminum
High Light

Hollow Shaft Portable 3 Hp Electrical Motor

,

Washer Hollow Shaft 3 Hp Electrical Motor

,

Single Phase Hollow Shaft Electric Motor

Leave a Message
Product Description

Single Phase 3 Hp Electrical Motor For Portable Car Washer

HOLLOW SHAFT Motors are mainly used in the hydraulic sector, the particular peculiarity of the machine is the ability to be coupled directly to the pump and immersed in the oil. For this reason, the materials used for this machine are specific and suitable for the resistance and aggressiveness of oily substances. Motors are designed to run in oil.
Application- Parking Systems, Hydraulic Powerpacks, Presses, and other Industrial Equipment





hollow shaft motor







Advantage:



1. Use high-quality magnetic materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.


2. high-quality bearings and rigid assembly to achieve low noise operation.


3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment significantly improves mechanical strength, seamless connection with gear, and worry-free operation.



Protection

hollow shaft motor is IP-44 protection as defined in IS:4691 Motors can be supplied with IP-54 and IP-55 on request



Insulation

Hollow shaft motors supply with class B&F insulation as a standard feature.



Terminal Box

all three-phase motor supply with a terminal box on top for Foot mounted. Other position boxes like left or right supply on customer request.



Shaft

Hollow shaft motor shaft made from high carbon steel pipe to provide exceptional strength&rigidity to minimize deflection. we can also supply the motor with stainless steel hollow shaft



Rotor

All hollow shaft motor rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Thus, it makes low motor amplitudes of vibration & noise.



Bearing&Lubrication:

hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with a C3 ball bearing & fully charged with lithium base grease at the time of assembly



Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line

Single Phase 3 Hp Electrical Motor Hollow Shaft Portable For Car Washer 1



Production data

Single-Phase 2 Poles 3000Rpm 50Hz

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3





Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23



Single Phase 3 Hp Electrical Motor Hollow Shaft Portable For Car Washer 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Single Phase 3 Hp Electrical Motor Hollow Shaft Portable For Car Washer 8
water pump water pump mechnical seal

Single Phase 3 Hp Electrical Motor Hollow Shaft Portable For Car Washer 12

Hollow Shaft Motor

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods are produced by ourselves. We provide one-stop services from designing and printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C.
