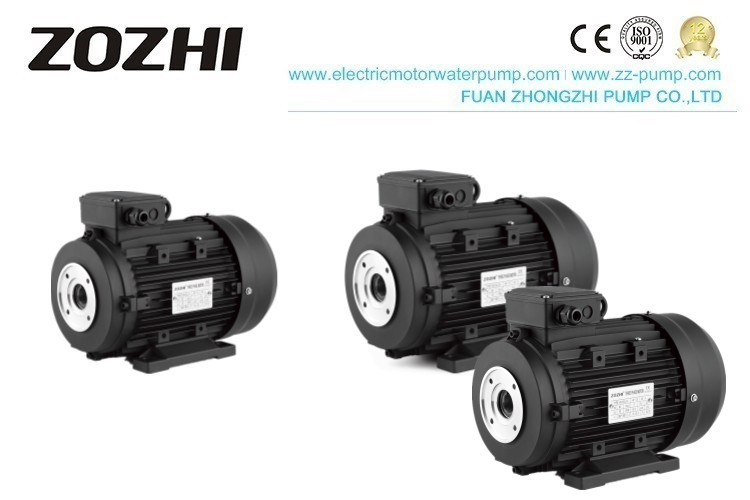

1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft

  • 1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft
  • 1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number 132M2-4
Minimum Order Quantity 1pc
Price $44.6~$58.6
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Power 11KW/15HP
Shaft 24mm Speed 1400rpm
Housing Die Cast Aluminum Insulation Class B,F
Protection IP44 / IP54 Rated Voltage 380V
Application Cleaning Machine / Pressure Washer Machine
High Light

Hollow Shaft Hydraulic Electric Motor

,

1400RPM Hydraulic Electric Motor

,

15HP Hollow Shaft Induction Motor
Leave a Message
Product Description

1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft

Hollow Shaft Motor

400V 15HP/11kW 1400 RPM 3 phase electric motor with a 24mm hollow/female shaft and IEC frame 160 for an electric pressure washer and many other applications.

This Nicolini electric motor is very high quality and Italian made.

Details:

  • Supply – 400V / 415V Three Phase
  • Power – 15HP / 11kW
  • RPM – 1400
  • Keyed Female Shaft – 24mm (Outer Diameter)
  • Width – 259mm
  • Height – 307mm
  • Length – 404mm
  • B14 Face Flange
  • IEC Frame – 160
  • Material – Aluminium



hollow shaft electric motor





50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

24mm Shaft AC Gear Motor Hollow Shaft Output For Car Washing 380V/60HZ 2.2KW 3KW 4KW 5.5KW 7.5KW


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



hollow shaft electric motor

1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft 3

1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft 4



Reviews from the client:



1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft 5

1400RPM Hydraulic Electric Motor 11kW 400V 15HP With 24mm Hollow Shaft 6



Shipping:

after 25~30days, we will deliver the goods, for loose goods are better packed by the pallet to avoid destroyed
