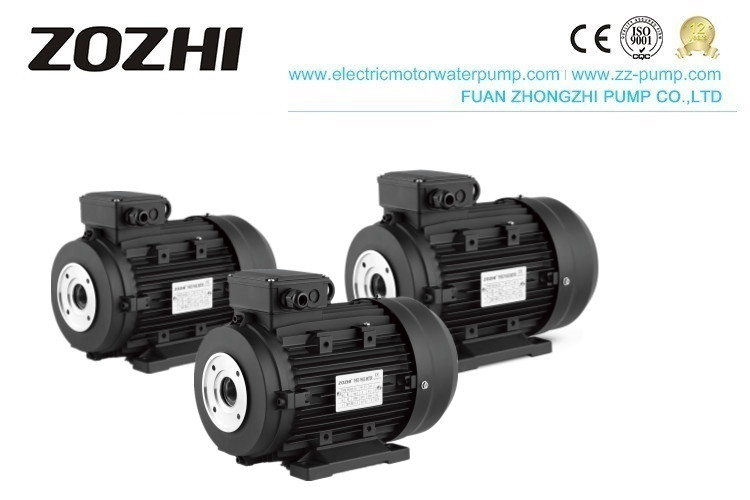

Die Cast Aluminum Hollow Shaft Motor IP44 Three Phase HS Series 380V

  • Die Cast Aluminum Hollow Shaft Motor IP44 Three Phase HS Series 380V
  • Die Cast Aluminum Hollow Shaft Motor IP44 Three Phase HS Series 380V
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number 112M2-4
Minimum Order Quantity 1pc
Price $44.6~$58.6
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Power 5.5kw/7.5Hp
Shaft 24mm Speed 1400rpm
Housing Die Cast Aluminum Insulation Class B,F
Protection IP44 / IP54 Rated Voltage 380V
Application Cleaning Machine / Pressure Washer Machine
High Light

Die Cast Aluminum Hollow Shaft Motor

,

IP44 Hollow Shaft Motor

,

380V Three Phase Shaft Motor
Leave a Message
Product Description

CHARACTERISTICS

Hollow Shaft Motor

AC/DC

three-phase, single-phase

Type

asynchronous

Voltage

400V, 690 V, 220V

Protection class

IP54

Configuration

hollow-shaft, aluminum

Number of poles

2-pole, 4-pole

Cooling mechanism

self-ventilated

Applications

for agribusiness, for pumps, for washdown applications, for offshore applications

Power

Min.: 1.85 kW (2.515 hp)

Max.: 11 kW (14.956 hp)

Rotational speed

Min.: 1,365 rpm (8,576.55 rad.min-1)

Max.: 2,870 rpm (18,032.74 rad.min-1)





DESCRIPTION

Motors for high-pressure pumps with hollow shafts and single bearings are designed for direct coupling. Motors fitted with elastic coupling Motors for high-pressure pumps are fitted with double flanges, two bearings, and flexible coupling. This build has reduced dimensions to combine the advantages of hollow shaft motors but retain the features of standard motors. Encapsulated motors with elastic coupling Orange 1 Group has developed the most advanced technology on the encapsulation process which we use on all of our asynchronous motors. We impregnate the entire stator in epoxy resin under vacuum to class F. This process completely eliminates any moisture due to humidity or condensation, inside the motor. This method considerably improves the electrical insulation and thermal dissipation of the motors. These motors are found in high humidity applications, namely; carwash, food processing, offshore applications,and swimming pool pumps to name just a few.

hollow shaft electric motor





50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

24mm Shaft AC Gear Motor Hollow Shaft Output For Car Washing 380V/60HZ 2.2KW 3KW 4KW 5.5KW 7.5KW


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP
