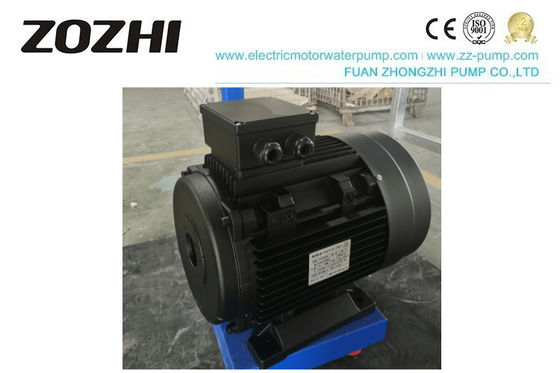

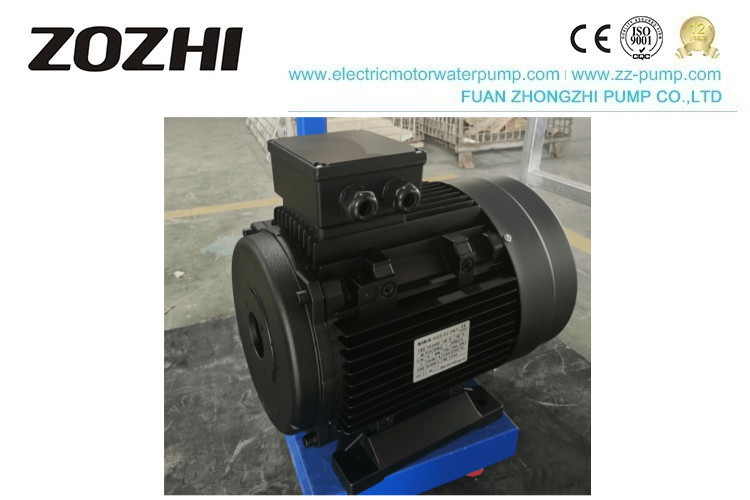

Cleaning Machine 1450Rpm Three Phase Hollow Motor For High Pressure Washer

  • Cleaning Machine 1450Rpm Three Phase Hollow Motor For High Pressure Washer
  • Cleaning Machine 1450Rpm Three Phase Hollow Motor For High Pressure Washer
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HSL160M1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Power 15KW/20HP
Shaft 24mm Speed 1450Rpm
Housing Aluminum Insulation Class B,F
Protection IP55 Rated Voltage 380V
Application Cleaning Machine / Pressure Washer Machine
Highlight

High Pressure Washer Hollow Motor

,

1450Rpm Three Phase Hollow Motor

,

Cleaning Machine Asynchronous Induction Motor
Leave a Message
Product Description

Three-phase hollow shaft motor for high-pressure washer

Hollow Shaft Motor

Mode: HS160M1-4

Horsepower: 15KW/20HP

RPM:1450

Shaft Size:24mm Hollow

Flange size:87/60

Voltage: 380V

Hertz: 50

Motor housing: Aluminum

Bearing: C&U

Shaft: C#45

Insulation: Class F

Protection: IP55

Installation: B3 Hollow shaft

Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine.

                       2. 100% high-quality copper wire



● For pressure washers pumps

● Hollow-shaft coupling for direct mounting to the pump, in just a few minutes

● No need to disassemble the motor front side

● Special executions on request





Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.





Hollow Shaft Electric Motor Application



MOTOR

CONSTRUCTION

SHAPE

 WEIGH RATED POWER OUTPUT SPPD VOLTAGE FOR PUMP SERIES
KG HP KW RPM
HS160M1-4 100 20 15 1450 380V

NMT

NPM

NMT Car Wash

1. 160M1-4 Hollow shaft motor With NMT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure cleaner, motor vehicle cleaning system or spray system



2. 160M1-4Hollow shaft motor With NPM pump

Environment: pressure ≤ 250bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure washing machine



3. 1160M1-4 Hollow shaft motor With NMT-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: self-service car wash or more extended service life professional pressure washer









50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

24mm Shaft AC Gear Motor Hollow Shaft Output For Car Washing 380V/60HZ 2.2KW 3KW 4KW 5.5KW 7.5KW


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP





hollow shaft electric motor



hollow shaft electric motor

hollow shaft motor

hollow shaft motor
