2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller

  • 2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller
Place of Origin CHINA
Brand Name ZOZHI
Certification ISO
Model Number HS 90L1-2
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 20 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application High Pressure Pump
Output 3HP / 2.2KW Full Speed 2820RPM
Voltage 400V Ampere 4.9A
Flange Size Hollow Shaft Pole 2
Highlight

2.2KW Hollow Shaft Hydraulic Motor

,

2820RPM Hollow Shaft Hydraulic Motor

,

Single Impeller Electric Induction Motor
Leave a Message
Product Description

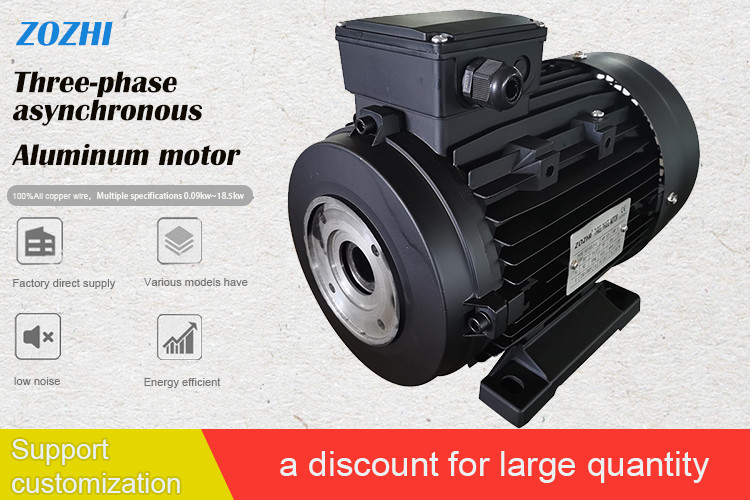

Three-phase hollow shaft motor for high-pressure washer



Hollow Shaft Motor


Description:
    H.S. series hollow shaft motors assemble to the high-pressure washer pump, and it can easily mount to most Annovi Reverberi pumps with a 70mm solid shaft. Brilliant new materials adopted, 100％ no refurbished parts.

Advantage:
    · Saving space and minimizing equipment dimensions
   · Lighter weight than a solid-bore brushless engine, stepper, or servo of the same size
   · Having high-quality materials and good heat dissipation
   · Seamlessly connected with equipment

Production Line:

 2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller 0


 2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller 1



 2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller 2

 Production Data:



Frame Size

Power

H.P. KW

Full Speed

(RPM)

COSФ

(P.F.)

Eff.

(％)

Volt

(V)

Ampere

(A)
50Hz / 2-pole
711-2 0.5 0.37 2780 0.82 82 400 0.8
712-2 0.75 0.55 2790 0.83 81 400 1.2
90L1-2

3

 2.2 2820 0.86 78 400 4.9
90L2-2 4 3 2820 0.86 78 400 6.6
90L3-2 5 3.7 2820 0.80 83 400 8.6
100L1-2 4 3 2840 0.83 81 400 7
100L2-2 5.5 4 2850 0.86 82 400 8.5
100M1-2 5.5 4 2830 0.84 82 400 9.4
112M2-2 7.5 5.5 2840 0.85 83 400 11.7
132S1-2 7.5 5.5 2890 0.86 84 400 11.6
132S2-2 10 7.5 2900 0.86 84 400 15.4
132M1-2 15 11 2920 0.88 86 400 21.8
132M2-2 20 15 2920 0.88 86 400 29.3
160M1-2 20 15 2920 0.87 88 400 28
160M2-2 25 18.5 2920 0.87 89 400 34
160M3-2 30 22 2920 0.87 89.2 400 41


 2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller 3

HOLLOW SHAFT MOTORSWIMMING POOL PUMPELECTRIC MOTOR

water pumpPRESSURE SWITCH2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller 9

water pumpwater pumpmechnical seal

 2.2KW Hollow Shaft Hydraulic Motor 2820RPM Single Impeller 13

Hollow Shaft Motor

Guarantee:

    Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:

    1. Directly factory sale
    2. Quick response to 2-8hours, response rates over 92%
    3. 24 hours phone call is available. Feel free to contact us.
    4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.





FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
