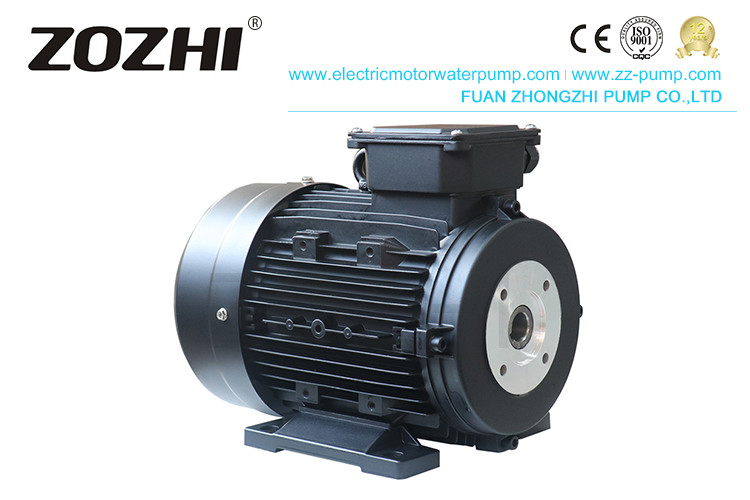

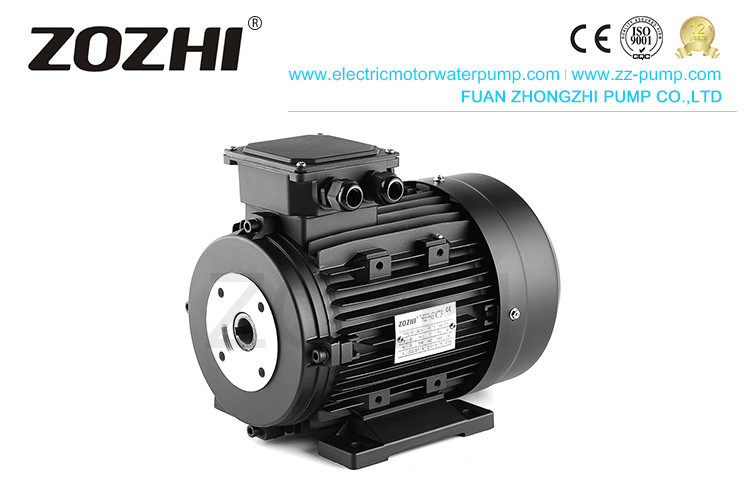

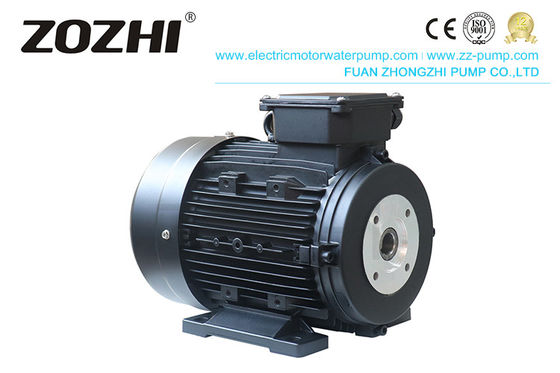

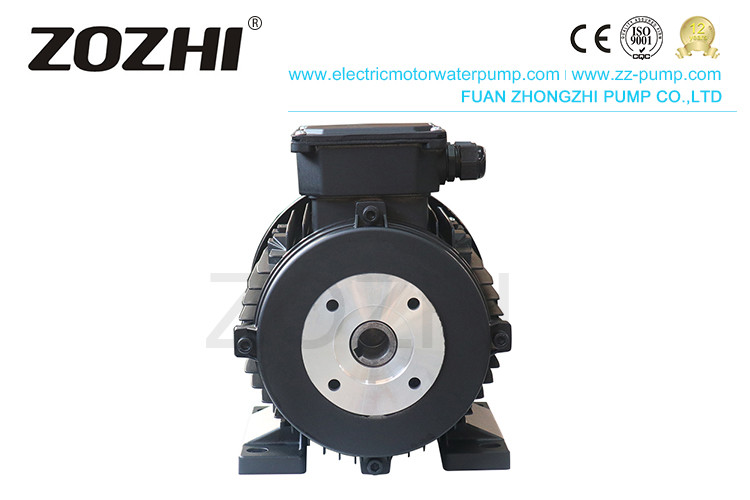

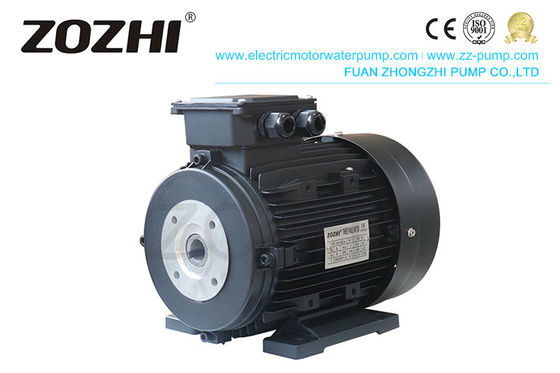

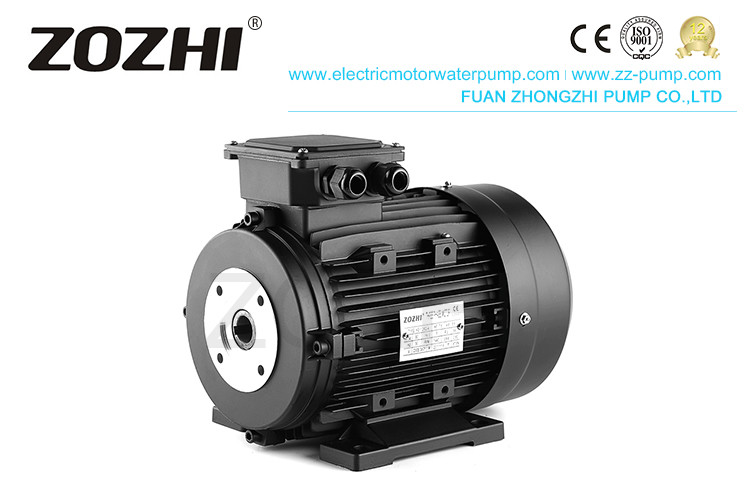

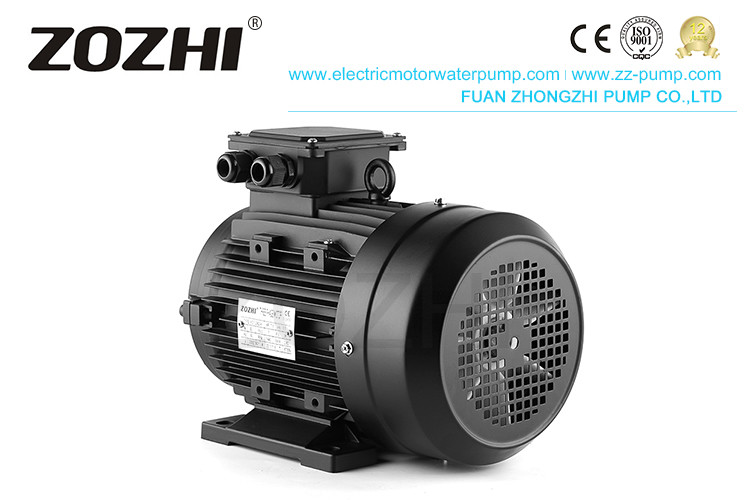

Three Phase 1400RPM IE3 24mm Hollow Shaft Induction Motor

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

Three-phase aluminum housing hollow shaft motor is an entire copper coil, fully enclosed design, air-cooled, concave metal tube design, squirrel cage A.C. asynchronous motor. The motor has good thermal conductivity, low current, low-temperature rise, good heat dissipation, low noise, ample starting torque, compact structure, and simple operation.

It is a 100% copper coil, high-quality bearing, high and light rotor, and rigid assembly. The shaft lift is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength, maintains all the technical and maintenance advantages of the standard motor, and conforms to the IEC standard. Therefore, it is an ideal choice for cleaning equipment.

Model: 100L2-4                             Horsepower: 4

RPM:1400                                     Shaft Size:24mm Hollow

Voltage: 400V                                Hertz: 50

Motor housing: Aluminum              bearing: C&U

Shaft: C#45                                   Insulation: Class F

Protection: IP55                            Installation: B3 Hollow shaft 24mm

Stator&Rotor:                                1. Cold-rolled silicon steel sheet by high-speed punching machine.

                                                      2.100% high-quality copper wire

Advantage:

High-quality material, good heat dissipation

high efficiency, low temperature, low noise

Seamlessly connect with equipment for worry-free operation.

Industry Information:

Summarization and analysis of the causes of heating of motor bearings

 Shaft's current caused many problems. Some motors may run poorly for a while, while some engines will have serious failures within a few hours. In many cases, it is considered to be a bearing quality problem regarding this problem. There's no way to solve the issue of repeated bearing replacement. It is a very effective measure to take in the design and manufacturing stage and select a better quality inverter during use.

Hollow Shaft Electric Motor Application

Hollow shaft motor connection high-pressure pump used for self-service car washes and professional high-pressure washers that require a longer service life.

Production line

Production data

Industry Information:

Can the motor efficiency be directly judged from the magnitude of the motor current?

For motor products, the efficiency value will be analyzed and calculated by the standard type test data. During the motor factory test, each motor manufacturer has its judgment standard. The motor's no-load current and no-load current are determined according to the motor's type test results. Load loss floating range determines whether the efficiency index of the engine meets the requirements.

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods are produced by ourselves. We provide one-stop services from designing and printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C...
