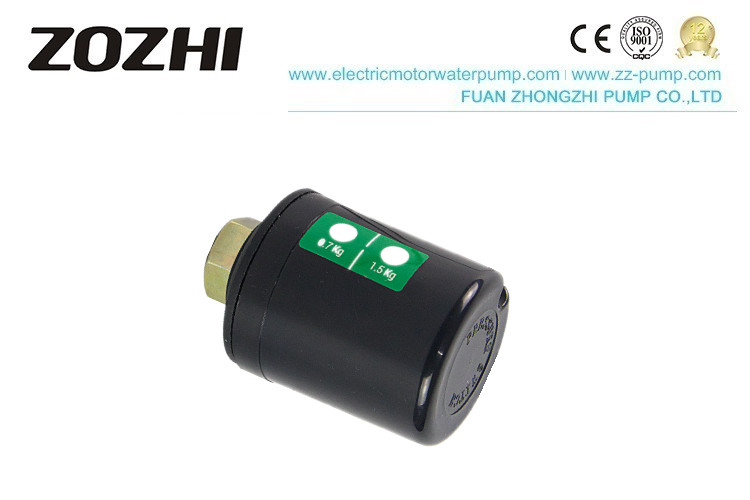

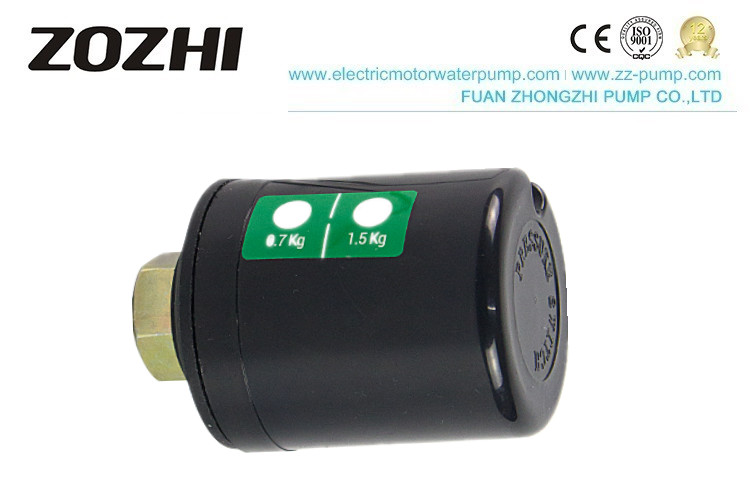

ZPS-2 Pressure Switch 1.8 Bar 12PSI Mechanical Water Pump

ZPS-2 Pressure Switch 1.8 Bar 12PSI Mechanical Water Pump
ZPS-2 Pressure Switch 1.8 Bar 12PSI Mechanical Water Pump

Large Image :  ZPS-2 Pressure Switch 1.8 Bar 12PSI Mechanical Water Pump

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: ZPS-2

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: USD$2
Packaging Details: Packed in cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: ZPS-2 Pressure Switch Rated Voltage: 230V; 110V
Frequency: 50/60HZ Rated Current: 5A;10A
Min.cut-in: 12PSI Min.cut-out: 45PSI
Pressure Range: 1.1-1.8Bar Bases: Zin Alloy
Screw Type: Female/Male Size: 1/4"; 3/8"
High Light:

12PSI Mechanical Water Pump

,

1.8 Bar Mechanical Water Pump

,

ZPS-2 Pressure Switch Water Pump



Rated voltage: 220V Rated current: 16A
Thread: 2′ male (1/4) Φ 12.5MM
3′ female (3/8)Φ 15MM
2′ female (1/4)Φ 12.5MM
Pressure & Model
1.0-1.8KG & 125W
1.2-2.2KG & 250W 300W 371W
1.8-2.5KG & 550W
2.2-3.0KG & 750W
Generally, as long as the model and pressure correspond.



Low pressure 1.1kg/cm², high point pressure 1.8kg/cm²

The initial state of the pressure switch is "on" and only to reach a high point (1.8kg/cm² or more) pressure will be a disconnect.
When the pressure in the line is released to the switch low pressure (1.1kg / cm² below) will be reconnected, the pressure reaches a high point (1.8kg / cm ² above) pressure will be a disconnect, so repeat the cycle of work.



Model
ZPS-2
Dimension
52*26.5*19CM
Quantity
100PCS/CTN
N.W(kg)
17 KGS
G.W(kg)
19 KGS
Model
Pressure Range
Screw Type
Base Material
ZPS-2A-0.8
0.8-1.5kg
Female 3/8"
Plastic
ZPS-2B-0.8
0.8-1.5kg
Female 3/8"
Zin alloy
ZPS-2C-0.8
0.8-1.5kg
Male 1/4"
Plastic
ZPS-2A-1.1
1.1-1.8kg
Female 3/8"
Zin alloy
ZPS-2B-1.1
1.1-1.8kg
Female 3/8"
Plastic
ZPS-2C-1.1
1.1-1.8kg
Male 1/4"
Zin alloy
ZPS-2A-1.3
1.3-2.3kg
Female 3/8"
Plastic
ZPS-2B-1.3
1.3-2.3kg
Female 3/8"
Zin alloy
ZPS-2C-1.3
1.3-2.3kg
Male 1/4"
Plastic
ZPS-2A-2.0
2.0-3.0kg
Female 3/8"
Zin alloy
ZPS-2B-2.0
2.0-3.0kg
Female 3/8"
Plastic
ZPS-2C-2.0
2.0-3.0kg
Male 1/4"
Zin alloy
ZPS-2A-2.5
2.5-3.5kg
Female 3/8"
Plastic
ZPS-2B-2.5
2.5-3.5kg
Female 3/8"
Zin alloy
ZPS-2C-2.5
2.5-3.5kg
Male 1/4"
Plastic
ZPS-2A-3.0
3.0-4.0kg
Female 3/8"
Zin alloy
ZPS-2B-3.0
3.0-4.0kg
Female 3/8"
Plastic
ZPS-2C-3.0
3.0-4.0kg
Male 1/4"
Zin alloy
