Cast Iron 2.2kw 5hp Single Phase Induction Motor YL100L1-4

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YL100L1-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electric Motor Water Pump Application General Driving
Output 2.2KW/5HP Pole 4
Protection Class IP54 Frequency 50Hz
High Light

5hp Single Phase Induction Motor

,

2.2kw Single Phase Induction Motor

,

YL100L1-4

Leave a Message
Product Description

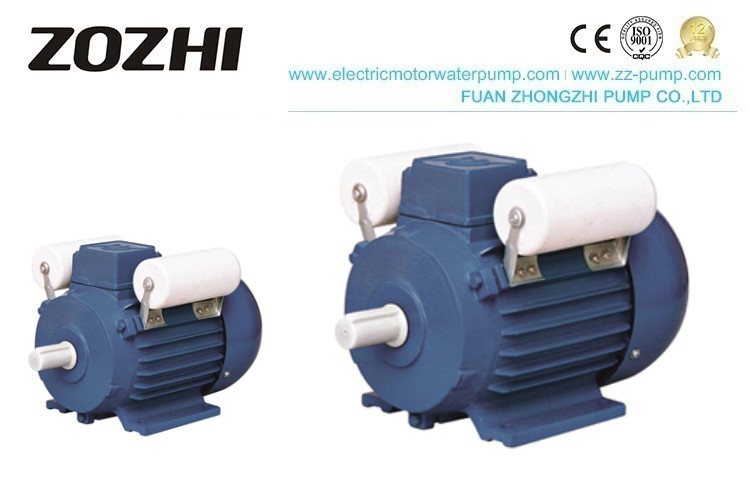

Cast Iron 2.2kw 5hp Single Phase Induction Motor YL100L1-4
Electric Motor Water Pump Product Description

YL series single-phase dual capacitor induction motor is designed and manufactured following national standards, newly developed by our company with low noise, compact construction, lightweight, easy maintenance, etc.



These motors are widely used in air compressors, pumps, fans, refrigerators, medical instruments, small-size machines, etc.

Especially for the occasion where only a single-phase power supply is available



Electric Motor Water Pump Product Feature
  • Ambient temperature: -15℃≤θ≤40℃
  • Altitude: ≤1000m
  • Protection class: IP44
  • Insulation class: Class B
  • Rated voltage: 220V, other voltage on request
  • Cooling type: IC 0141
  • Duty: Continuous(S1)
  • Rated frequency: 50HZ, other frequency on request
Electric Motor Water Pump Application / Models
This series can be widely used for agricultural machinery (crushers, threshers, and millers), food-processing machines, woodworking machinery, air compressors, fans, pumps, and all kinds of small-sized machines tools.





YL Series single-phase induction motor Data.

Model Power (V)   Speed Eff. P.F. Tstart/Tn Ist/In Tmax/Tn N.W.(kg)
HP KW (A) (r.p.m) (%)
YL711-2 1/2 0.37 220 2.73 2880 67 0.92 1.8 16 1.8 8
YL712-2 3/4 0.55 220 3.88 2880 70 0.92 1.8 21 1.8 9
YL801-2 1 0.75 220 5.15 2800 72 0.92 1.8 29 1.8 11
YL802-2 1.5 1.1 220 7.02 2800 75 0.95 1.8 40 1.8 12
YL90S-2 2 1.5 220 9.44 2820 76 0.95 1.7 55 1.8 13
YL90L-2 3 2.2 220 13.7 2820 77 0.95 1.7 80 1.8 17
YL711-4 1/3 0.25 220 1.99 1400 62 0.92 1.8 12 1.8 8
YL712-4 1/2 0.37 220 2.81 1400 65 0.92 1.8 16 1.8 9
YL801-4 3/4 0.55 220 4 1400 68 0.92 1.8 21 1.8 11
YL802-4 1 0.75 220 5.22 1400 71 0.92 1.8 29 1.8 12
YL90S-4 1.5 1.1 220 7.21 1420 73 0.95 1.7 40 1.8 13
YL90L-4 2 1.5 220 9.57 1420 75 0.95 1.7 55 1.8 17
YL100L1-4 3 2.2 220 13.9 1420 76 0.95 1.7 80 1.8 26
YL100L2-4 4 3 220 18.6 1420 77 0.95 1.7 110 1.8 28
YL112M-4 3 2.2 220 13.9 1440 76 0.95 1.7 80 1.8 31
YL112M1-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 34
YL112M2-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 38
YL132SA-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 55
YL132SB-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 60



Reviews from the client:

Cast Iron 2.2kw 5hp Single Phase Induction Motor YL100L1-4 0



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A











Cast Iron 2.2kw 5hp Single Phase Induction Motor YL100L1-4 2

centrifugal water pump vortex water pump



YC single phase electric motor



single phase induction motor



Cast Iron 2.2kw 5hp Single Phase Induction Motor YL100L1-4 6

Cast Iron 2.2kw 5hp Single Phase Induction Motor YL100L1-4 7



Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
