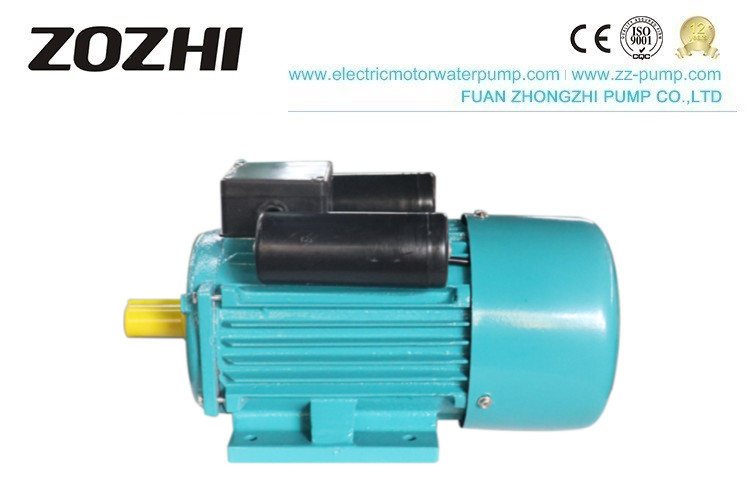

YC Series Single Phase 1.5kw 2Hp Ac Induction Motor IP44 220V

YC Series Single Phase 1.5kw 2Hp Ac Induction Motor IP44 220V

Electric Motor Water Pump

YC asynchronous motor is a low-voltage 1-phase cage induction electric motor, a basic series for general uses with frame range 80-160, and it's a new product with the national unified design.

YC induction motor has the advantages of high efficiency, energy-saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque, Fixing measurement, and power grade completely conform to IEC standard. In addition, it employs Grade F insulation, IP54 or IP55 class for shell protection, and IC411 cooling mode.

YC electric motor is commonly applied in machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, agitator, air compressor, etc.

Electric Motor Water Pump OPERATING LIMITS:

Ambient temperature:-15℃<0<40℃

Ambient temperature: not exceed 1000meters

Rated voltage:220V

Rated frequency:50Hz/60Hz

Duty/Rating:Continuous(running)

Insulation class: Class B/F

Protection class:IP44/54,

Cooling method: ICO141

Model Power (A) P.F. Eff.(%) Speed (r/min) Tstart/Tn Ist/In Tmax/Tn kW HP YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2 YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2 YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2 YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2 YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2 YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2 YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2 YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2 YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2 YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2 YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2 YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2 YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2 YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2 YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2 YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2 YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2 YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2 YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2 YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2 YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2

Reviews from the client:

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
