YC Capacitor Start 3KW 4HP Electric Asynchronous Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number YC132S1-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YC132S1-4 Output 3KW/4HP
Material Cast Iron Phase Single Phase
Voltage 220V Insulation Class B
Protection IP44 Duty S1
Product Name Electric Motor Water Pump
High Light

4HP Electric Asynchronous Motor

,

3KW Electric Asynchronous Motor

,

YC Capacitor Start Pump Motor

Leave a Message
Product Description

Y.C. Capacitor Start 3KW 4HP Electric Asynchronous Motor



Electric Motor Water Pump



MOTOR ADVANTAGE:

1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output.
3. Nice painting after installing the motor
4. Reasonable price with high quality and kind service.
5. Used for machinery without special requirements.
6. Longer working life, easy construction, convenient installation, and repairmen



APPLICATIONS:



Y.C. asynchronous motor is a low-voltage 1-phase cage induction electric motor, an essential series for general uses with frame range 80-132, and it's a new product with the unified national design.

Y.C. induction motor has the advantages of high efficiency, energy-saving, acceptable operation performance, slight vibration, low noise, long service life, high reliability, convenient maintenance, ample breakaway torque, Fixing measurement, and power grade completely conform to IEC standard. In addition, it employs Grade F insulation, IP54 or IP55 class for shell protection, and IC411 cooling mode.

Y.C. electric motor is commonly applied in machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, agitator, air compressor, etc.



OPERATING LIMITS:



Ambient temperature:-15℃<0<40℃

Ambient temperature: not exceed 1000meters

Rated voltage:220V

Rated frequency:50Hz/60Hz

Duty/Rating:Continuous(running)

Insulation class: Class B/F

Protection class: IP44/54

Cooling method: ICO141





Model Power
(A)
P.F. Eff.(%) Speed
(r/min)
Tstart/Tn Ist/In Tmax/Tn
kW HP
YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2
YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2
YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2
YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2
YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2
YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2
YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2
YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2
YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2
YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2
YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2
YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2
YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2
YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2
YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2
YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2
YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2
YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2
YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2
YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2
YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2






Reviews from the client:

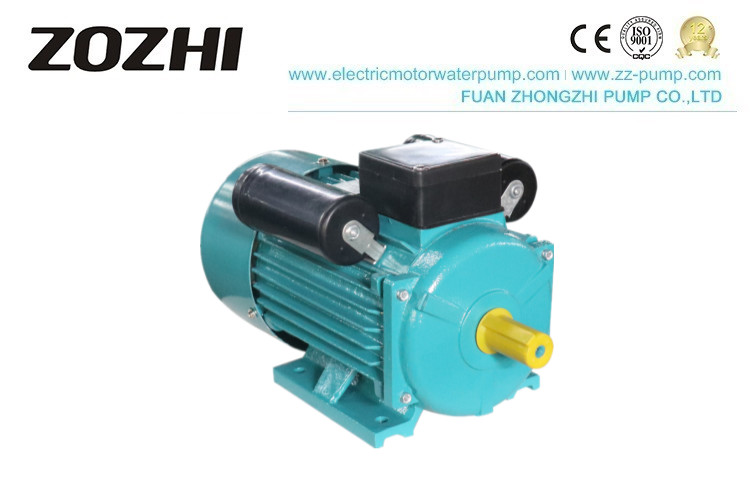

YC Capacitor Start 3KW 4HP Electric Asynchronous Motor 2



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A

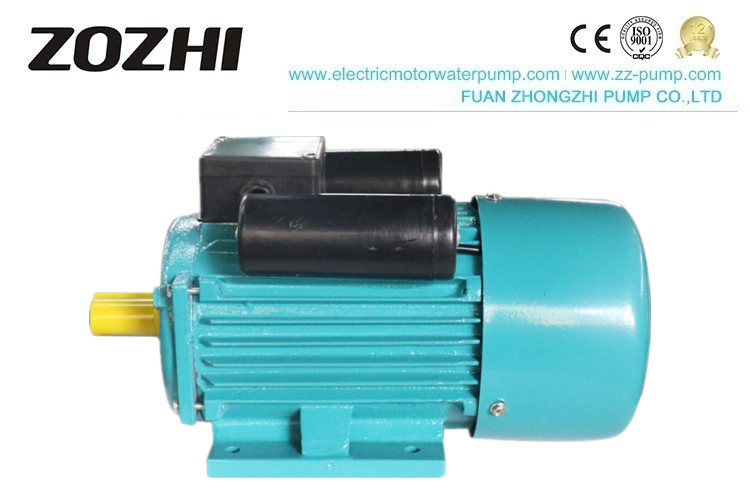

YC Capacitor Start 3KW 4HP Electric Asynchronous Motor 4

centrifugal water pump vortex water pump



YC single phase electric motor



single phase induction motor



YC Capacitor Start 3KW 4HP Electric Asynchronous Motor 8

YC Capacitor Start 3KW 4HP Electric Asynchronous Motor 9



Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
