YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors

  • YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors
  • YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number YC90L-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YC100L-4 Output 1.1kw/1.5Hp
Material Cast Iron Phase Single Phase
Voltage 220V Insulation Class B
Protection IP44 Duty S1
Product Name Electric Motor Water Pump
High Light

1.5Hp Single Phase Pump Motors

,

1.1KW Single Phase Pump Motors

,

YC90L-4
Leave a Message
Product Description

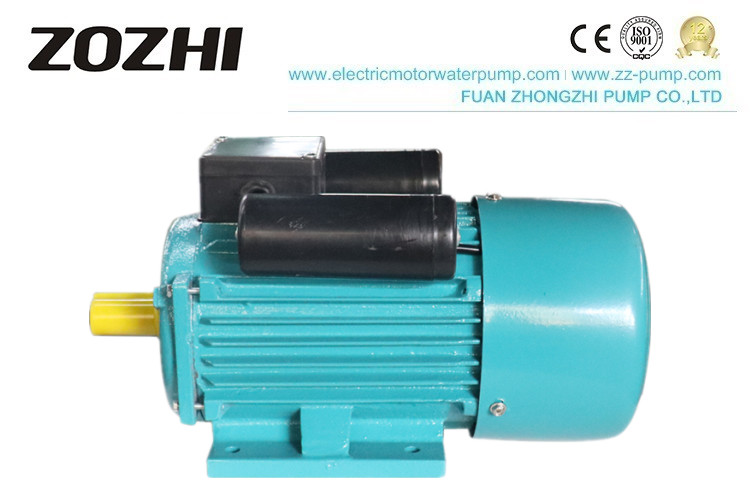

YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors



Electric Motor Water Pump


IEC standards, IP44, Class B insulation, Class F available. Continuous S1 operation. High-strength cast iron frame. Low operating temperature.

These single-phase HEAVY-DUTY capacitor start motors are made to IEC standards. These fine motors deliver excellent torque, enabling the most challenging jobs to handle dependable ease. They perform well in high voltage fluctuating regions and are commonly used in the pumping, compressor, agriculture, farming, building service,  and manufacturing industry.

MOTOR FEATURES
IP44 enclosures
Class B insulation, Class F are available on request
Low operating temperature
High-quality magnet wire
Vacuum varnish impregnation for superior tropic proof insulation
Continuous S1 operation
Industrial type service factors
Heavy-duty ball bearings
High strength cast iron frame
Balanced rotors
Cool running motors

CUSTOMER BENEFITS
Water dust and vermin resistant
Quiet operation
Corrosion-resistant
Reliable in country, city, or factory environments
Very low vibration
Deficient power consumption
Superior life
Suitable for hot environments
Low start current and EMC interference





Model Power
(A)		 P.F. Eff.(%) Speed
(r/min)		 Tstart/Tn Ist/In Tmax/Tn
kW HP
YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2
YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2
YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2
YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2
YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2
YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2
YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2
YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2
YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2
YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2
YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2
YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2
YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2
YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2
YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2
YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2
YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2
YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2
YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2
YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2
YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2






Reviews from the client:

YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors 2



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A









​



YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors 4

centrifugal water pump vortex water pump



YC single phase electric motor



single phase induction motor



YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors 8

YC90L-4 1.5Hp 1.1KW IP44 Single Phase Pump Motors 9



Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
