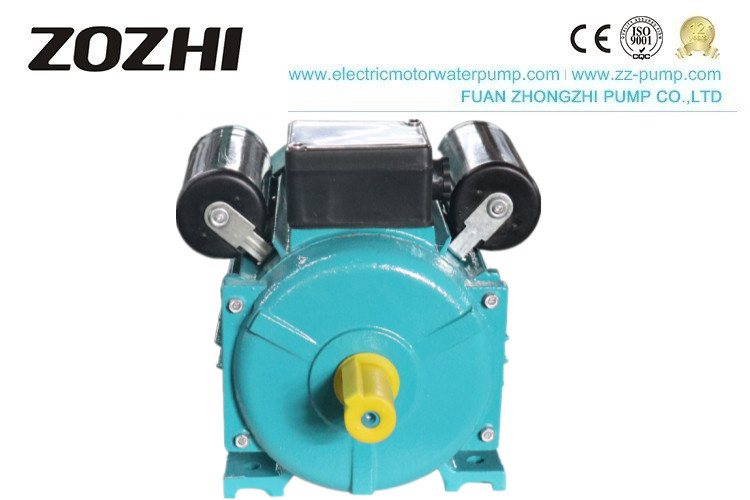

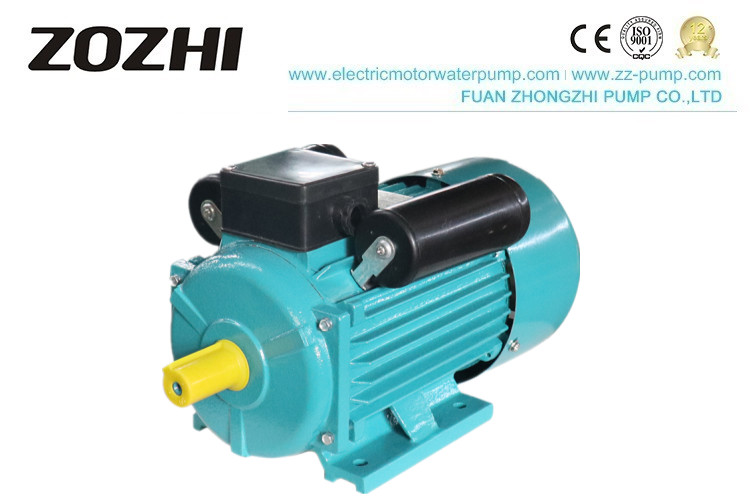

1.5kw 2Hp Double Capacitor Electric Induction Motor YC100L-4

1.5kw 2Hp Double Capacitor Electric Induction Motor YC100L-4

Electric Motor Water Pump

YC series heavy-duty single-phase motors of the "ZOZHI" brand are suitable for small machine tools and water pumps, especially for family workshops where only single-phase power is supplied. This series of motors are designed with the latest technology, manufactured with quality materials, have the following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.

Y.C. series motors are of IP44 enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque 60Hz is 2.75 times more. In addition, capacitors' start and run type for Motors 4HP and above has the following features: high starting torque, smooth running, low-temperature rise, low noise, and more excellent overload performance.

Operating Conditions:
Ambient temperature: -15℃≤θ≤40℃

Above sea level: not exceed 1000m

Rated voltage: ±5%

Model Power (A) P.F. Eff.(%) Speed (r/min) Tstart/Tn Ist/In Tmax/Tn kW HP YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2 YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2 YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2 YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2 YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2 YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2 YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2 YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2 YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2 YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2 YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2 YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2 YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2 YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2 YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2 YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2 YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2 YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2 YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2 YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2 YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2

Reviews from the client:

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
