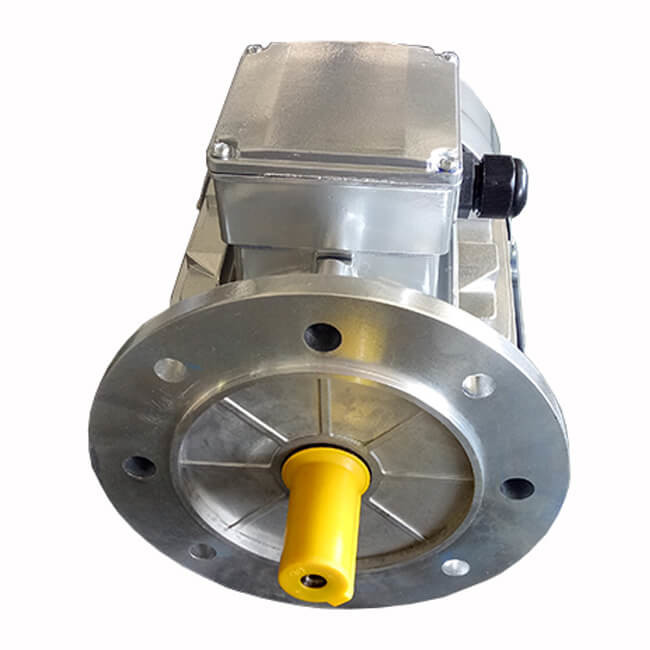

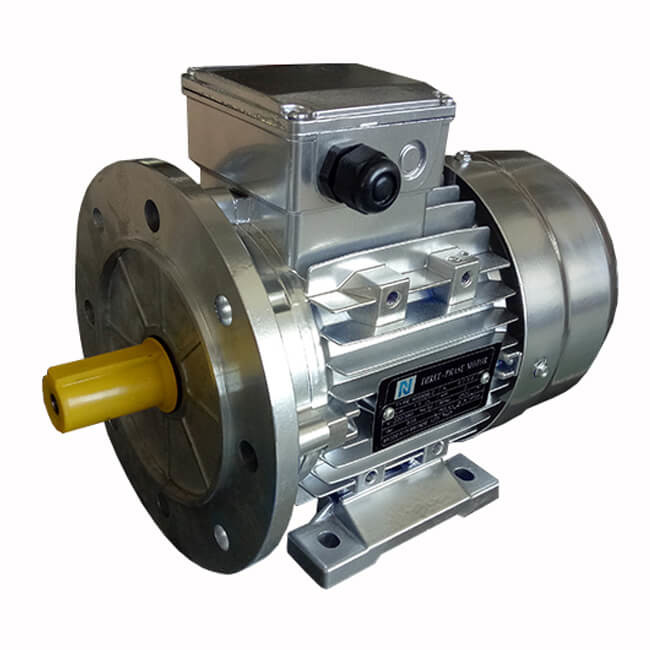

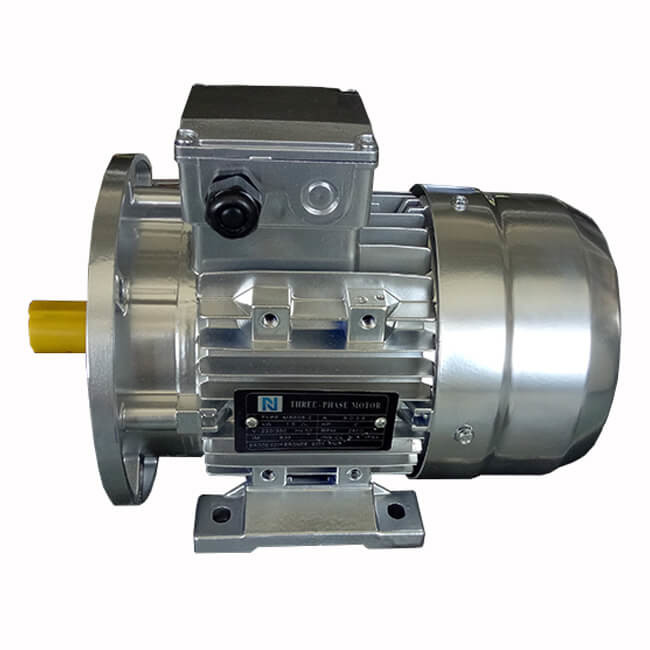

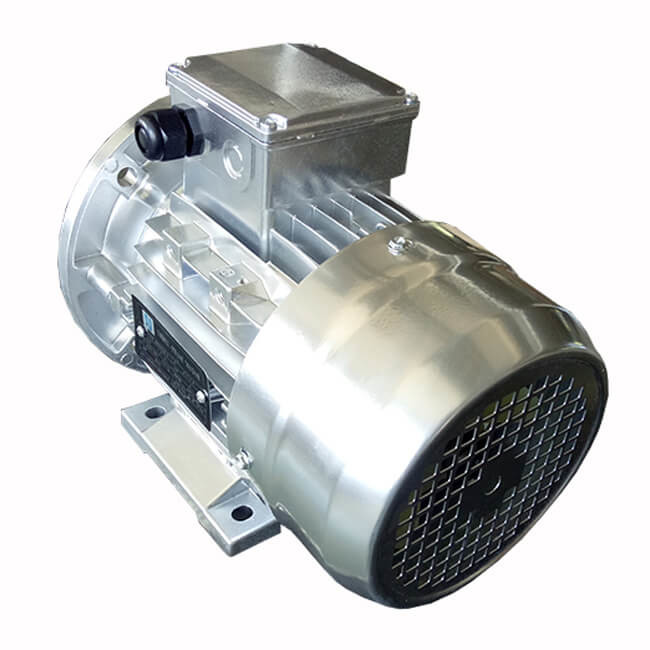

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor
MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor

Large Image :  MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE
Model Number: MS IE3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD piece
Packaging Details: Plywood box
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 piece per month
Detailed Product Description
Power: 0.75 1.1 1.5 2.2 3 4 5.5 7.5 KW Application: Industry Machine
Standard Or Nonstandard: Standard Voltage: 380V 400V 440V 460V
Warranty: One Year Material: Aluminum
Product Name: Electric Motor Water Pump Color: Customer Specifications
Motor: Three Phase Feature: High Efficiency
Duty Cycle: Continuous Frequency: 50HZ 60 Hz
Oem: Availiable
High Light:

EFF2 Electric AC Induction Motor

,

7.5 KW Electric AC Induction Motor

,

MS IE3 Three Phase Motor



MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor

Electric Motor Water Pump Product Description



Electric Motor Water Pump

1. MS series electric motors adopt the latest design and high-quality material. In addition, MS series motors conform to the IEC standard in function, appearance, output, and other requirements.


2. The efficiency of MS series motors meets the EFF2 standard in E. U. and can reach the EFF1 standard if requested.

3. MS series motors have many advantages, including high energy-saving, low noise, little vibration, lightweight, small volume, reliable operation, up-to-date appearance, convenient operation, and maintenance.

Warranty: 1 Year (according to our general sales conditions)
If you need more information about this series, please feel free to contact us.



TYPE Output (kW) Volt(V) Current (A) Speed(r/min) Eff(%) Power Factor Tstart/Tn Tmax/Tn Ist/In Weight(kg)
MS561-2 0.09 220/380 0.57/0.33 2800 62 0.68 2.3 2.4 6 4.6
MS562-2 0.12 220/380 0.67/0.38 2800 67 0.71 2.3 2.4 6 4.8
MS631-2 0.18 220/380 0.91/0.53 2800 69 0.75 2.2 2.4 6 5
MS632-2 0.25 220/380 1.17/1.68 2800 72 0.78 2.2 2.4 6 5.3
MS711-2 0.37 220/380 1.65/0.95 2800 74 0.8 2.2 2.4 6 6.5
MS712-2 0.55 220/380 2.33/1.35 2800 76 0.82 2.2 2.4 6 7
MS801-2 0.75 220/380 3.03/1.75 2800 77 0.85 2.2 2.4 6 9.5
MS802-2 1.1 220/380 4.42/2.55 2800 77 0.85 2.2 2.4 6 11
MS90S-2 1.5 220/380 6.01/3.84 2800 77 0.85 2.2 2.4 6 14.5
MS90L-2 2.2 220/380 8.61/4.98 2800 78 0.86 2.2 2.4 6 17
MS100L-2 3 220/380 11.1/6.4 2870 82 0.87 2.2 2.3 7 24.5
MS112M-2 4 380/660 8.2/4.7 2890 86 0.87 2.2 2.3 7 30
MS132S1-2 5.5 380/660 11/6.3 2900 86 0.88 2 2.2 7 42
MS132S2-2 7.5 380/660 15/8.6 2900 86 0.88 2 2.2 7 50
MS561-4 0.06 220/380 0.49/0.28 1400 56 0.58 2.3 2.4 6 4.6
MS562-4 0.09 220/380 0.67/0.39 1400 58 0.61 2.3 2.4 6 4.8
MS631-4 0.12 220/380 0.84/0.48 1400 60 0.63 2.2 2.4 6 4.8
MS632-4 0.18 220/380 1.12/0.65 1400 64 0.66 2.2 2.4 6 5
MS711-4 0.25 220/380 1.44/0.83 1400 67 0.68 2.2 2.4 6 6.3
MS712-4 0.37 220/380 1.94/1.12 1400 70 0.72 2.2 2.4 6 7
MS801-4 0.55 220/380 2.69/1.56 1400 74 0.73 2.2 2.4 6 9.5
MS802-4 0.75 220/380 3.48/2.01 1400 76 0.75 2.2 2.4 6 11
MS90S-4 1.1 220/380 4.74/2.75 1400 78 0.78 2.2 2.4 6 14.5
MS90L-4 1.5 220/380 6.31/3.65 1400 79 0.79 2.2 2.4 6 16
MS100L1-4 2.2 220/380 8.6/5.0 1430 81 0.82 2.2 2.3 7 23
MS100L2-4 3 220/380 11.7/6.8 1430 83 0.81 2.2 2.3 7 27
MS112M-4 4 380/660 8.8/5.1 1440 85 0.82 2.2 2.3 7 33.5
MS132S-4 5.5 380/660 12/6.9 1440 86 0.84 2.2 2.2 7 49.5
MS132M-4 7.5 380/660 15/8.6 1440 87 0.85 2.2 2.2 7 57.5
MS90S-6 0.75 220/380 4.0/2.3 910 73 0.7 2.2 2.2 5.5 14.5
MS90L-6 1.1 220/380 5.5/3.2 910 74 0.72 2.2 2.2 5.5 17
MS100L-6 1.5 220/380 6.9/4.0 940 78 0.74 2.2 2.2 6 22.5
MS112M-6 2.2 220/380 9.7/5.6 940 81 0.74 2.2 2.2 6 29
MS132S-6 3 220/380 12.4/7.2 960 83 0.76 2 2 6.5 48
MS132M1-6 4 380/660 9.4/5.4 960 84 0.77 2 2 6.5 49
MS132M2-6 5.5 380/660 13/7.5 960 85 0.78 2 2 6.5 57.5






Electric Motor Water Pump Product Description

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 0

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 1

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 2

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 3

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 4

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 5

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 6

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 7

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 8

MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 9



Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



MS IE3 4 Pole EFF2 7.5 KW Electric AC Induction Motor 10



FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pumps and motors in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about the delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air, and By express delivery.
Q6 About sample?
Available.
