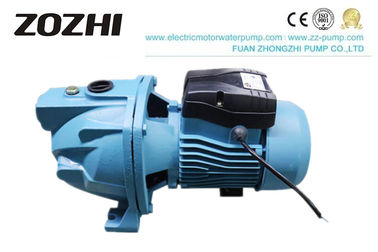

2.9A 1X1" 0.5HP JET60-L Self Priming Deep Well Pump

  • 2.9A 1X1" 0.5HP JET60-L Self Priming Deep Well Pump
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number JET60L
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type JET60-L Power 0.5hp/0.37kw
Current 2.9A Capacitor 12uf
H。max 30/40 Q,max 65/45L/min
Pipe Size 1“x1" Product Name Electric Motor Water Pump
High Light

JET60-L

,

0.5HP Self Priming Water Pump
Leave a Message
Product Description

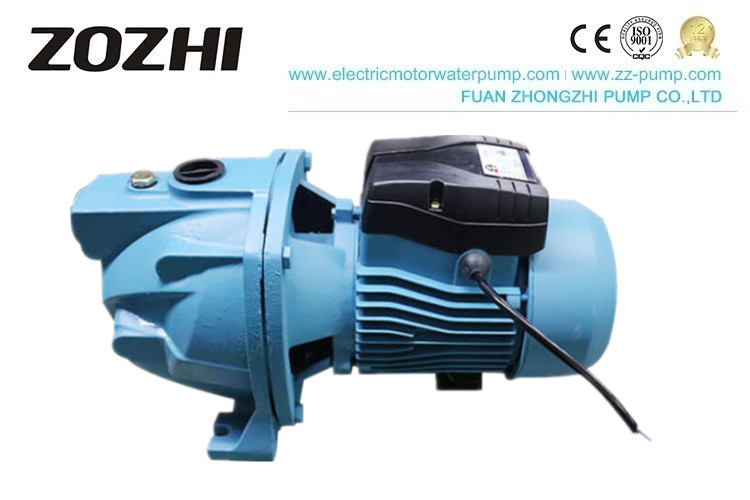

2.9A 1X1" 0.5HP JET60-L Self Priming Deep Well Pump



Electric Motor Water Pump Application

JET Self-priming deep-well pumps consist of an ejector unit and a centrifugal pump. The ejector unit can be put in a 4" diameter well. These pumps are suitable to convey clean water or non-aggressive chemical fluids. They are suitable to pump water from deep well and supply water automatically by pressure tank and pressure control. It is always advisable to install a foot valve with a strainer on the bottom of the inlet pipe.

Electric Motor Water Pump Operating conditions

Liquid temperature  -10℃~+100℃
Ambient temperature up to 40℃
Total suction lift to 9m

Max. working pressure 10 bar
Continuous duty S1



Electric Motor Water Pump Construct

Single Phase
Heavy-Duty Continuous Work
Motor: Closed, externally ventilated
Shaft: Carbon steel alsl 1045
(Stainless steel Alsl 420 if required)
Insulation Class b/Class F
Protection: P44/P54
Pump Body: Cast iron
Impeller: Brass/Techno-polymer
(P.P.O)Stainless Steel
Mechanical Seal: SIC/Ceramic/Graphite





Self-Priming Pump Data

Model Power Current Capacitor H.Max Q.Max Pipe Size
(HP) (W) (A) (UF) (m) (L/min) (m)
JET60-L 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-L 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-L 1 750 4.5 20 42/52 65/50 1”x1”
JETS-60 0.5 370 2.9 12 30/40 65/45 1”x1”
JETS-80 0.75 550 3.5 15 34/45 65/50 1”x1”
JETS-100 1 750 4.5 20 42/52 65/50 1”x1”
JET60-P 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-P 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-P 1 750 4.5 20 42/52 65/50 1”x1”
JSW60 0.5 370 2.9 12 30/40 65/45 1”x1”
JSW80 0.75 550 3.5 15 34/45 65/50 1”x1”
JSW100 1 750 4.5 20 42/52 65/50



JET self-priming pump



Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
