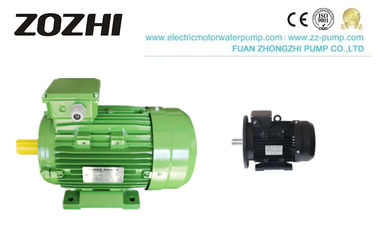

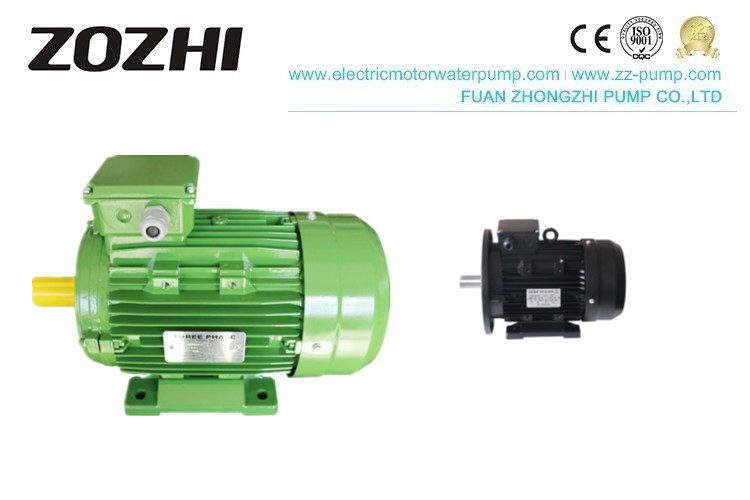

1.5KW 2HP IEC EFF2 Electric Motor Water Pump
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | IE2 MS90S-4 |
| Minimum Order Quantity | 10pcs |
| Price | negotiated |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Asynchronous Motor | Phase | Three Phase |
|---|---|---|---|
| Voltage | 380V | Frequency | 50HZ 60HZ |
| Protect Feature | Waterproof | Certification | CCC, CE |
| Efficiency | IE2 | Poles | 2/4/6/8 Poles |
| Housing | Aluminium | Cooling Method | ICO141 |
| Duty | S1(continuous) | Warranty | 1 Year |
| Product Name | Electric Motor Water Pump | ||
| Highlight | 2HP Electric Water Pump,EFF2 Asynchronous Motor Pump |
||
Product Description
1.5KW 2HP IEC EFF2 Electric Motor Water Pump
Electric Motor Water Pump Description
1. MS series electric motors adopt the latest design and high-quality material. In addition, MS series motors conform to the IEC standard in function, appearance, output, and other requirements.
2. The efficiency of MS series motors meets the EFF2 standard in E. U. and can reach the EFF1 standard if requested.
3. MS series motors have many advantages, including high energy-saving, low noise, little vibration, lightweight, small volume, reliable operation, up-to-date appearance, convenient operation, and maintenance.
Warranty: 1 Year (according to our general sales conditions)
If you need more information about this series, please feel free to contact us.
| Type: | MS |
| Ambient temperature | -15--40℃ |
| Altitude | ≤1000 mm |
| Frequency | 50/60hz ±2% |
| Voltage | 380v ±5% |
| Protection Class | IP54 |
| Insulation Class | B |
| Way of working | S1 |
| Place of origin | FUAN |
| Speed range | 0-100HZ |
Electric Motor Water Pump Technical Data
| Model | Power | (V) | (A) | (r/min) | Eff. (%) | P.F. | Ist/In | Tmax/Tn | |||
| Kw | HP | 50% | 75% | 100% | |||||||
| IE2 MS801-2 | 0.75 | 1 | 230/400 | 3.0/1.73 | 2800 | 76.5 | 77.3 | 77.4 | 0.813 | 2.2 | 2.3 |
| IE2 MS802-2 | 1.1 | 1.5 | 4.2/2.43 | 2800 | 79 | 80 | 79.6 | 0.825 | 2.2 | 2.3 | |
| IE2 MS90S-2 | 1.5 | 2 | 5.53/3.19 | 2820 | 80.2 | 81.5 | 81.3 | 0.837 | 2.2 | 2.3 | |
| IE2 MS90L-2 | 2.2 | 3 | 7.93/4.58 | 2820 | 82.2 | 83.5 | 83.2 | 0.837 | 2.2 | 2.3 | |
| IE2 MS100L-2 | 3 | 4 | 10.5/6.06 | 2830 | 84 | 85.1 | 84.6 | 0.848 | 2.2 | 2.3 | |
| IE2 MS112M-2 | 4 | 5.5 | 400/690 | 7.97/4.6 | 2850 | 85.4 | 86.8 | 85.8 | 0.848 | 2.2 | 2.3 |
| IE2 MS132S1-2 | 5.5 | 7.5 | 10.65/6.15 | 2870 | 86.7 | 87.3 | 87 | 0.86 | 2 | 2.3 | |
| IE2 MS132S2-2 | 7.5 | 10 | 14.35/8.28 | 2870 | 87.6 | 88.3 | 88.1 | 0.86 | 2 | 2.3 | |
| IE2 MS160M1-2 | 11 | 15 | 20.74/11.97 | 2900 | 89 | 89.8 | 89.4 | 0.86 | 2 | 2.3 | |
| IE2 MS160M2-2 | 15 | 20 | 27.99/16.16 | 2900 | 90 | 90.5 | 90.3 | 0.86 | 2 | 2.3 | |
| IE2 MS160L-2 | 18.5 | 25 | 33.83/19.53 | 2900 | 90.3 | 91 | 90.9 | 0.872 | 2 | 2.2 | |
| IE2 MS802-4 | 0.75 | 1 | 230/400 | 3.28/1.9 | 1380 | 77.3 | 79.8 | 79.6 | 0.72 | 2.3 | 2.3 |
| IE2 MS90S-4 | 1.1 | 1.5 | 4.57/2.64 | 1400 | 79.9 | 81.7 | 81.4 | 0.743 | 2.3 | 2.3 | |
| IE2 MS90L-4 | 1.5 | 2 | 6.02/3.48 | 1400 | 82.1 | 83.5 | 82.8 | 0.755 | 2.3 | 2.3 | |
| IE2 MS100L1-4 | 2.2 | 3 | 8.42/4.86 | 1420 | 82.6 | 84.5 | 84.3 | 0.778 | 2.2 | 2.3 | |
| IE2 MS100L2-4 | 3 | 4 | 11.32/6.54 | 1420 | 84.2 | 85.7 | 85.5 | 0.778 | 2.2 | 2.3 | |
| IE2 MS112M-4 | 4 | 5.5 | 400/690 | 8.47/4.89 | 1430 | 85.8 | 87 | 86.6 | 0.79 | 2.2 | 2.3 |
| IE2 MS132S-4 | 5.5 | 7.5 | 11.18/6.45 | 1450 | 87.4 | 88.3 | 87.7 | 0.813 | 2.2 | 2.3 | |
| IE2 MS132M-4 | 7.5 | 10 | 14.85/8.58 | 1450 | 88.2 | 89 | 88.7 | 0.825 | 2.2 | 2.3 | |
| IE2 MS160M-4 | 11 | 15 | 21.84/12.61 | 1460 | 89.1 | 90 | 89.8 | 0.813 | 2.2 | 2.3 | |
| IE2 MS160L-4 | 15 | 20 | 29.08/16.79 | 1460 | 90.2 | 91.1 | 90.6 | 0.825 | 2.2 | 2.3 | |
| IE2 MS90S-6 | 0.75 | 1 | 230/400 | 3.82/2.2 | 910 | 73.4 | 76.3 | 75.9 | 0.65 | 2 | 2.2 |
| IE2 MS90L-6 | 1.1 | 1.5 | 5.25/3.03 | 910 | 77 | 78.8 | 78.1 | 0.673 | 2 | 2.2 | |
| IE2 MS100L-6 | 1.5 | 2 | 6.77/3.91 | 940 | 79.6 | 80.8 | 79.8 | 0.697 | 2 | 2.2 | |
| IE2 MS112M-6 | 2.2 | 3 | 9.69/5.59 | 940 | 80.4 | 81.6 | 81.8 | 0.697 | 2 | 2.2 | |
| IE2 MS132S-6 | 3 | 4 | 12.56/7.25 | 960 | 81 | 83.4 | 83.3 | 0.72 | 2 | 2.2 | |
| IE2 MS132M1-6 | 4 | 5.5 | 400/690 | 9.36/5.4 | 960 | 82.7 | 84.5 | 84.6 | 0.732 | 2 | 2.2 |
| IE2 MS132M2-6 | 5.5 | 7.5 | 12.47/7.2 | 960 | 84.8 | 86.2 | 86 | 0.743 | 2 | 2.2 | |
| IE2 MS160M-6 | 7.5 | 10 | 16.78/9.69 | 970 | 86.4 | 87.5 | 87.2 | 0.743 | 2 | 2 | |
| IE2 MS160L-6 | 11 | 15 | 24.19/13.97 | 970 | 88.2 | 89.2 | 88.7 | 0.743 | 2 | 2 | |
Electric Motor Water Pump Performance comparison chart:
| ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM | ||||
| Power(kw) | eff2 (nominal) | eff1 (nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 79.6 | 82.5 |
| 1.1 | 76.2 | 83.8 | 81.4 | 84.1 |
| 1.5 | 78.5 | 85.0 | 82.8 | 85.3 |
| 2.2 | 81 | 86.4 | 84.3 | 86.7 |
| 3.0 | 82.6 | 87.4 | 85.5 | 87.7 |
| 4.0 | 84.2 | 88.3 | 86.6 | 88.6 |
| 5.5 | 85.7 | 89.2 | 87.7 | 89.6 |
| 7.5 | 87 | 90.1 | 88.7 | 90.4 |
| 11 | 88.4 | 91.0 | 89.8 | 91.4 |
| 15 | 89.4 | 91.8 | 90.6 | 92.1 |
| 18.5 | 90 | 92.2 | 91.2 | 92.6 |
| 22 | 90.5 | 82.6 | 91.6 | 93.0 |
| 30 | 91.4 | 93.2 | 92.3 | 93.8 |
| 37 | 92 | 93.6 | 92.7 | 93.9 |
| 45 | 92.5 | 93.9 | 93.1 | 94.2 |
| 55 | 93 | 94.2 | 93.5 | 94.6 |
| 75 | 93.6 | 94.7 | 94.0 | 95.0 |
| 90 | 93.9 | 95.0 | 94.2 | 95.2 |
| 110 | 94.5 | 95.4 | ||
| 132 | 94.7 | 95.6 | ||
| 160 | 94.9 | 95.8 | ||
| 200...375 | 95.1 | 96.0 | ||
Electric Motor Water Pump Application
Suitable for all kinds of machinery, such as fast stop, accurate positioning, reciprocating operation, frequent start, and prevent sliding. Such as water pump, transport machinery, fan blower, mixer, food machinery, construction machinery, CNC machinery, mining machinery, compressor, forging machinery, etc
Production Line
Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
Reviews from the client:
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
