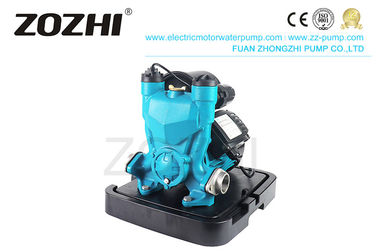

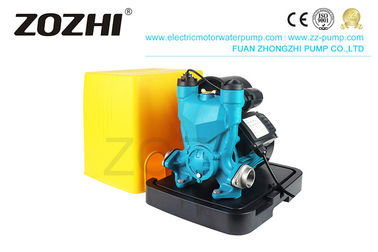

1"X1" 1.5 Bar 2L ZZHm-125A 0.15HP Electric Motor Water Pump

Place of Origin FUAN CHINA
Brand Name ZZHM
Certification CE,ISO
Model Number ZZHm-125A
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type ZZHM-125A Power 0.15hp/125W
Current 1.5A Capacitor 8uF
H.Max 30m Q.Max 32L
Pipe Size 1"x1" Pressure Set 1.5 Bar
Tank 2L Product Name Electric Motor Water Pump
High Light

0.15HP Electric Water Pump

,

125W Electric Pump Motor

Leave a Message
Product Description

1"X1" 1.5 Bar 2L ZZHm-125A 0.15HP Electric Motor Water Pump

Electric Motor Water Pump

Using PC chip control electronic pressure switch, avoid frequent take off pressure switch, long service life.



When the pump is not used for a long time, every 72h it will start for 10s to avoid the machine's lock.



When there is no inlet water, the water pump continuously detecting 8 minutes, automatically entering the water protection system. To avoid the pump in the anhydrous state-run for a long time.



Increase the startup delay function when the electric pump is inserted into the socket, delay 3s start, avoid spark-over socket, protect personal safety.



The flow priority system, electric pump use acme, truly achieve the full pressure.



Electric Motor Water Pump Application

household water supply

water supply system

cooling system

Boost system





Electric Motor Water Pump Working conditions



Max temperature of fluid up to +80°C

Max pressure 10bar

Max ambient temperature up to 40°C









intelligent water pump
Model Power Current Capacitor H.Max Q.Max Pipe Size Pressure Set Tank
(HP) (W) (A) (UF) (m) (L/min) (m) (bar) (L)
ZZHm-125A 0.15 125 1.5 8 30 32 1”x1” 1.5 2
ZZHm-250A 0.35 250 1.8 10 32 35 1”x1” 1.8 2
ZZHm-370A 0.5 370 2.4 10 36 36 1”x1” 2.2 2
ZZHm-550A 0.75 550 3.5 15 45 55 1”x1” 2.6 2
ZZHm-750A 1 750 4 20 55 58 1”x1” 2.8 2
ZZHm-110A 1.5 1100 4.8 25 62 66 1.5”x1.5” 3.2 2





Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
