Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump

  • Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump
  • Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump
  • Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump
  • Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump
  • Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump
Place of Origin China
Brand Name ZOZHI
Certification CE
Model Number 301-12
Minimum Order Quantity 1 piece
Price USD piece
Packaging Details Plywood box
Delivery Time 7 work days
Payment Terms L/C, T/T
Supply Ability 1000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 12mm, Standard Size Brand Name ZOZHI
Product Name Electric Motor Water Pump Pressure ≤0.5Mpa
Working Temperature -20~100℃ MOQ 1pcs
Quality Superior Place Of Origin Fujian, China
Model Number ZZ 301-12 Application Water Pumps
Speed ≤10m/sec Packing Carton Box
Highlight

12mm mechanical water pump

,

0.5mpa electric water transfer pump
Leave a Message
Product Description

Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump



 Detailed Images

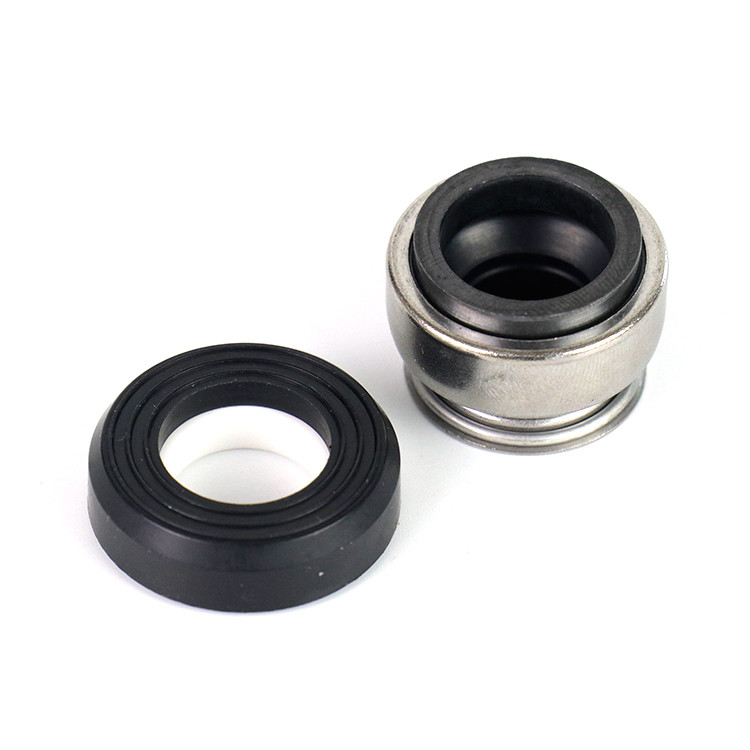

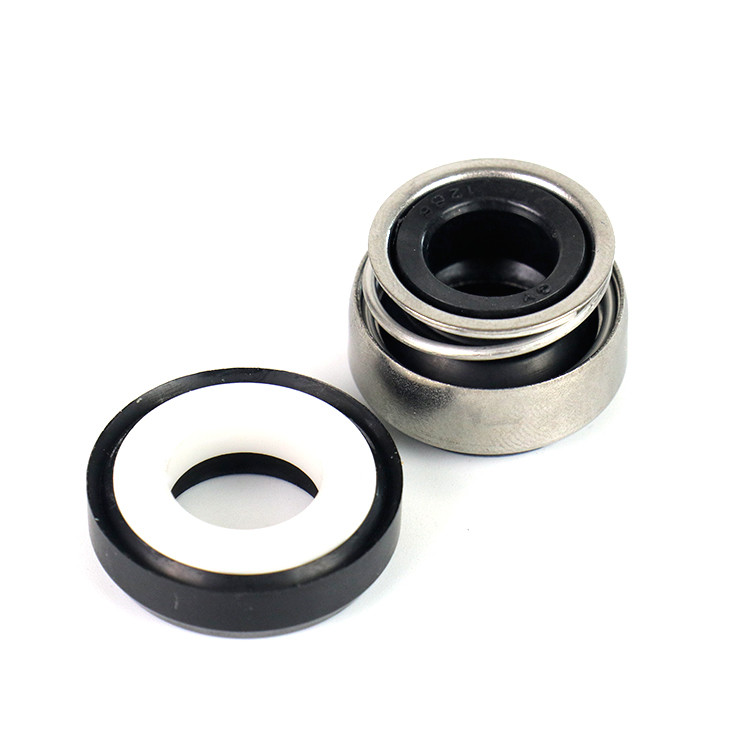

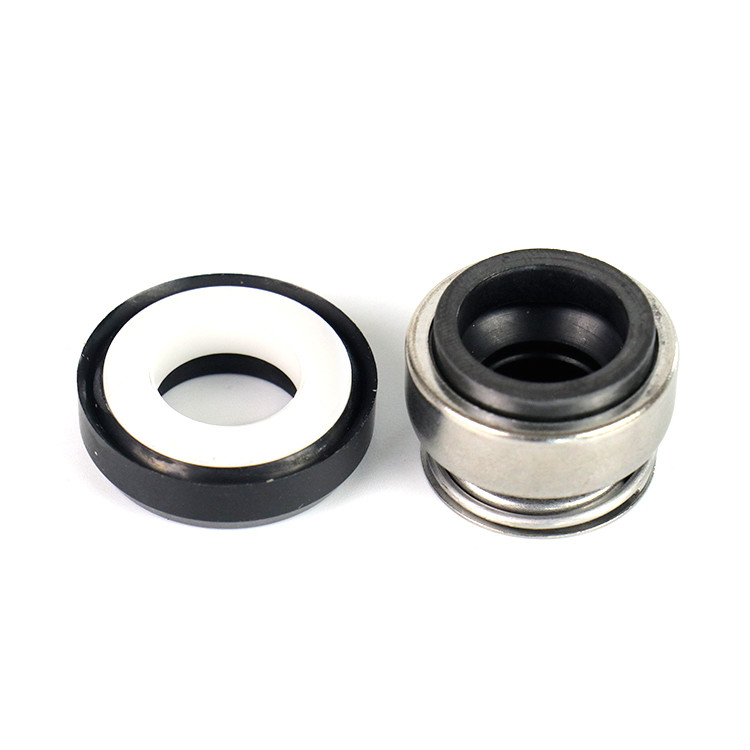

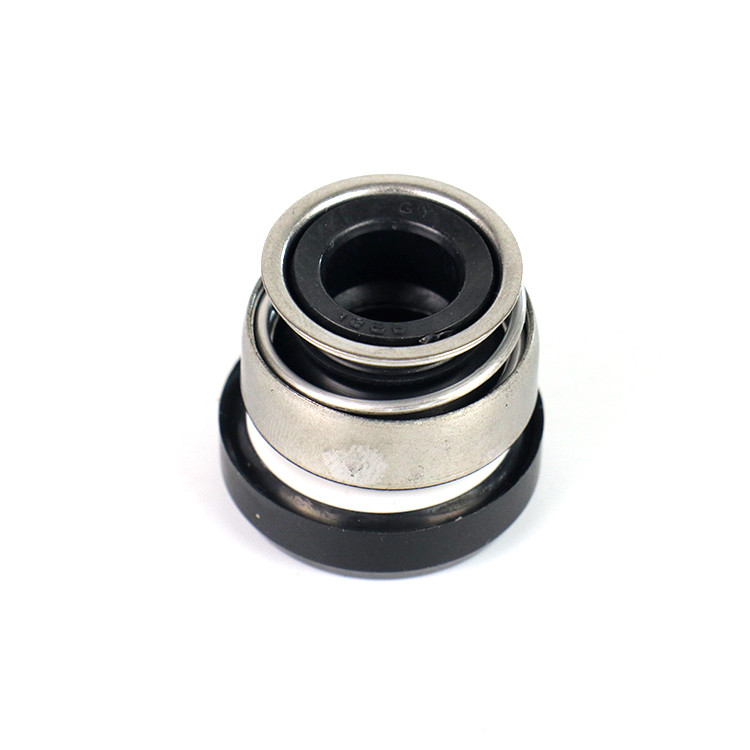

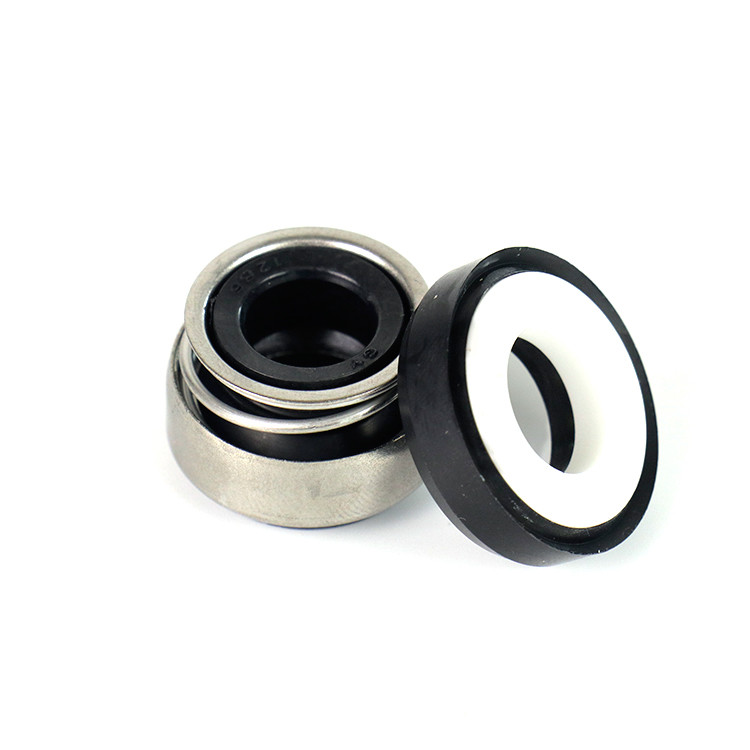

301 series mechanical seal for water pump

Operating limits

- Pressure: ≤ 0.5MPa
- Temperature: -20~100℃
- Speeds: ≤10m/sec

Applications

They were used in water pumps, circulation pumps.

Materials(to DIN24960)

- Rotating Ring: Carbon, Sic, T.C.
- Stationary Ring: Ceramic, Sic, T.C.
- Auxiliary seal: NBR, Viton, EPDM
- Spring and Other Parts: SUS304, SUS316, S.S.

You should select materials according to operating conditions.

Medium

Average corrosive mediums, such as water, oil, etc.

Burgmann Mechanical Seal For Water Pump 301-12 Advantages:


1)Pump type: mechanical seal for water pump 301-12
2)Our high-quality Burgmann Mechanical Seal can replace the original seals
3)The standard is according to Din24960ISO3069, EN12576, API682
4)OEM small order is available
5)Factory supplying with low price and fast shipping time
Product name
Burgmann Mechanical Seal For Water Pump 301-12
Material
car/sic/vit, car/sic/Nbr, SUS / Silicon carbide / FKM
Size
12mm
Application
water pump, mixers, chemical equipment
Keywords
mechanical seal for water pump
Temperature
-30℃ ~ 200℃
Pressure
≤0.6MPa
Speed
≤10m/s
Stationary Ring
Ceramic/Sic
Rotary Ring
Carbon/Sic
Secondary Seal
NBR/EPDM/Vit
Spring and Metal Part
Stainless Steel



Size Information

Model
d1
d3
D7
L1
L3
L4
ZZ 301-6
6
18
22
15
11
4
ZZ 301-8
8
18
22
15
11
4
Z.Z. 301-8L
8
24
26
19
11
8
ZZ 301-9
9
24
26
21
13
8
ZZ 301-10
10
24
26
21
13
8
ZZ 301-11
11
24
26
21
13
8
ZZ 301-12
12
24
26
21
13
8
ZZ 301-13
13
24
26
18.5
13
8/5.5
ZZ 301-14P
14
27.5
28/28.5
21
13
8
ZZ 301-14
14
32
29.5
21
13/13.5
7.5/8
ZZ 301-15P
15
27.5
30
21
13
8
ZZ 301-15
15
32
29.5
21
13/13.5
7.5/8
ZZ 301-16P
16
27.5
30
21
13
8
ZZ 301-16
16
32
29.5
21
13/13.5
7.5/8
ZZ 301-16L
16
39
38/42
21
13
8
ZZ 301-17
17
39
42
21
13
8
ZZ 301-18
18
39
42
21
13
8
ZZ 301-19
19
39
42
21
13
8
ZZ 301-20P
20
35
38
21
13
8
ZZ 301-20
20
39
42
21
13
8
ZZ 301-20L
20
42
45
23
13
10
ZZ 301-22P
22
39
42
21
13
8
ZZ 301-22
22
42
45
23
13
10
ZZ 301-23
23
47
50
23.5
13.5
10
ZZ 301-24
24
47
50
23.5
13.5
10
Z.Z. 301-25P
25
42
45
23
13
10
ZZ 301-25
25
47
50
23.5
13.5
10
ZZ 301-26
26
47
50
23.5
13.5
10
ZZ 301-27
27
47
50
23.5
13.5
10
ZZ 301-28
28
54
57
25
15
10
ZZ 301-30
30
54
57
25
15
10
ZZ 301-32
32
54
57
25
15
10
ZZ 301-35
35
60
63
26
16
10
ZZ 301-38
38
65
68
30
18
12
ZZ 301-40
40
65
68
30
18
12
ZZ 301-45
45
70
73
32
20
12
ZZ 301-50
50
85
88
38
23
15
ZZ 301-55
55
85
88
38
23
15
ZZ 301-60
60
105
110
45
30
15
ZZ 301-65
65
105
110
45
30
15
ZZ 301-70
70
105
110
47
32
15



Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump 0

Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump 1

Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump 2

Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump 3

Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump 4

Carbon Ceramic NBR 0.5MPa Electric Engine Water Pump 5



Electric Motor Water Pump  Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pumps and motors in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about the delivery time?
Usually, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air, and By express delivery.
Q6 About sample?
Available.
