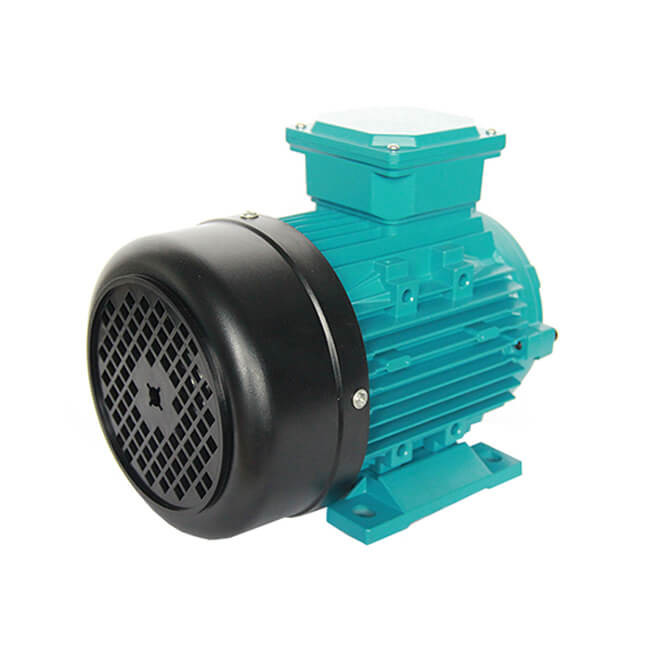

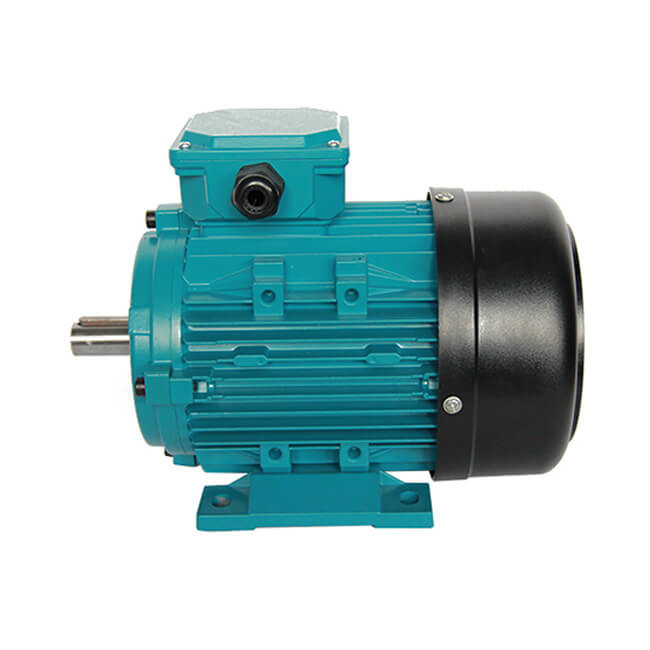

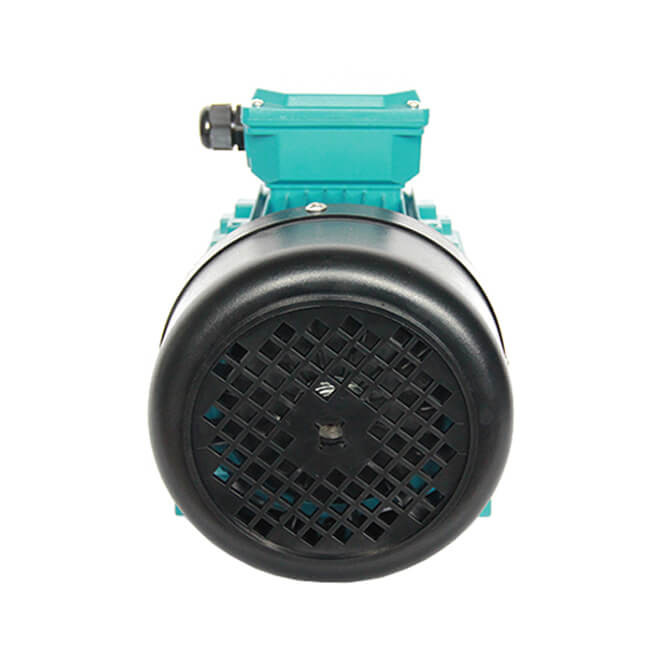

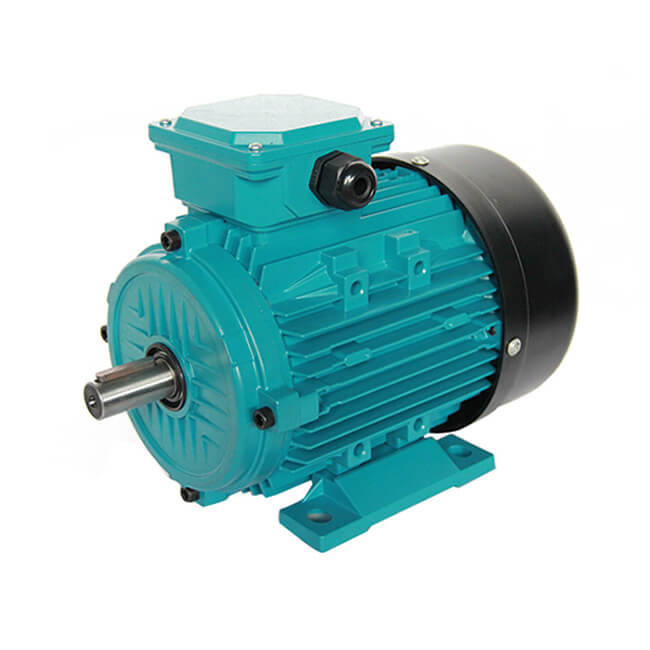

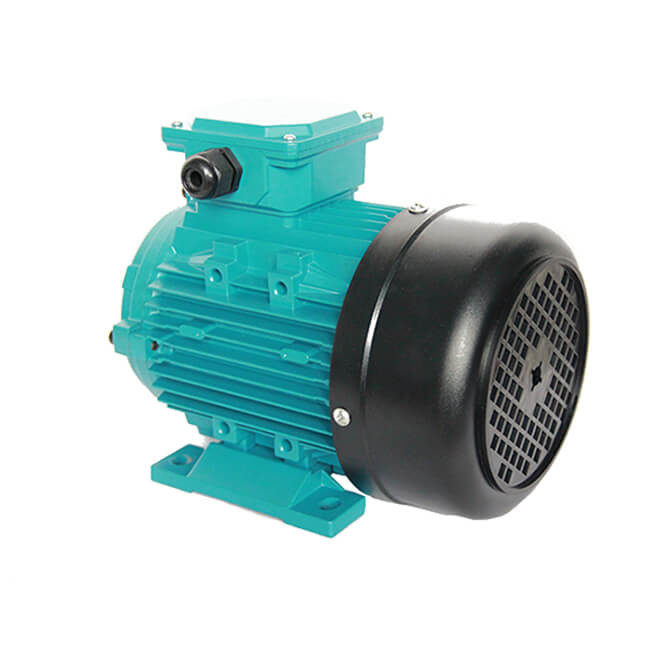

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2
0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2

Large Image :  0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE
Model Number: MS-801-2 IE2 1HP/0.75KW IE2
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD piece
Packaging Details: Plywood box
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 piece per month
Detailed Product Description
Power: 1HP/0.75KW Application: Industry Machine
Voltage: 230/400v Warranty: One Year
Material: Aluminum Product Name: Electric Motor Water Pump
Color: Customer Specifications Motor: Three Phase
Feature: High Efficiency Duty Cycle: Continuous
Frequency: 50HZ 60 Hz Oem: Availiable
High Light:

0.75KW Electric Motor Water Pump

,

EFF2 Electric Motor Water Pump

,

IE2 Electric Engine Water Pump



MS-801-2 IE2 1HP 0.75KW Electric Motor Water Pump

Electric Motor Water Pump Product Description



 Electric Motor Water Pump​ Description

1.MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high-quality material and are conforms to the IEC standard in function, appearance, output, and other requirements.
2.The efficiency of MS motor meets EFF2 standard in E. U. and can reach the EFF1 standard if requested. MS motor has many advantages, including high efficiency, energy saving, low noise, little vibration, lightweight, small volume, reliable operation, up-to-date appearance, convenient operation, and maintenance.
3.MS motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for MS motors.
4.MS motor is suitable for common working environments and machinery without special requirements, like air-compressors, pumps, fans, medical apparatus and instruments, small machines, etc.



Electric Motor Water Pump Operating Conditions

Ambient temperature : -15°C≤θ≤40°C

Altitude: not exceed 1000m

Rated frequency: 50Hz,60Hz

Rated voltage:380V, Between 220V and 760V

Protection class: IP54, IP55

Insulation class: B, F, H

Cooling method: IC0141



Electric Motor Water Pump TECHNICAL DATA:

Model Output Voltage Frequency Current Eff Power Factor  Speed
(KW) (V) (Hz) (A) 100 75 (r/min)
        (%) (%)
MS631-2 0.18 380 50 0.53 65 63.1 0.8 2720
MS632-2 0.25 380 50 0.69 68 65.1 0.81 2720
MS631-4 0.12 380 50 0.42 57 56.1 0.72 1310
MS632-4 0.18 380 50 0.62 60 58.5 0.73 1310
MS711-2 0.37 380 50 0.99 70 69 0.81 2740
MS712-2 0.55 380 50 1.4 73 71.2 0.82 2740
MS711-4 0.25 380 50 0.79 65 62.4 0.74 1330
MS712-4 0.37 380 50 1.12 67 65.3 0.75 1330
MS801-2 0.75 380 50 1.78 76.3 74.3 0.84 2836
MS802-2 1.1 380 50 2.56 77.8 75.9 0.84 2840
MS801-4 0.55 380 50 1.52 71.4 69.5 0.76 1410
MS802-4 0.75 380 50 2 73.8 72.1 0.77 1415
MS90S-2 1.5 380 50 3.43 79.1 77.2 0.84 2840
MS90L-2 2.2 380 50 4.85 81 80 0.75 2840
MS90S-4 1.1 380 50 2.86 75.8 73.8 0.77 1425
MS90L-4 1.5 380 50 3.69 78.3 76.1 0.79 1425
MS90S-6 0.75 380 50 2.28 69.3 67.6 0.72 918
MS90L-6 1.1 380 50 3.16 72.5 70 0.73 920
MS100L-2 3 380 50 6.3 83.2 81.9 0.87 2845
MS100L1-4 2.2 380 50 5.12 80.6 78 0.81 1430
MS100L2-4 3 380 50 6.62 82.3 80 0.82 1430
MS100L-6 1.5 380 50 3.98 76.4 74.1 0.75 940
MS100L1-8 0.75 380 50 2.39 71.2 67 0.67 698
MS100L2-8 1.1 380 50 3.32 73 69 0.69 700
MS112M-2 4 380 50 8.1 85.2 84 0.88 2890
MS112M-4 4 380 50 8.79 84.3 82.9 0.82 1440
MS112M-6 2.2 380 50 5.53 79.6 77.3 0.76 975
MS112M-8 1.5 380 50 4.39 75.2 73.8 0.69 705
MS132S1-2 5.5 380 50 11 86 84 0.88 2890
MS132S2-2 7.5 380 50 14.9 87.2 85.8 0.88 2890
MS132S-4 5.5 380 50 11.8 85.5 83 0.83 1450
MS132M-4 7.5 380 50 15.6 87.1 84 0.84 1455
MS132S-6 3 380 50 7.36 81.5 79 0.76 953
MS132M1-6 4 380 50 9.66 82.9 80.2 0.76 955
MS132M2-6 5.5 380 50 12.9 84.6 82.1 0.77 960
MS132S-8 2.2 380 50 6 78.2 77 0.71 710
MS132M-8 3 380 50 7.86 79.4 78.4 0.73 710


Product Description

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 0

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 1

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 2

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 3

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 4

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 5

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 6





0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 7

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 8

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 9

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 10

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 11

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 12



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

0.75KW Electric Motor Water Pump MS-801-2 IE2 1HP EFF2 13

Electric Motor Water Pump

FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pumps and motors in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about the delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air, and By express delivery.
Q6 About sample?
Available.
