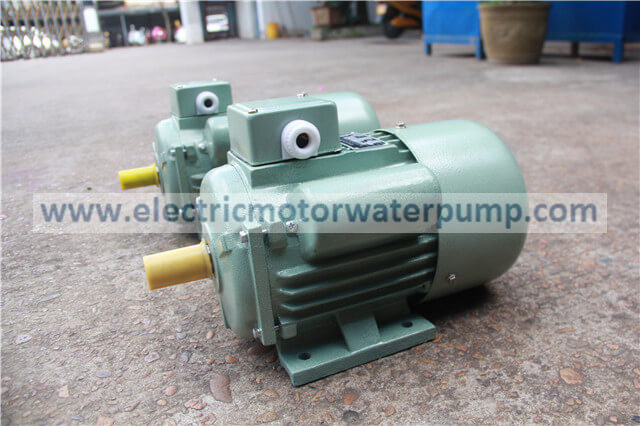

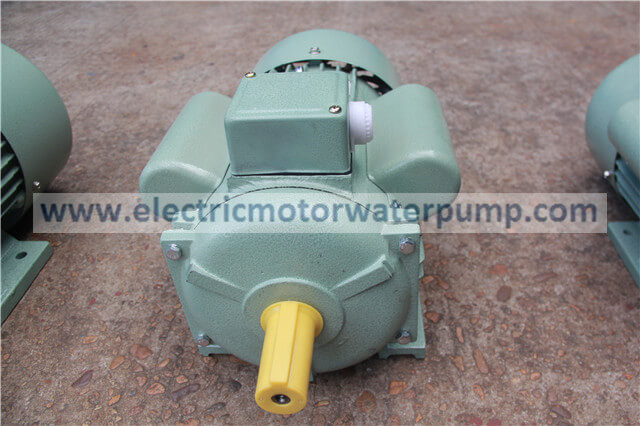

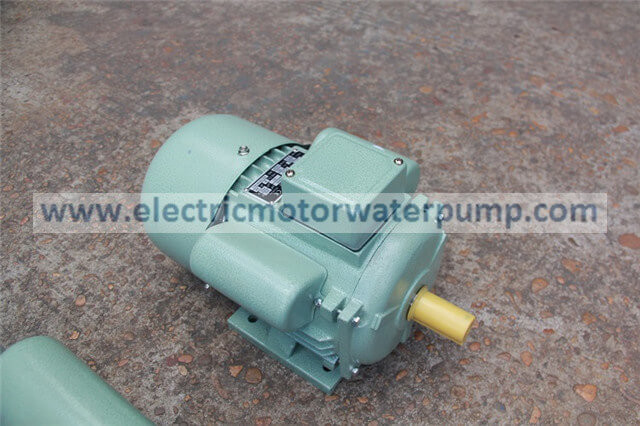

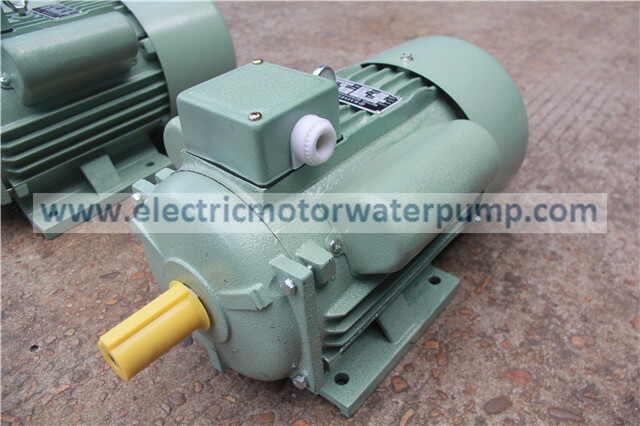

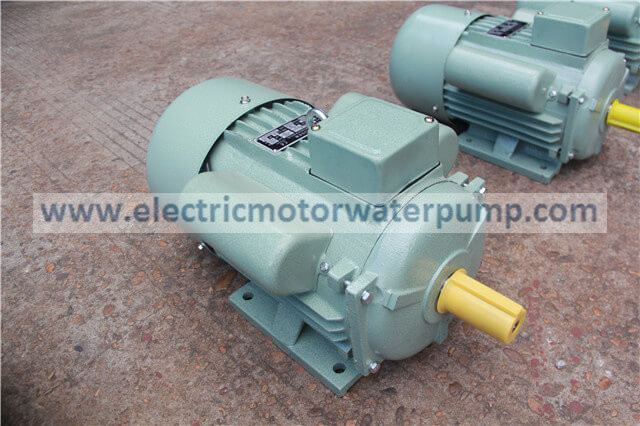

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase
4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase

Large Image :  4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE
Model Number: YC112M1-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD piece
Packaging Details: Plywood box
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 piece per month
Detailed Product Description
Power: 3kw Application: Industry Machine
Voltage: 220V-240V Warranty: One Year
Material: Cast Iron/Stainless Steel Product Name: Electric Motor Water Pump
Color: Customer Specifications Motor: Single Phase
Feature: High Efficiency Duty Cycle: Continuous
Frequency: 50HZ 60 Hz Oem: Availiable
High Light:

4HP Electric Ac Asynchronous Motors

,

Cast Iron Ac Asynchronous Motors

,

3KW Single Phase Water Pump



4HP Electric Ac Asynchronous Motors 220V 3KW

Electric Motor Water Pump Product Description
High-Efficiency AC motor
Productor name AC motor Good after-sales service is the root of enterprise survival. Win-Win cooperation
Color Customizable
Material CAST IRON
Function  These motors also concentrate on the advantages of large starting torque, smooth turning, low-temperature rise, low noise, and great overload performance.
Applicable They are suitable for powering small types of drilling machines and water pumps, especially for family workshops where only a single-phase current supply is available.
Type Rated Power Voltage(V) Frequency(HZ) Rated Current(A) Rated Speed(r/min) Efficiency(%) Power Factor(CosΦ)
KW HP
YC80A-2 0.37  1/2 220 50 3.7 2880 62 0.73
YC80B-2 0.55  3/4 220 50 5.3 2880 65 0.73
YC80C-2 0.75 1.0  220 50 6.7 2880 68 0.75
YC90S-2 1.1 1.5  220 50 9.1 2880 71 0.77
YC90L-2 1.5 2.0  220 50 12.1 2880 72 0.78
YC100L-2 2.2 3.0  220 50 17.1 2900 74 0.79
YC112M1-2 3 4.0  220 50 21.4 2900 76 0.84
YC112M2-2 3.7 5.0  220 50 24.8 1450 79 0.86
YC80A-4 0.25  1/3 220 50 3.4 1450 56 0.6
YC80B-4 0.37  1/2 220 50 4.5 1450 60 0.62
YC80C-4 0.55  3/4 220 50 6 1450 64 0.65
YC90S-4 0.75 1.0  220 50 7.7 1450 67 0.66
YC90L-4 1.1 1.5  220 50 10.5 1450 70 0.68
YC100L-4 1.5 2.0  220 50 13.5 1450 72 0.7
YC112M-4 2.2 3.0  220 50 19.3 1450 72 0.72
YC132SA-4 3 4.0  220 50 25.2 1450 74 0.73
YC132SB-4 3.7 5.0  220 50 30 1450 75 0.74
YC132M-4 5.5 7.5  220 50 32.5 1450 81 0.95
Mounting And Overall Dimensions
Frame size  Mounting Dimensions Overall Dimensions
A B C D E F G H K M N P R S T AB AC AE AD HD L
YC80 125 100 50 19 40 6 15.5 80 10 165 130 200 0 12 3.5 160 165 110 120 200 310
YC90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 185 120 140 240 355
YC90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 185 120 140 240 385
YC100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 220 130 145 260 415
YC112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 245 250 140 160 300 448
YC132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 280 262 150 210 350 470
YC132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 280 262 150 210 350 553



4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 0



Electric Motor Water Pump Product Description



YC SERIES SINGLE-PHASE ELECTRIC MOTOR SPECIFICATION TABLE

 YC TECHNICAL DATA
Type Power (kw) Current  (A) @220V Speed (r/min)
3000rpm, 2-pole,50hz
YC80A-2 0.37 3.5 2880
YC80B-2 0.55 5.1 2880
YC80C-2 0.75 6.4 2880
YC90S-2 1.1 8.7 2880
YC90L-2 1.5 11.6 2900
YC100-2 2.2 16.4 2900
1500rpm, 4-pole,50hz
YC80A-4 0.25 3.3 1450
YC80B-4 0.37 4.3 1450
YC80C-4 0.55 5.7 1450
YC90S-4 0.75 7.4 1450
YC90L-4 1.1 10 1450
YC100L-4 1.5 12.9 1450
YC112M-4 2.2 18.5 1450
YC132SA-4 3.0 24.1 1450
YC132SB-4 3.7 28.7 1450




4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 1

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 2

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 3

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 4

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 5

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 6

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 7

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 8

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 9

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 10

4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 11



Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase 12



FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pumps and motors in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about the delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air, and By express delivery.
Q6 About sample?
Available.
