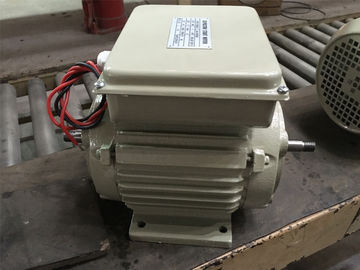

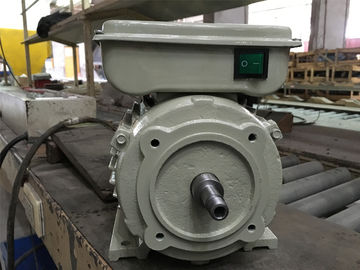

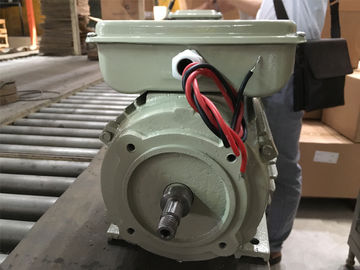

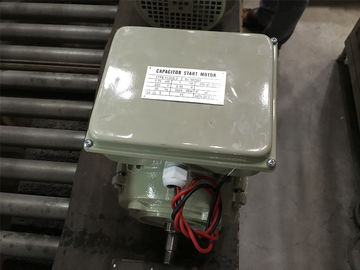

Stainless Steel Electric Motor Water Pump IC0141 3HP 220V YC100L-2 low noise
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 2.2KW | Application | Industry Machine |
|---|---|---|---|
| Standard Or Nonstandard | Standard | Warranty | One Year |
| Material | Cast Iron/Stainless Steel | Product Name | Electric Motor Water Pump |
| Color | Customer Specifications | Motor | Single Phase |
| Feature | High Efficiency | Duty Cycle | Continuous |
| Frequency | 50HZ 60 Hz | Oem | Availiable |
| Highlight | Stainless Steel Electric Motor Water Pump,IC0141 Electric Motor Water Pump,Low Noise Single Phase Electric Motor |
||
Product Description
YC100L-2 Electric Motor Water Pump 3HP 220V
Electric Motor Water Pump Product Description
YC series motors are totally enclosed fan cooled (TEFC) heavy-duty single-phase induction motors. The mounting dimension is fully conformed with the IEC standard. When the rated output is 3HP or below, motors are capacitor start, and 4HP or above with capacitor start and run. YC series motors are integrated with up-to-date design, best quality materials construction, and possess the features of pleasant-looking appearance, outstanding performance, easy maintenance. They also concentrate on the advantages of high starting torque, smooth turning, low-temperature rise, low noise, and great overload performance. YC series motors are suitable for powering small types of drilling machines and water pumps, especially for family workshops where only a single-phase current supply is available.
Electric Motor Water Pump Product Description
YC SERIES SINGLE-PHASE ELECTRIC MOTOR SPECIFICATION TABLE
| YC TECHNICAL DATA | |||
| Type | Power (kw) | Current (A) @220V | Speed (r/min) |
| 3000rpm, 2-pole,50hz | |||
| YC80A-2 | 0.37 | 3.5 | 2880 |
| YC80B-2 | 0.55 | 5.1 | 2880 |
| YC80C-2 | 0.75 | 6.4 | 2880 |
| YC90S-2 | 1.1 | 8.7 | 2880 |
| YC90L-2 | 1.5 | 11.6 | 2900 |
| YC100-2 | 2.2 | 16.4 | 2900 |
| 1500rpm, 4-pole,50hz | |||
| YC80A-4 | 0.25 | 3.3 | 1450 |
| YC80B-4 | 0.37 | 4.3 | 1450 |
| YC80C-4 | 0.55 | 5.7 | 1450 |
| YC90S-4 | 0.75 | 7.4 | 1450 |
| YC90L-4 | 1.1 | 10 | 1450 |
| YC100L-4 | 1.5 | 12.9 | 1450 |
| YC112M-4 | 2.2 | 18.5 | 1450 |
| YC132SA-4 | 3.0 | 24.1 | 1450 |
| YC132SB-4 | 3.7 | 28.7 | 1450 |
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pumps and motors in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about the delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air, and By express delivery.
Q6 About sample?
Available.
