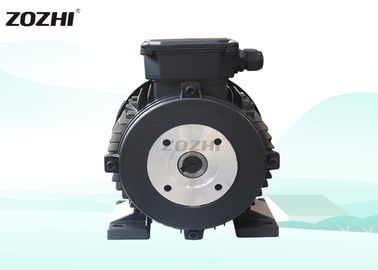

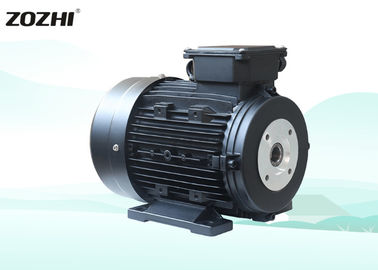

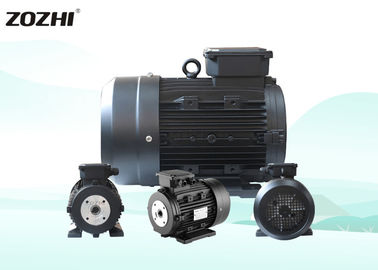

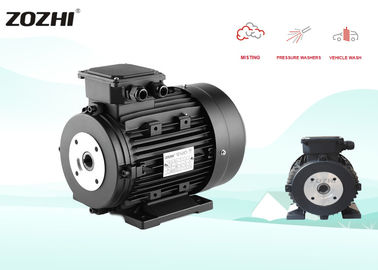

Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm

  • Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm
  • Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm
  • Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm
  • Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm
  • Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 132S1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 7.5kw/10hp
Speed 1400rpm Shaft 24mm
Frame 160 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

Waterproof Hollow Shaft Motor, Aluminum 3 Phase Electric Motor B3 Foot 1400rpm

Hollow Shaft Motor

24mm Hollow Shafat Electric Motor

Model 132S1-4

Output 7.5KW/10HP

Three Phase  4pole

1400RPM B3 Foot Mount

Class F

IP54 IP55

High-efficiency

Dustproof and waterproof

low noise and low vibration





50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm 0


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



Application

www.electricmotorwaterpump.com



Production line

hollow shaft electric motor

Exhibition

hollow shaft electric motor

Our Service

Waterproof Hollow Shaft Motor , Aluminum 3 Phase Electric Motor B3 Foot 1400rpm 4



Industry Information:



Can the motor efficiency be directly judged from the magnitude of the motor current?



Making customers genuinely feel the energy-saving effect of high-efficiency motors is reflected through the most intuitive data. The driving force behind the pursuit of high efficiency is how to maximize profits. By comparing the power consumption in the current period with the actual work completed within the specified time, the corresponding power consumption under the same workload condition, the power consumption of the high-efficiency motor is less than that of the ordinary motor. We attribute this to "saving, "which is the essence of high-efficiency motor characteristics.

We can refer to the above analysis and discussion to help customers improve their ability to rationally analyze and judge the energy-saving effects of high-efficiency motors, get rid of the entanglement between motor current and efficiency, recognize motors and make good use of motors.
