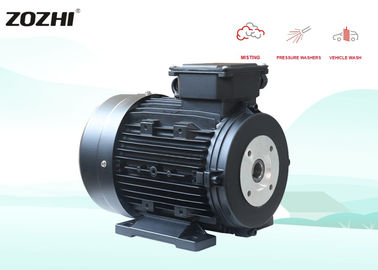

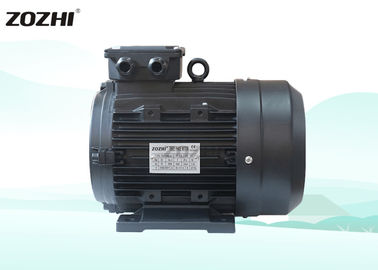

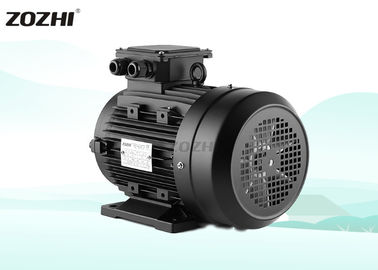

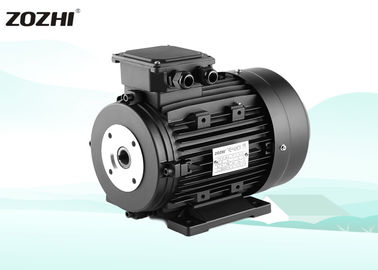

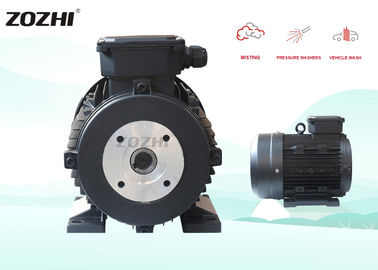

Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum

China Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum supplier

Large Image :  Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 112M2-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Hollow Shaft Motor Voltage: 230V
Phase: Single Phase Output: 5hp/3.7kw
Speed: 1400rpm Shaft: 24mm
Frame: 90 Material: Die Cast Aluminum
Pole: 4 Insulation: Class F
Protection: IP55 Installation: B3 B5 B14 B34 B35
IEC Standard: IE1 Application: Cleaning Machine / Pressure Washer Machine
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

Low Rpm AC Three Phase Electric Motor Hollow Shaft Electric Motor 3.7kw/5hp

Hollow shaft electric motor

high starting torque

380 Voltage rating, frequency 60HZ

low noise level and vibration, compact structure, and easy maintenance

F insulation, class B

IEC standard

Aluminum housing



50Hz Electric Motor - B3 - Hollow shaft - Single Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F. UF V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22

Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum 0

FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
90 90mm 90L RC
100 90mm 100L RC - RR - RS - XT NHD - NHDP
112 61/90mm 112M XM - RK - RS-RC - RR



www.electricmotorwaterpump.com



Our Service



1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for the quality prior to shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet
