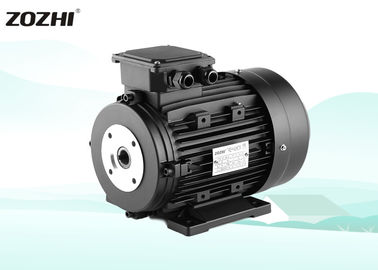

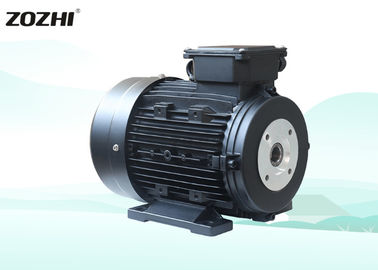

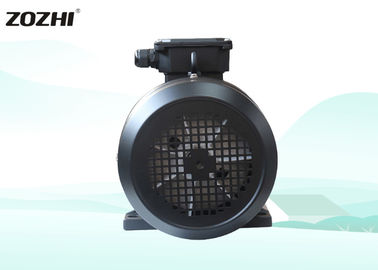

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine

  • 24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
  • 24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
  • 24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
  • 24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
  • 24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 160M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 18.5kw/25hp
Speed 1400rpm Shaft 24mm
Frame 160 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

50Hz hollow shaft motor
Leave a Message
Product Description

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine

Hollow Shaft Motor

Enclosed ordinary since the fan cooling squirrel-cage three-phase hollow shaft asynchronous motor. This series of motor power ratings, the installation dimensions are in line with the international electrotechnical commission standard (IFE), is advantageous to the export of equipment and the introduction of a complete set of spare parts.



Full copper wire national standard motor

Cold rolled 800# silicon steel sheet

Intelligent finishing

Stainless steel seamless deep stretching fume collection cavity and the smoke cage effect are better.

C&U bearing high strength carbon steel material ensures the service life of the motor dustproof effect.



400 - Volts

Three Phase 50 Hz

25 hp / 18.5 kW

Speed-1400 rpm 4pole

Inner Shaft - 24mm Female Hollow

IEC 160M2 Frame - B3 Foot Mount

Die-cast aluminum housing

Rated to IP55

Insulation: F

For Cleaning Machine



50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine 0


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



Application

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine 1
