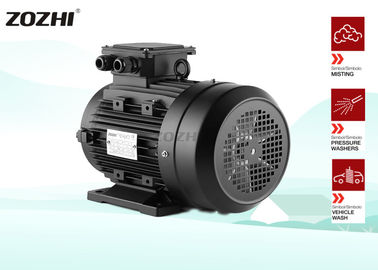

CCC 100% Copper Wire Three Phase Induction Motor 230/400V IP55 For Hawk / AR Pump

  • CCC 100% Copper Wire Three Phase Induction Motor 230/400V IP55 For Hawk / AR Pump
  • CCC 100% Copper Wire Three Phase Induction Motor 230/400V IP55 For Hawk / AR Pump
  • CCC 100% Copper Wire Three Phase Induction Motor 230/400V IP55 For Hawk / AR Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 160M1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 15kw/20hp
Speed 1400rpm Shaft 24mm
Frame 160 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

AR Pump Hollow Shaft Induction Motor
Leave a Message
Product Description

CCC 100% Copper Wire Three Phase Induction Motor 230/400V IP55 For Hawk / AR Pump

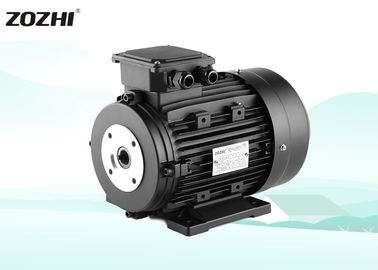

Hollow Shaft Motor

1) Three-phase Hollow Shaft Induction Motor
2)100% copper wire and 100% silicon steel
3)CE,CCC,ISO certificate
4)OEM approve



Enclosed fan cooled(TEFC), squirrel cage type three-phase induction motors developed with a new technique. Conformed with the IEC standard.



·The motors have the merits of beautiful modeling, compact structure, low noise, high efficiency, ample starting torque, easy serving, etc. According to international practice, the engines are adopted with F class insulation and designed with assessing methods for the insulation system, which significantly enhances the motor's safety and reliability. As a result, these motors reached an advanced international level in the1990s.


It can be widely used in AR PUMP, HAWK PUMP, INTERPUMP



50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

CCC 100% Copper Wire Three Phase Induction Motor 230/400V IP55 For Hawk / AR Pump 0


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP
