Female Hollow Shaft Motor Three Phase 1400Rpm IP55 24mm With ISO Certification

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 160M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 18.5kw/25hp
Speed 1400rpm Shaft 24mm
Frame 160 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

B3 Installation Hollow Shaft Motor

Leave a Message
Product Description

Female Hollow Shaft Motor Three Phase 1400Rpm IP55 24mm With ISO Certification

Hollow Shaft Motor

Hollow shaft series high-efficiency three-phase motors are high-efficiency energy-saving motors. The efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade' grade 2 efficiency standard, according to the IEC standard's IE2/EFF1 efficiency index. Our production advanced in domestic and reached an advanced level in international. As a result, we are on top of the name list to get the China certification for energy conservation products.



400 - Volts

Three Phase 50 Hz

25 hp / 18.5 kW

Speed-1400 rpm 4pole

Inner Shaft - 24mm Female Hollow

IEC 160M2 Frame - B3 Foot Mount

Die-cast aluminum housing

Rated to IP55

Insulation: F

For Cleaning Machine



50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

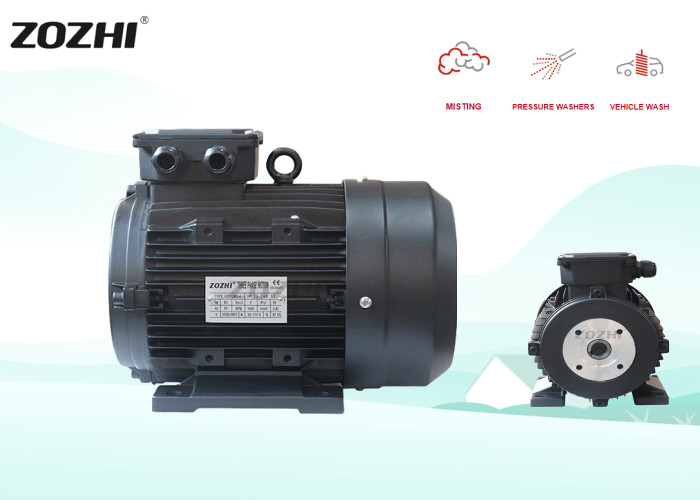

Female Hollow Shaft Motor Three Phase 1400Rpm IP55 24mm With ISO Certification 0



FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



Application

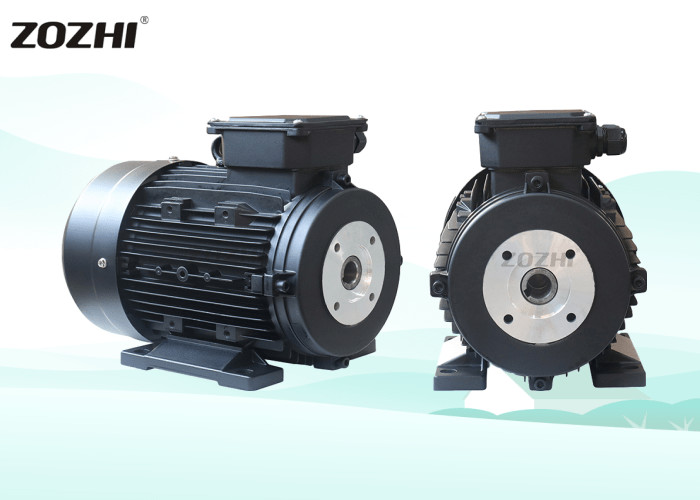

Female Hollow Shaft Motor Three Phase 1400Rpm IP55 24mm With ISO Certification 1
