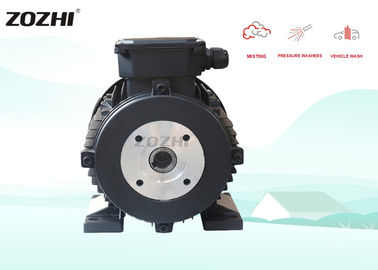

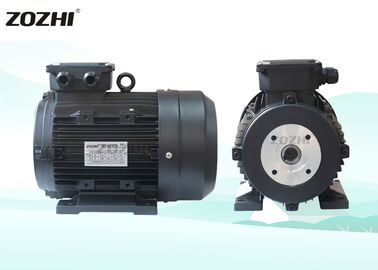

5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump

  • 5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump
  • 5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump
  • 5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 5.5kw/7.5hp
Speed 1400rpm Shaft 24mm
Frame 100 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

Copper Winding hollow shaft electric motor
Leave a Message
Product Description

5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump

Hollow Shaft Motor

  • 1. Power: 5.5kW

    2. Speed: 1450rpm

    3. Standard: IEC60034

    4. Certification: ISO9001,CE,CCC

    Product Name
    5.5kw/7.5hp hollow shaft electric motor for washer pump
    Material
    Copper Winding, Aluminum Housing.
    Color
    According to your request.
    Used
    Industry machinery, Agriculture Machinery, Pump Equipment, Booster system

www.electricmotorwaterpump.com



50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump 1


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump 2

5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump 3

5.5kw/7.5kw Hollow Shaft Motor Copper Winding Aluminum Housing For Washer Pump 4
