HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole

  • HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole
  • HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole
  • HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 5.5kw/7.5hp
Speed 1400rpm Shaft 24mm
Frame 112 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

B3 Hollow Shaft Motor
Leave a Message
Product Description

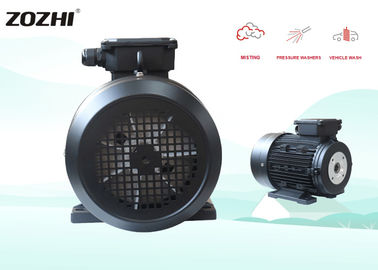

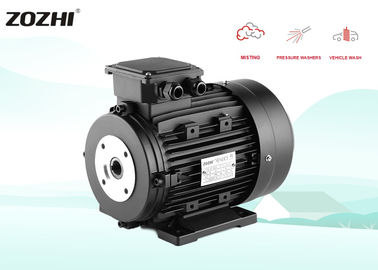

HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole

Hollow Shaft Motor

Feature :



1. ISO9001, C.E. Approval

2. High Efficiency and Energy Saving
3. Durable, Safe and Convenient
4. Factory Price, OEM
5. Best Service, Quality First

6. Very Low Power Consumption

7. Easy Operation and Maintenance



Description :



400 - Volts

Three Phase 50 Hz

7.5 hp / 5.5 kW

1400 rpm 4pole

24mm Female Hollow Shaft

Frame - 112M

Aluminum housing

Weight -  33kg

For Interpump Series 47/66



OPERATING CONDITIONS:

Ambient temperature: -15°C≤θ≤40°C

Altitude: not exceed 1000m

Rated voltage:380V

Rated frequency: 50Hz, 60Hz

Protection: the main body of the motor is IP54, but

The terminal box reaches IP55

Insulation class:F,H

Cooling method: IC0141

Duty: S1(continuous)







50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole 0http://www.electricmotorwaterpump.com/supplier-155888-hollow-shaft-motor


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP

HS 3 Phase Induction Hollow Shaft Motor, ElectricAC Motor 380V 7.5hp 4 Pole 1



OUR FACTORY ADVANTAGES:

1. Prompt Quotation.

2. Timely Delivery.

3.100% Tested.

4. Most Spare Parts are Produced By Ourselves.

5. Strictly and Perfect Management is Guaranteed For Production.

6. Have the Ability To Design The Products Based On Your Original Samples.
