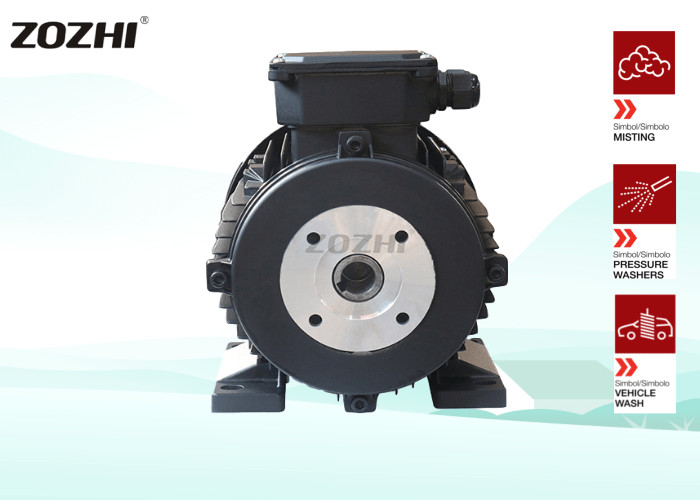

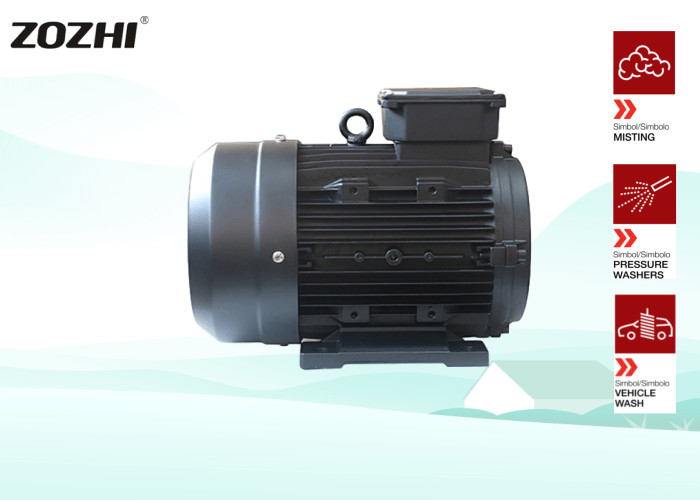

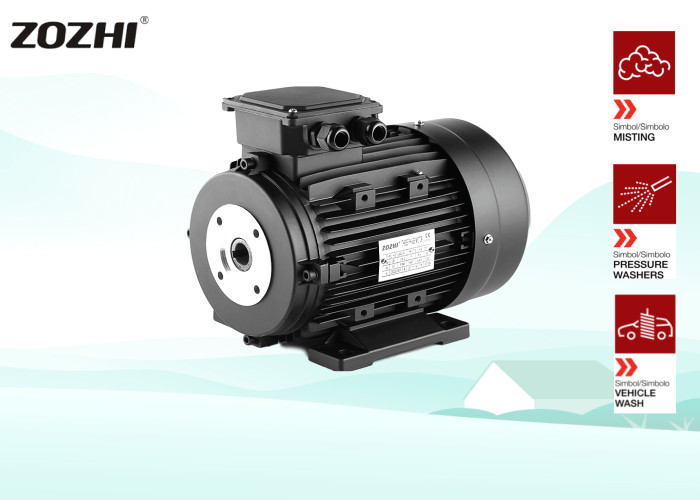

Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing

  • Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing
  • Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing
  • Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230/400V
Phase Three Phase Output 5.5kw/7.5hp
Speed 1400rpm Shaft 24mm
Frame 100 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

Aluminum Housing Hollow Shaft Motor
Leave a Message
Product Description

Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing



Hollow Shaft Motor

  • with aluminum housing is Enclosed Fan Cooled (TEFC)
    with IP55 environmental protection,
    and applicable for cleaning machine use.

    These motors are designed and manufactured following ISO and IEC standards.
    By switching to the H.S. series motor, customers can save up to 10 % energy!
  • Frame material: aluminum.
  • Standard color: black
  • Available in 2, 4, 6 pole motor
  • Optimized compact style construction.
  • Standard mounting construction   B3, B14 B5, B34 B35
  • All motors are designed to IP55 degree of protection



50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing 0


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP



Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing 1

hollow shaft electric motor

Hollow Shaft Three Phase Induction Motor 1400 Rpm Die Cast Aluminum Housing 3
